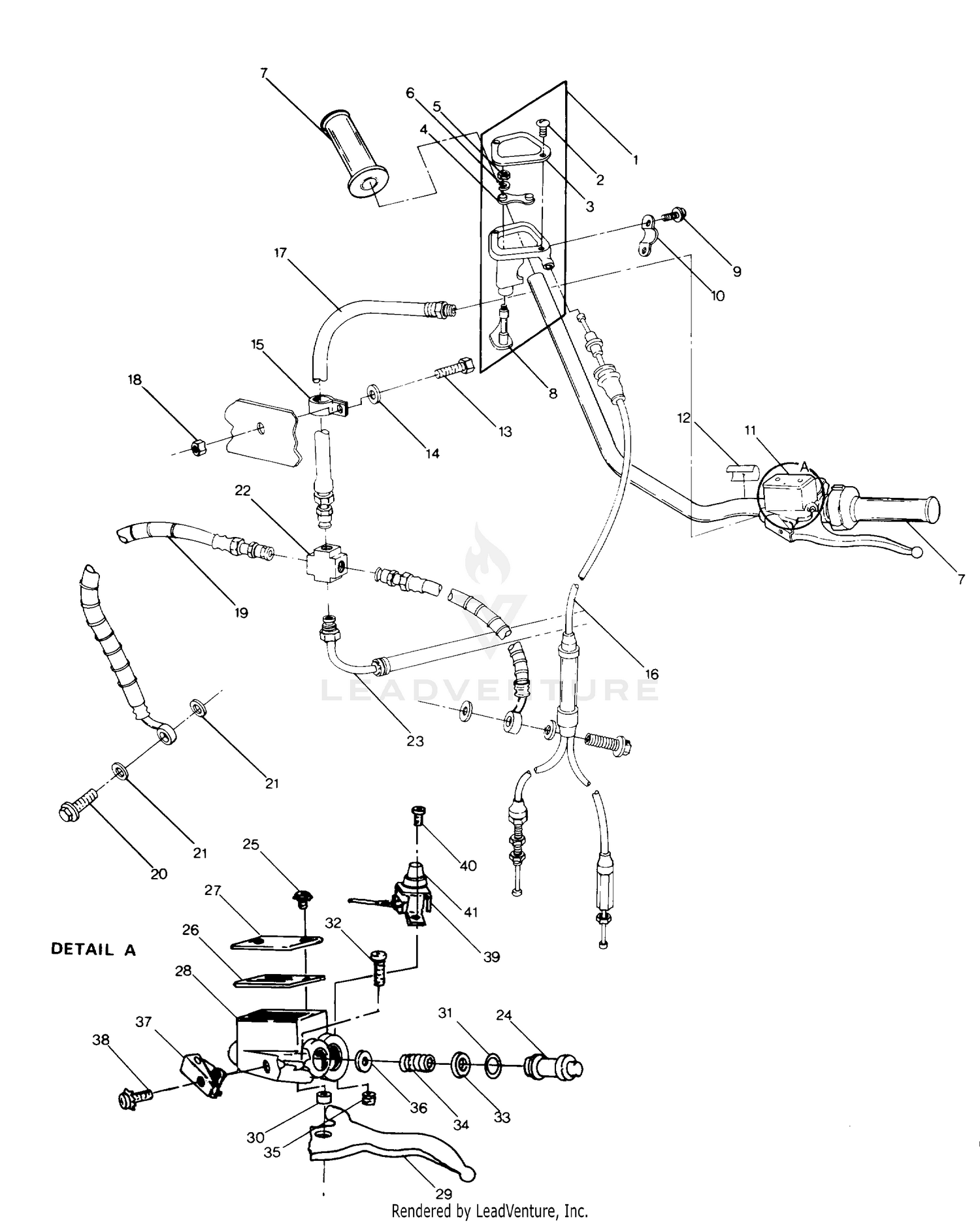

Hand Control Cable Assembly (4913511351013a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER,THROTTLE ASM. [No Longer Available]
2010045
|
|||
|
Unavailable |
|||
|
#2
SCREW
2010054
|
|||
|
Unavailable |
|||
|
#3
COVER,THROTTLE CONTROL
5430804
|
|||
|
Unavailable |
|||
|
#4
ARM
2010051
|
|||
|
Unavailable |
|||
|
#5
NUT
2010053
|
|||
|
Unavailable |
|||
|
#6
WASHER [No Longer Available]
2010052
|
|||
|
Unavailable |
|||
|
#7
Grip, Handlebar
5410416
Superseded by 5433834-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER
2010049
|
|||
|
Unavailable |
|||
|
#9
SCREW&WASHER
2010047
|
|||
|
Unavailable |
|||
|
#10
HOLDER,LEVER,LOW.1
2050005
|
|||
|
Unavailable |
|||
|
#11
MASTER CYLINDER
1930622
Superseded by 2050073
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DECAL,O'RIDE SWITCH Substituted by 7076274
7072390
|
|||
|
Unavailable |
|||
|
#13
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP,RUBBER-COATED,.562(10)
7080347
Superseded by 7080573
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, THROTTLE
7080328
|
|||
|
Unavailable |
|||
|
#17
LINE,BRAKE,UPPER [No Longer Available]
1930620
|
|||
|
Unavailable |
|||
|
#18
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
LINE,BRAKE,LOWER
1930602
|
|||
|
Unavailable |
|||
|
#20
BOLT [No Longer Available]
5020487
|
|||
|
Unavailable |
|||
|
#21
SEAL
5410469
Superseded by 5413212
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FITTING, TEE
7052044
|
|||
|
Unavailable |
|||
|
#23
LINE,BRAKE,REAR
1930619
|
|||
|
Unavailable |
|||
|
#24
PISTON-BRAKE Substituted by 5020511
5020319
|
|||
|
Unavailable |
|||
|
#25
SCREW(10)
7511841
|
|||
|
Unavailable |
|||
|
#26
GASKET
5410487
|
|||
|
Unavailable |
|||
|
#27
COVER RESERVOIR
5630127
|
$47.39 | ||
|
Available to order. Add to View Price |
|||
|
#28
MASTER CYLINDER
5630312
Superseded by 2050073
|
$304.99 | ||
|
Unavailable |
|||
|
#29
LEVER, BRAKE
5610106
|
$35.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
BUSHING
5332892
|
|||
|
Unavailable |
|||
|
#31
O RING
5410163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW(10)
7511975
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
U PACKING SEAL
5410164
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING,COMPRESSION,(10)
7041067
Superseded by 7041203
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW,SET(10)
7512308
|
|||
|
Unavailable |
|||
|
#36
WASHER(10)
7555708
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRAKE LOCK ASM.
2050040
|
|||
|
Unavailable |
|||
|
#38
SCREW(10)
7511953
Superseded by 7512048
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRKT.,O'RIDE SW.
5220837
|
|||
|
Unavailable |
|||
|
#40
SCREW
7511857
|
|||
|
Unavailable |
|||
|
#41
SWITCH,OVERRIDE Substituted by 4110072
4110069
|
|||
|
Unavailable |
|||
