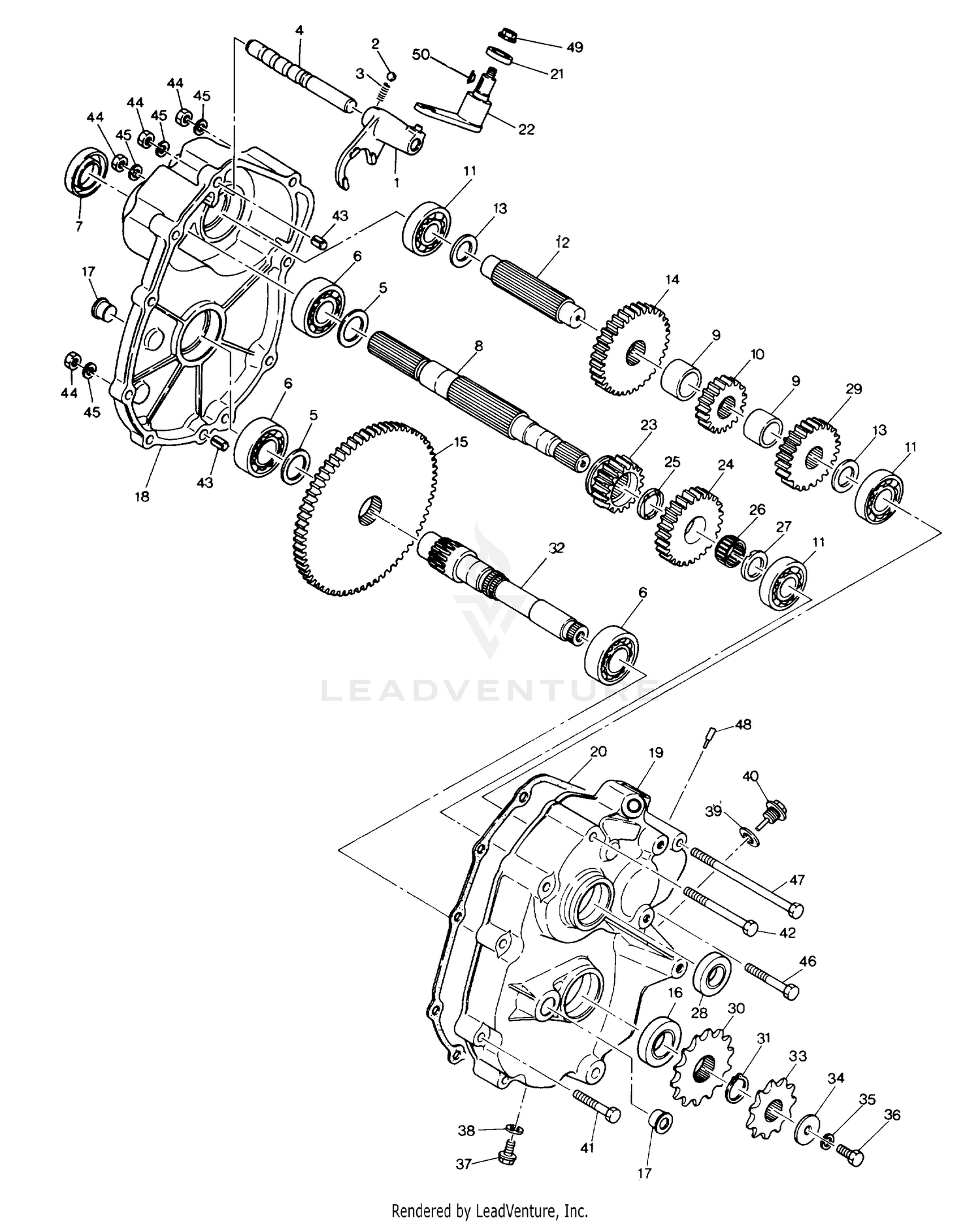

Gearcase Assembly (4913511351027a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFTER
3231501
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALL, STEEL
3231502
|
|||
|
Unavailable |
|||
|
#3
SPRING(10)
3231503
|
|||
|
Unavailable |
|||
|
#4
SHAFT, SHIFT
3231504
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
3231505
|
|||
|
Unavailable |
|||
|
#6
BEARING
3231506
|
|||
|
Unavailable |
|||
|
#7
SEAL, OIL
3231507
|
|||
|
Unavailable |
|||
|
#8
SHAFT,INPUT
3231508
|
$58.99 | ||
|
Unavailable |
|||
|
#9
COLLAR
3231509
|
|||
|
Unavailable |
|||
|
#10
GEAR
3231510
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
3231511
|
|||
|
Unavailable |
|||
|
#12
SHAFT
3231512
|
|||
|
Unavailable |
|||
|
#13
WASHER
3231513
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR
3231514
|
|||
|
Unavailable |
|||
|
#15
GEAR
3231515
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, OIL
3231516
|
|||
|
Unavailable |
|||
|
#17
SUPPORT
3231517
|
|||
|
Unavailable |
|||
|
#18
CASE, LH [No Longer Available]
3231518
|
|||
|
Unavailable |
|||
|
#19
CASE, RH [No Longer Available]
3231519
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PACKING
3231520
|
|||
|
Unavailable |
|||
|
#21
SEAL, OIL
3231521
|
|||
|
Unavailable |
|||
|
#22
SHAFT, SELECT [No Longer Available]
3231522
|
|||
|
Unavailable |
|||
|
#23
GEAR Substituted by 3231585
3231523
|
|||
|
Unavailable |
|||
|
#24
GEAR
3231524
|
|||
|
Unavailable |
|||
|
#25
WASHER
3231525
|
|||
|
Unavailable |
|||
|
#26
BEARING,NEEDLE
3231526
|
|||
|
Unavailable |
|||
|
#27
WASHER
3231527
|
|||
|
Unavailable |
|||
|
#28
SEAL, OIL
3231528
|
|||
|
Unavailable |
|||
|
#29
GEAR
3231529
|
|||
|
Unavailable |
|||
|
#30
SPKT, 12T
3231530
Superseded by 3221044
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
C RING
3231531
|
|||
|
Unavailable |
|||
|
#32
SHAFT, OUTPUT
3231532
|
|||
|
Unavailable |
|||
|
#33
SPKT, 11T
3231533
Superseded by 3221058
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER [No Longer Available]
3231534
|
|||
|
Unavailable |
|||
|
#35
WASHER, SPRING [No Longer Available]
3231535
|
|||
|
Unavailable |
|||
|
#36
BOLT
3231536
|
|||
|
Unavailable |
|||
|
#37
PLUG, DRAIN [No Longer Available]
3231537
|
|||
|
Unavailable |
|||
|
#38
GASKET [No Longer Available]
3231538
|
|||
|
Unavailable |
|||
|
#39
GASKET
3231539
|
|||
|
Unavailable |
|||
|
#40
PLUG, OIL [No Longer Available]
3231540
|
|||
|
Unavailable |
|||
|
#41
BOLT [No Longer Available]
3231541
|
|||
|
Unavailable |
|||
|
#42
BOLT [No Longer Available]
3231542
|
|||
|
Unavailable |
|||
|
#43
PIPE, KNOCK
3231543
|
|||
|
Unavailable |
|||
|
#44
NUT(10) [No Longer Available]
3231544
|
|||
|
Unavailable |
|||
|
#45
WASHER, SPRING(10)
3231545
|
|||
|
Unavailable |
|||
|
#46
BOLT [No Longer Available]
3231546
|
|||
|
Unavailable |
|||
|
#47
BOLT [No Longer Available]
3231547
|
|||
|
Unavailable |
|||
|
#48
PIPE,BREATHER
3231548
|
|||
|
Unavailable |
|||
|
#49
NUT, LOCK [No Longer Available]
3231549
|
|||
|
Unavailable |
|||
|
#50
KEY, HI-PRO
7721113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
