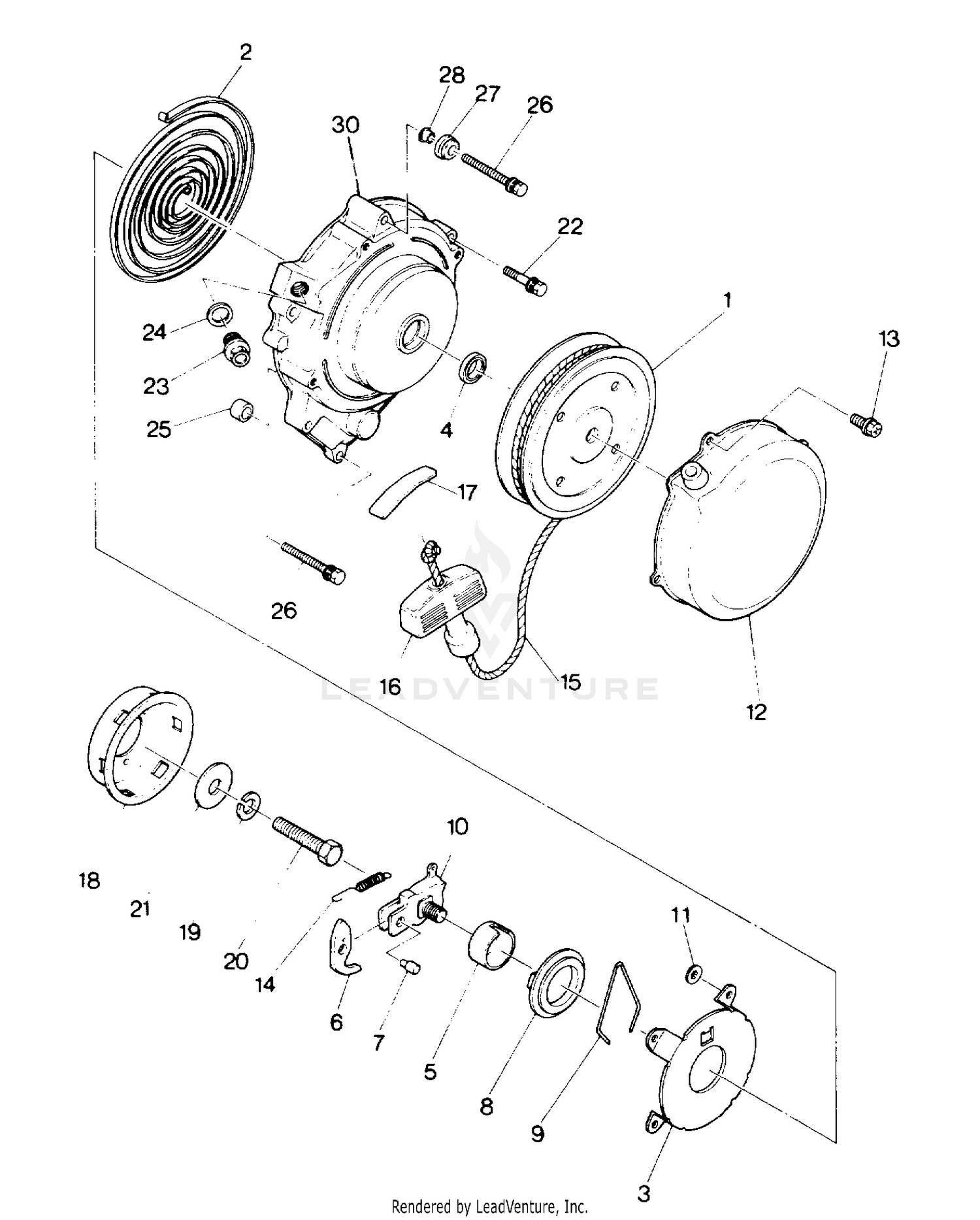

Recoil Starter Assembly (4913511351044a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REEL, COMPL.
3083814
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Spiral Spring
-------
|
|||
|
Unavailable |
|||
|
#3
Spring Case
-------
|
|||
|
Unavailable |
|||
|
#4
GROMMET
3083817
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, SPRING
3083818
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RATCHET
3083819
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, RATCHET
3083820
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE,RATCHET
3083821
|
|||
|
Unavailable |
|||
|
#9
SPRING,FRICTION
3083822
Superseded by 3083912
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, COMPL.
3083823
Superseded by 3083913
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Push Nut
-------
|
|||
|
Unavailable |
|||
|
#12
CASE, STARTER, COMPL. [No Longer Available]
3083825
|
|||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
3083826
|
$7.79 | ||
|
Unavailable |
|||
|
#14
SPRING, RETURN
3083827
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROPE,100 FT,NYL.STARTER
3083828
Superseded by 2870621
|
$34.99 | ||
|
Unavailable |
|||
|
#15
ROPE,100 FT,NYL.STARTER
3083829
Superseded by 2870621
|
$34.99 | ||
|
Unavailable |
|||
|
#16
KNOB, STARTER
3083659
|
$44.39 | ||
|
Unavailable |
|||
|
#17
NOT AVAILABLE
3083660
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#18
PULLEY,STARTING UNIT
3083830
|
|||
|
Unavailable |
|||
|
#19
WASHER, SPRING(10)
3080281
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
3083831
|
|||
|
Unavailable |
|||
|
#21
WASHER
3083832
|
|||
|
Unavailable |
|||
|
#22
BOLT&WASHER ASM.
3082228
|
$2.59 | ||
|
Unavailable |
|||
|
#23
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
3082956
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSHING, STARTER
3083669
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT&WASHER Substituted by 3083729
3083217
|
|||
|
Unavailable |
|||
|
#27
MOUNTING,RUBBER
3083731
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
3083732
|
|||
|
Unavailable |
|||
|
#30
Starter Case B
-------
|
|||
|
Unavailable |
|||
|
#
STARTER, RECOIL Substituted by 3083924
3083812
|
|||
|
Unavailable |
|||
