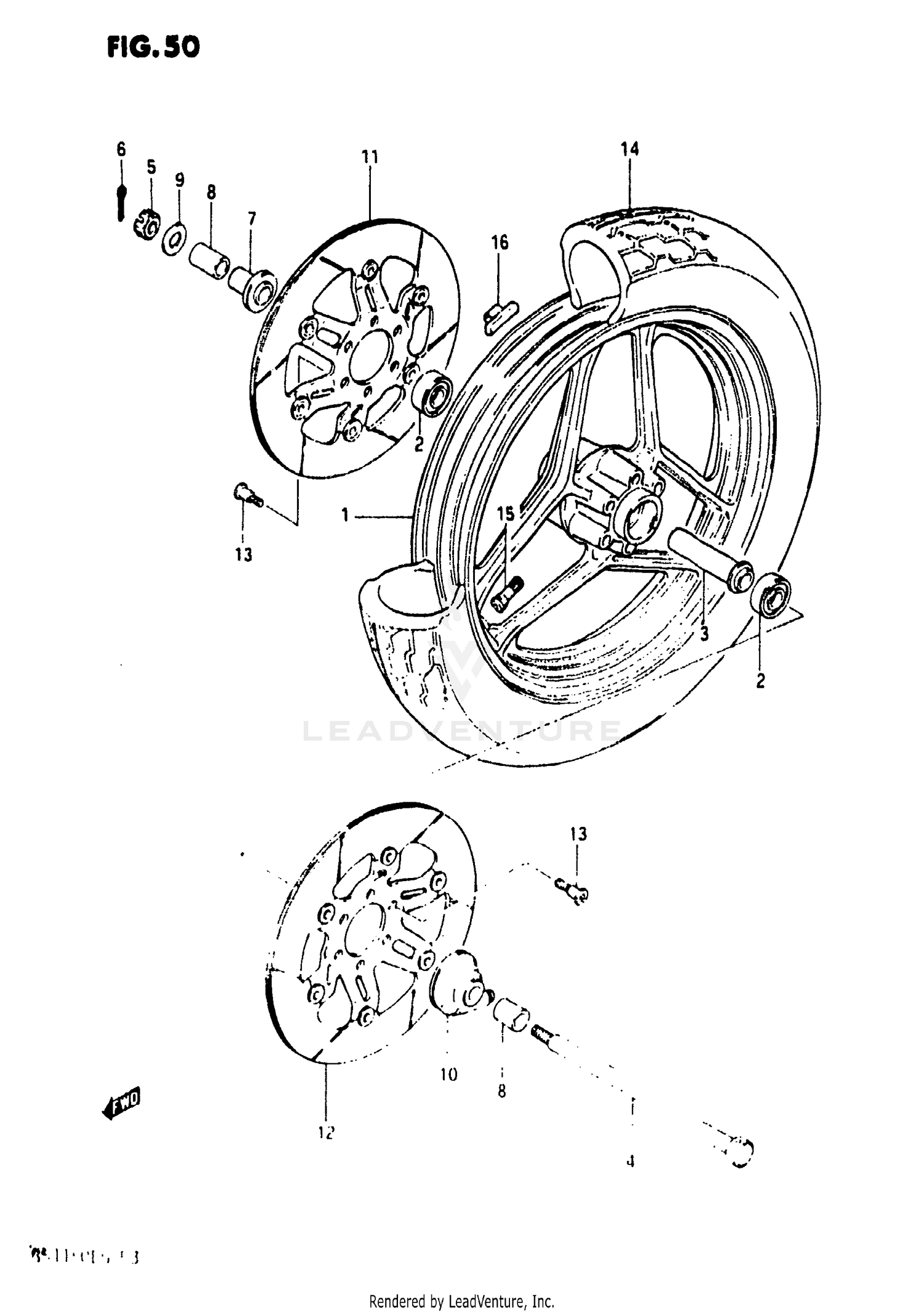

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, FRONT (2.50x16) BLACK
54111-00A00-291
|
$414.40 | ||
|
Unavailable |
|||
|
#1
WHEEL, FRONT (2.75x16) BLACK
54111-00A20-291
|
$417.74 | ||
|
Unavailable |
|||
|
#2
BEARING
08123-63027
Superseded by 08123-6302B
|
$24.32 | ||
|
Unavailable |
|||
|
#3
SPACER
54730-00A00
|
$14.75 | ||
|
Unavailable |
|||
|
#4
AXLE, FRONT
54711-00A00
|
$28.27 | ||
|
Unavailable |
|||
|
#5
NUT
08314-31128
Superseded by 08314-3112A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04111-30308
Superseded by 04111-3030A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING RH
54740-18402
|
$24.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, AXLE (15x22x30)
09180-15034
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08322-21128
Superseded by 08322-01127
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX, SPEEDOMETER GEAR
54600-00A00
|
$118.03 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISC, FRONT BRAKE RH
59210-00A00
Superseded by 59210-00A01
|
$164.29 | ||
|
Unavailable |
|||
|
#11
DISC, FRONT BRAKE RH
59210-00A01
|
$164.29 | ||
|
Unavailable |
|||
|
#12
DISC, FRONT BRAKE LH
59220-00A00
Superseded by 59220-00A01
|
$164.29 | ||
|
Unavailable |
|||
|
#12
DISC, FRONT BRAKE LH
59220-00A01
|
$164.29 | ||
|
Unavailable |
|||
|
#13
BOLT (8X33)
09106-08041
Superseded by 09106-08148
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
55100-00A35
|
$124.57 | ||
|
Unavailable |
|||
|
#14
TIRE, T/L (110/90V16) BS
55100-00A10
|
$146.81 | ||
|
Unavailable |
|||
|
#15
VALVE ASSY, WHEEL RIM
43130-75150
Superseded by 43130-78030
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER (10G)
55411-00A00-291
Superseded by 55411-00A00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER, WHEEL NO.2
55412-00A00-291
Superseded by 55412-17G00
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALANCER (30G)
55413-00A00-291
Superseded by 55413-00A01
|
$3.58 | ||
|
Unavailable |
|||
