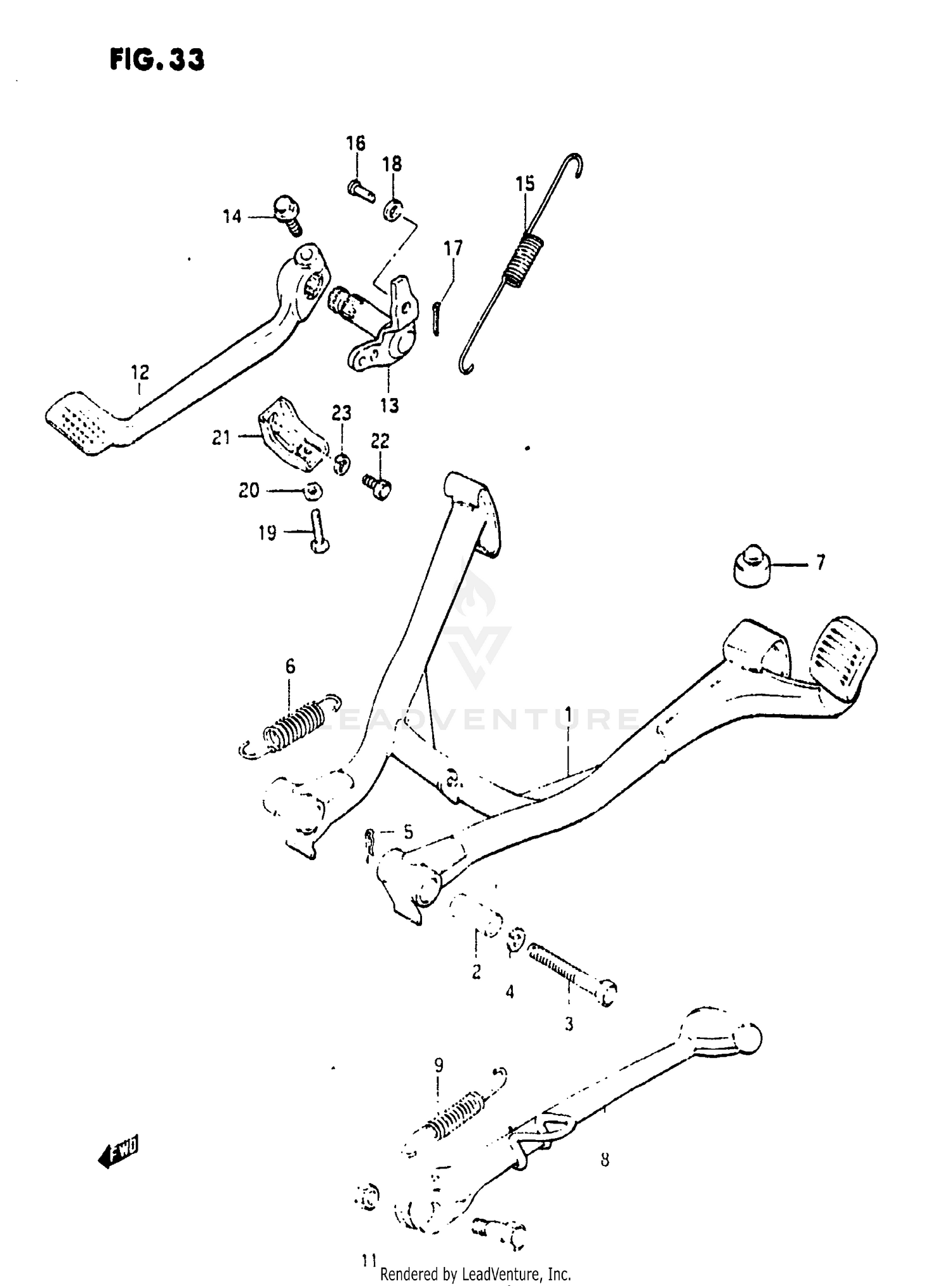

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-00A01
|
$93.03 | ||
|
Unavailable |
|||
|
#2
SPACER (10.7x15.9x38)
09180-10040
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09101-10034
Superseded by 09117-10029
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER
08321-21107
Superseded by 08321-01107
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
09385-10001
Superseded by 09385-10005
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
09443-18012
|
$3.88 | ||
|
Unavailable |
|||
|
#7
CUSHION
09321-10002
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAND, PROP (BLACK)
42310-00A00-019
|
$43.07 | ||
|
Unavailable |
|||
|
#9
SPRING
09443-15017
|
$4.18 | ||
|
Unavailable |
|||
|
#10
BOLT
09111-10024
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-22106
Superseded by 08310-0010A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
PEDAL, BRAKE
43111-00A00
|
$54.16 | ||
|
Unavailable |
|||
|
#13
ARM, BRAKE PEDAL ROD
43120-00A00
|
$36.15 | ||
|
Unavailable |
|||
|
#14
BOLT
01517-08258
Superseded by 01550-08257
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
09443-12027
|
$5.85 | ||
|
Unavailable |
|||
|
#16
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-21067
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, ADJUSTER
09100-06055
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
.NUT
08310-11067
Superseded by 08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, BRAKE PEDAL ADJUSTER
43261-00A00
|
$2.46 | ||
|
Unavailable |
|||
|
#22
BOLT
01107-06127
Superseded by 01500-06127
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#23
LOCK WASHER
08321-21067
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
