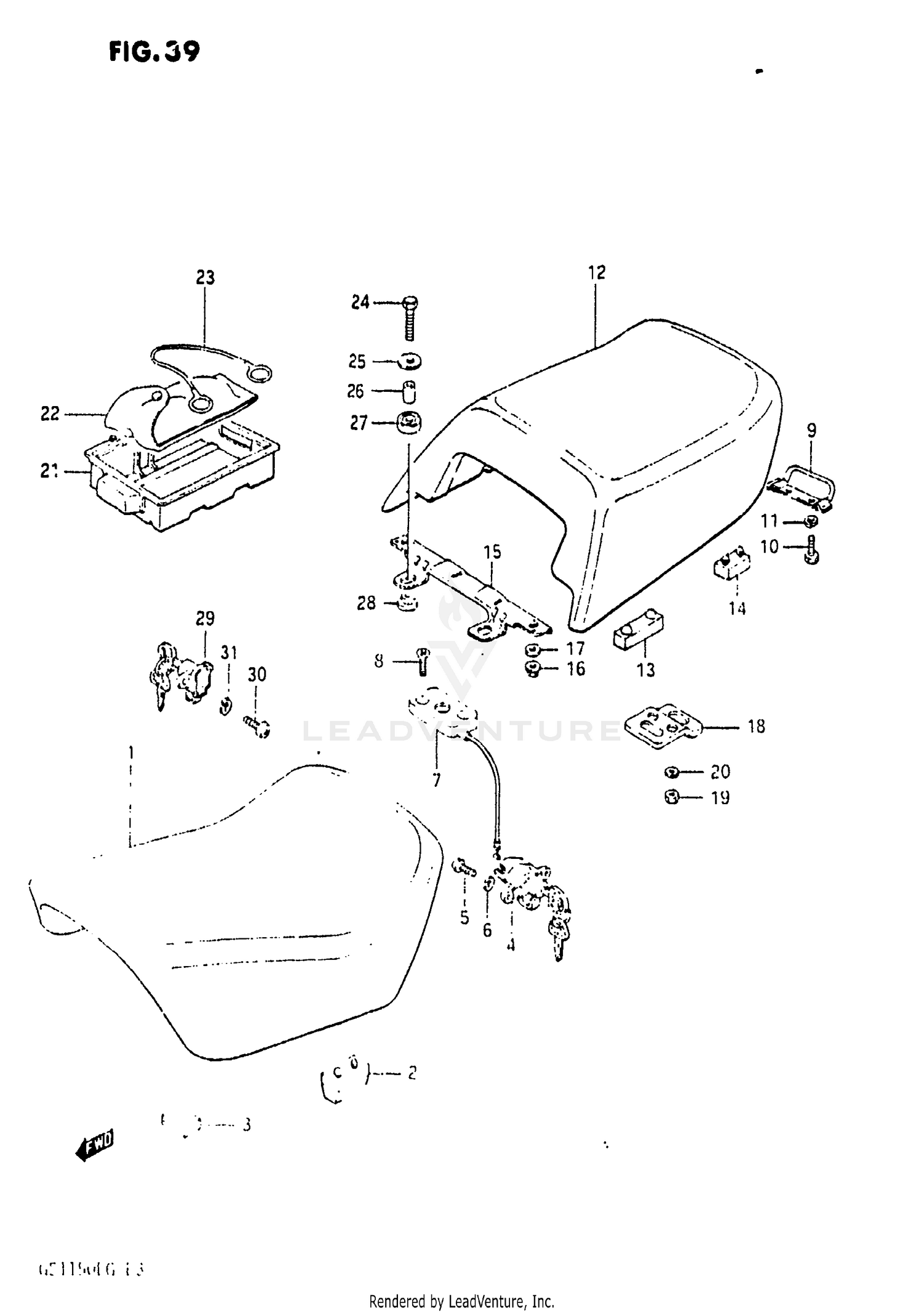

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-00A00-58R
Superseded by 45100-00A01-58R
|
$181.01 | ||
|
Unavailable |
|||
|
#1
SEAT ASSY (BLACK)
45100-00A01-58R
|
$181.01 | ||
|
Unavailable |
|||
|
#2
CUSHION
45149-00A00
|
$4.07 | ||
|
Unavailable |
|||
|
#3
CUSHION, BATTERY STOPPER
45255-15510
|
$2.20 | ||
|
Unavailable |
|||
|
#4
LOCK, SEAT AND HELMET
45700-00A00-KEY
|
$66.62 | ||
|
Unavailable |
|||
|
#5
SCREW
02112-06126
Superseded by 02112-0612A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, REAR SUPPORT
45220-00A00
|
$21.36 | ||
|
Unavailable |
|||
|
#8
SCREW
02122-06255
Superseded by 02122-0625A
|
$1.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
NO DESCRIPTION AVAILABLE
45210-00A00
Superseded by 45230-00A00
|
$4.77 | ||
|
Unavailable |
|||
|
#10
BOLT
01107-06126
Superseded by 01500-0612A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Unavailable |
|||
|
#12
SEAT SET, PILLION (BLACK)
45300-00A10-58R
|
$182.57 | ||
|
Unavailable |
|||
|
#13
CUSHION
45149-43500
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09321-08012
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, PILLION SEAT FRONT
45321-00A00
|
$6.36 | ||
|
Unavailable |
|||
|
#16
NUT
08310-11066
Superseded by 08310-0006A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Unavailable |
|||
|
#18
PLATE, SEAT HOOK REAR
45330-00A00
|
|||
|
Unavailable |
|||
|
#19
NUT
08310-11066
Superseded by 08310-0006A
|
$1.95 | ||
|
Unavailable |
|||
|
#20
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Unavailable |
|||
|
#21
BOX, TOOL
45115-00A00
|
$10.32 | ||
|
Unavailable |
|||
|
#22
TOOL ASSY
09800-00275
Superseded by 09800-21073
|
$91.40 | ||
|
Unavailable |
|||
|
#23
BAND
45151-00A00
|
$4.23 | ||
|
Unavailable |
|||
|
#24
BOLT
09128-06010
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, FRONT
09160-06004
Superseded by 09160-06134
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER
09180-06072
Superseded by 09180-06271
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
CUSHION (9X24X18)
09320-10020
Superseded by 09320-10071
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION, LOWER
09320-14013
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
LOCK ASSY, HELMET
95700-00A00-KEY
|
$30.90 | ||
|
Unavailable |
|||
|
#30
SCREW
02112-06126
Superseded by 02112-0612A
|
$1.52 | ||
|
Unavailable |
|||
|
#31
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Unavailable |
|||
