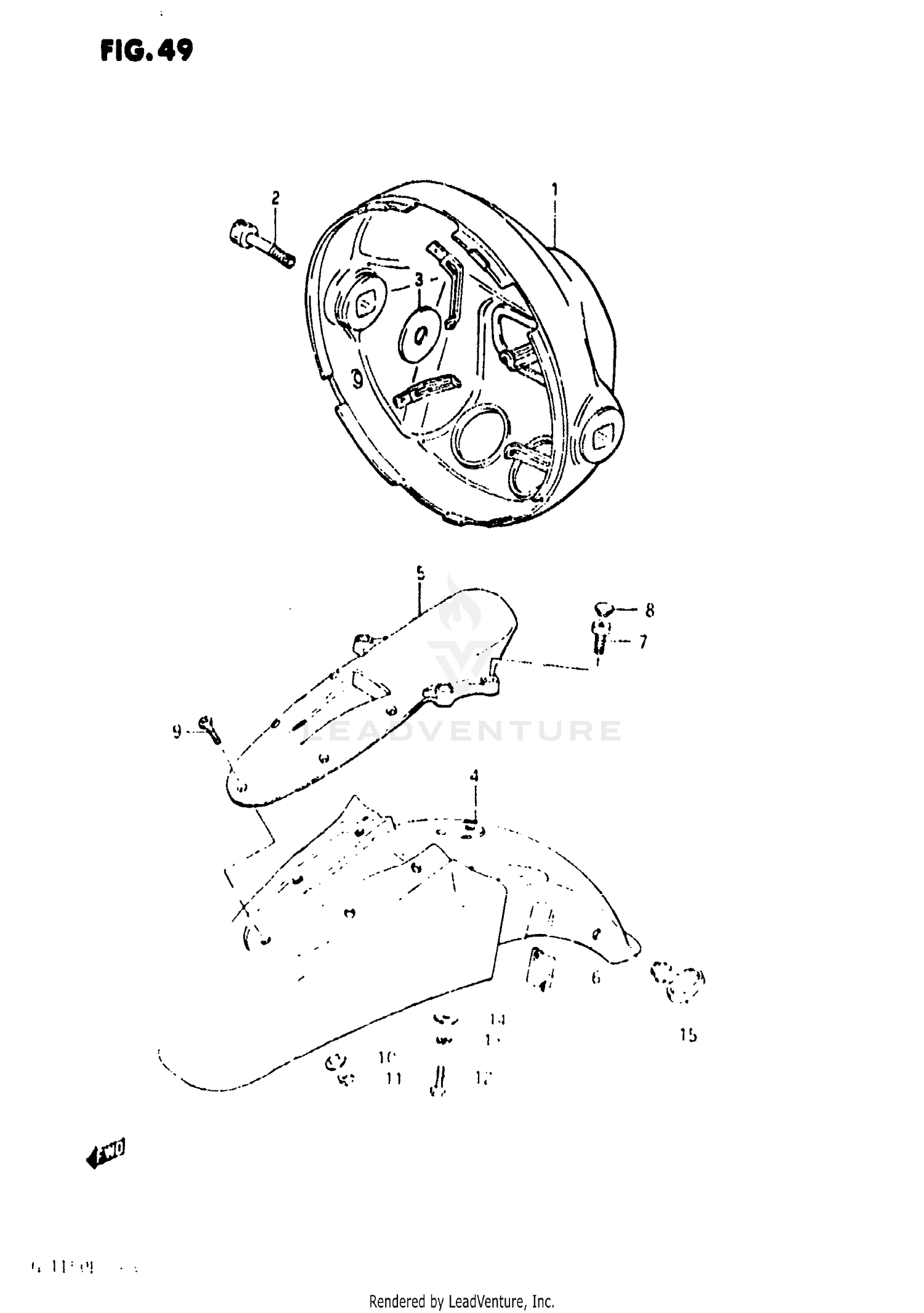

Housing Headlamp - Front Fender (gs1150ef/ef2/eg) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, HEADLAMP (BLACK)
51810-45900-019
|
$196.52 | ||
|
Unavailable |
|||
|
#2
BOLT
07110-08307
Superseded by 07130-08307
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (8.5X28X1.5)
09160-08002
Superseded by 09160-08135
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
NO DESCRIPTION AVAILABLE
53111-00A00-019
Superseded by 53111-00A20-13L
|
$194.39 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
53111-00A00-12F
Superseded by 53111-00A20-13L
|
$194.39 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
53111-00A00-22R
Superseded by 53111-00A20-13L
|
$194.39 | ||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
53111-00A00-22P
Superseded by 53111-00A20-13L
|
$194.39 | ||
|
Unavailable |
|||
|
#5
BRACE, FRONT FENDER
53114-00A00
|
$94.41 | ||
|
Unavailable |
|||
|
#6
CUSHION
53431-00A00
Superseded by 61374-08010
|
$2.84 | ||
|
Unavailable |
|||
|
#7
BOLT
07110-08165
Superseded by 07130-0816A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
09250-06004
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02132-05164
Superseded by 02122-0516B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09169-05011
Superseded by 09169-05024
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
.NUT
08319-21055
Superseded by 08319-2105A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09160-06007
Superseded by 09160-06084
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, METER CABLE
58621-21203
Superseded by 58621-21204
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
