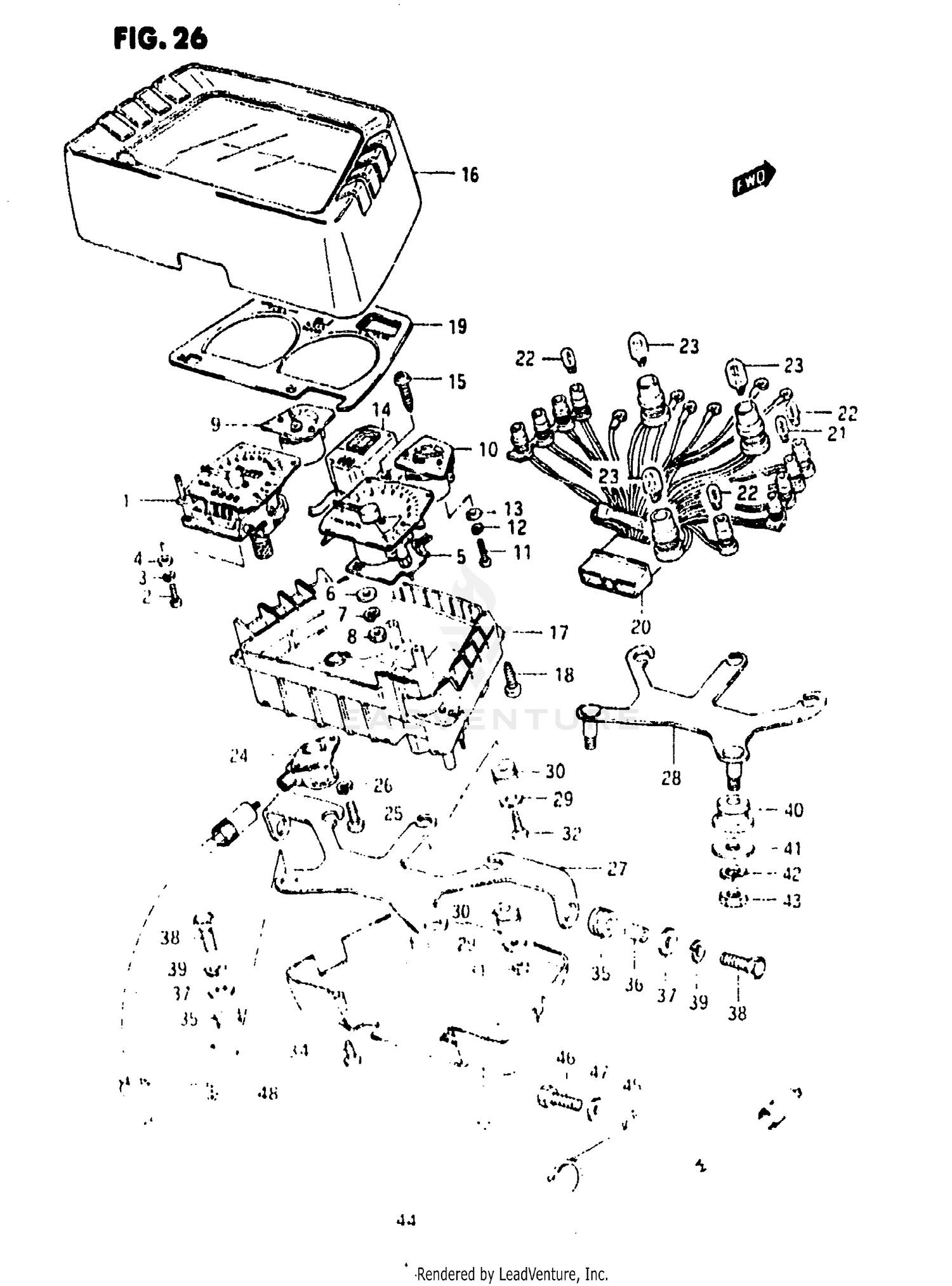

Speedometer - Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER (MILE/KILO)
34120-00A31
|
$261.91 | ||
|
Unavailable |
|||
|
#2
SCREW
02112-03106
Superseded by 02112-0310B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER
08321-21036
Superseded by 08321-2103B
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
08322-21036
Superseded by 08322-0103B
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
34220-00A31
Superseded by 34220-00A11
|
$333.28 | ||
|
Unavailable |
|||
|
#6
WASHER
08322-21046
Superseded by 08322-0104A
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER
08321-31046
|
$0.60 | ||
|
Unavailable |
|||
|
#8
NUT
08310-22048
Superseded by 08310-00047
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUELMETER
34320-00A11
|
$84.89 | ||
|
Unavailable |
|||
|
#10
OIL TEMPERATURE METER
34730-00A31
|
$68.82 | ||
|
Unavailable |
|||
|
#11
SCREW
02112-03126
Superseded by 02112-0312B
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
08321-21036
Superseded by 08321-2103B
|
$1.50 | ||
|
Unavailable |
|||
|
#13
WASHER
08322-21036
Superseded by 08322-0103B
|
$2.58 | ||
|
Unavailable |
|||
|
#14
INDICATOR, GEAR POSITION
36450-49910
|
$177.54 | ||
|
Unavailable |
|||
|
#15
SCREW
03212-04109
Superseded by 03211-0410B
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOOD SET, METER
34150-10830
|
$129.85 | ||
|
Unavailable |
|||
|
#16
HOOD, METER
34150-00A10
|
$68.99 | ||
|
Unavailable |
|||
|
#17
CASE, METER
34111-00A10
|
$78.63 | ||
|
Unavailable |
|||
|
#18
SCREW
03212-04109
Superseded by 03211-0410B
|
$2.03 | ||
|
Unavailable |
|||
|
#19
PLATE, METER WINDOW
34153-00A10
|
$23.58 | ||
|
Unavailable |
|||
|
#20
SOCKET, METER
34170-00A10
|
$98.07 | ||
|
Unavailable |
|||
|
#21
BULB (12V,1.7W)
09471-12100
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB (12V,3W)
09471-12085
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BULB (12V,3.4W)
09471-12082
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOX, SPEEDOMETER GEAR
34131-49300
|
$204.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02112-04106
Superseded by 02112-0410A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
NO DESCRIPTION AVAILABLE
34950-10A10
Superseded by 34950-10A11
|
$36.62 | ||
|
Unavailable |
|||
|
#28
BRACKET, METER
34950-00A10
|
$37.55 | ||
|
Unavailable |
|||
|
#29
WASHER (4.5X16X1.2)
34181-49300
Superseded by 09160-04026
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION
34955-28010
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
08310-22048
Superseded by 08310-00047
|
$2.03 | ||
|
Unavailable |
|||
|
#32
SCREW
03142-04169
Superseded by 03141-0416A
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, LOWER
34193-10A10
|
$52.38 | ||
|
Unavailable |
|||
|
#33
COVER, LOWER
34193-00A10
|
$49.47 | ||
|
Unavailable |
|||
|
#34
SCREW
03112-04125
Superseded by 03111-0412A
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#35
CUSHION (9X18X9.5)
09320-09016
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPACER (6.5X9X9)
09180-06011
Superseded by 09180-06263
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
09160-06006
Superseded by 09160-06084
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, GEAR SHIFT LINK
01107-06206
Superseded by 01500-0620A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER,LOCK
08321-21066
Superseded by 08321-0106A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
CUSHION
34956-31001
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER (8.5X28X1.5)
09160-08057
Superseded by 09160-08135
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#42
LOCK WASHER
08321-21084
Superseded by 08321-0108A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
08310-11085
Superseded by 08310-0008A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#44
CABLE ASSY, SPE
34910-10A01
Superseded by 34910-08A00
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#44
CABLE ASSY,SPEE
34910-33400
Superseded by 34910-33401
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#45
GUIDE, METER CABLE
34938-45100
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER
08322-21067
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#48
GUIDE, METER CABLE
34938-00A10
|
$3.48 | ||
|
Unavailable |
|||
