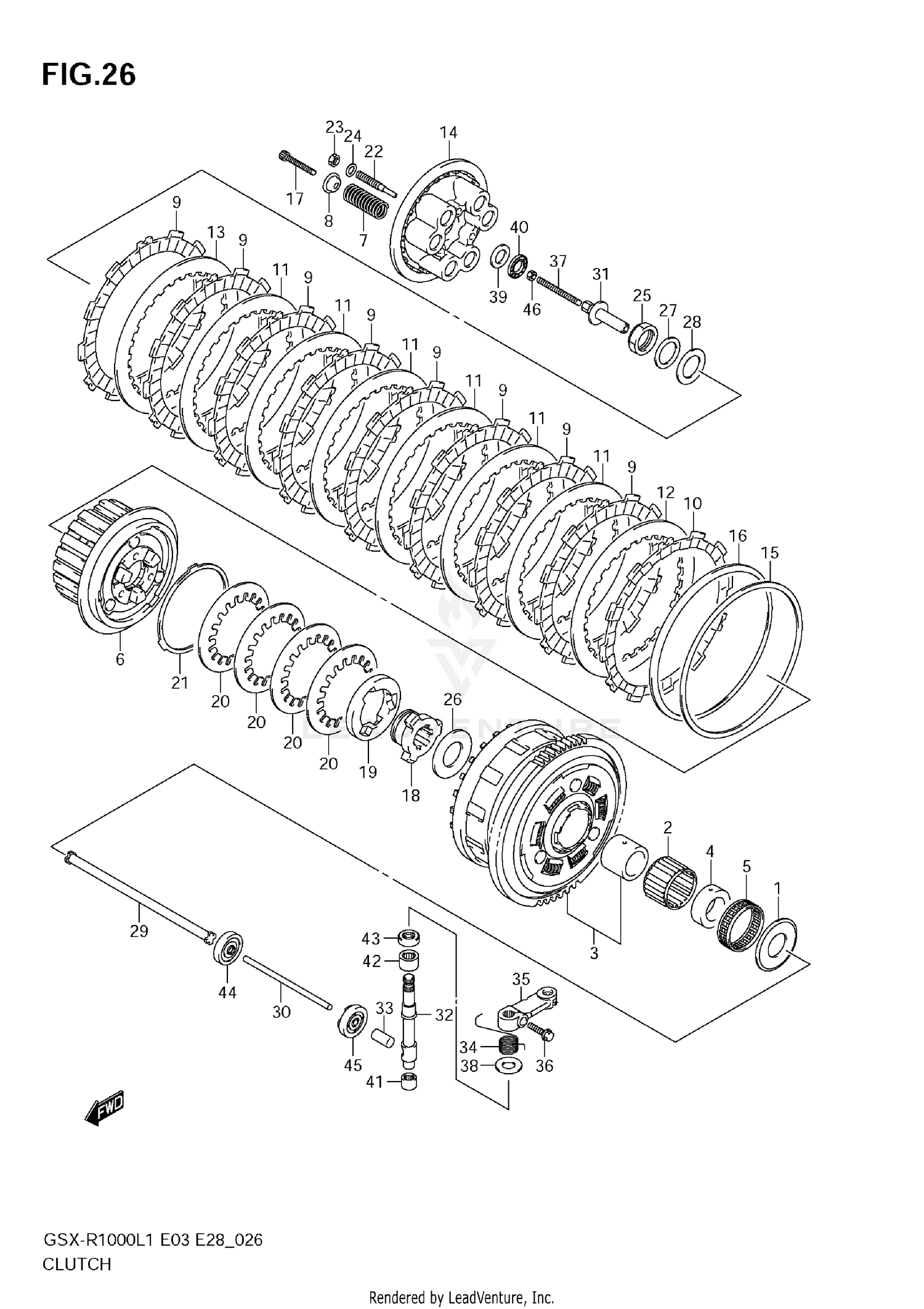

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER (25X54X2.4)
09160-25073
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (35X40X26.8)
09263-35015
|
$27.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR ASSY, PRIMARY DRIVEN
21200-47810
|
$523.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, OIL PUMP DRIVE
21253-01H10
|
$41.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (35X40X12)
09263-35045
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, CLUTCH SLEEVE
21410-41G40
|
$233.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CLUTCH
21413-47H00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, CLUTCH SPRING
21414-29F00
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH DRIVE NO.1
21441-42F20
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVE NO.2
21442-42F10
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH DRIVEN NO.1
21451-47H00
|
$17.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, CLUTCH DRIVEN NO.2
21451-47H10
|
$16.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH DRIVEN NO.3
21451-47H20
|
$17.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISC, CLUTCH PRESSURE
21462-41G10
|
$79.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT,WAVE WASHER
21471-02F20
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,CLUTCH PLATE WAVE
21472-02F20
|
$24.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,CLUTCH SPRING
21482-41G10
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAM,CLUTCH DRIVE
21611-41G20
|
$141.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAM,CLUTCH DRIVEN
21612-41G20
|
$119.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,CAM REACTION WAVE
21621-41G00
|
$17.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CAM REACTION SEAT
21624-41G20
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
LIFTER, CLUTCH PRESSURE DISK
21622-41G10
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CL PRESS DISC LIFT LOCK
21623-41G00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHIM (8.8X14X1)
09181-08139
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09159-24010
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (25X50X2.5)
09160-25056
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (25X41X2.5)
09160-25077
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09164-24008
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, CLUTCH
23110-27A00
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#30
ROD, CLUTCH PUSH, L
23111-47H00
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIECE, CLUTCH PUSH
23121-41G20
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAMSHAFT,CLUTCH RELEASE
23122-41G00
|
$56.91 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP,CLUTCH PUSH ROD
23123-41G00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING,CLUTCH RELEASE RETURN
23125-41G00
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#35
ARM, CLUTCH RELEASE
23271-41G31
|
$57.08 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT (6X20)
09103-06223
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW (6X73)
09134-06015
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER (10.5X24X1.0)
09160-10020
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER (15.5X28X1)
09160-15045
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING (15X28X2)
09263-15003
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING (10X14X10)
09263-10014
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING (12X18X12)
09263-12027
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
SEAL,OIL (10X20X6)
09282-10012
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#44
OIL SEAL (6X34X10.5)
09283-06010
|
$19.76 | ||
|
Available to order. Add to View Price |
|||
|
#45
SEAL,OIL (10X17X5)
09285-10004
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
08310-0006A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
