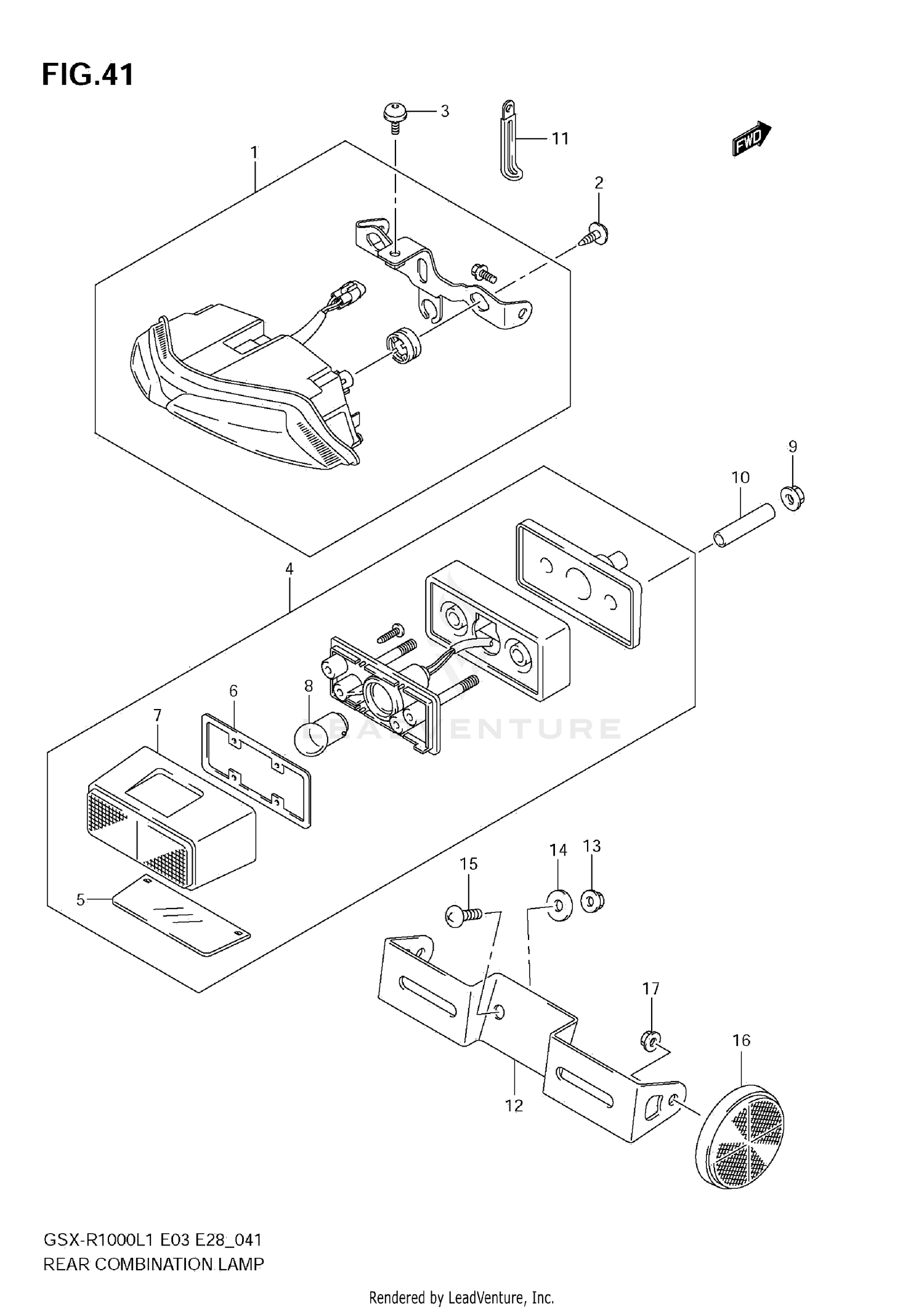

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-47H30
|
$287.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (5X12)
09106-05031
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X12)
09139-06152
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
LAMP ASSY, LICENSE
35910-41G30
Superseded by 35910-41G32
|
$88.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
.LENS,LICENSE LAMP
35912-41G00
Superseded by 35912-41G01
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35913-41G00
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, LICENSE LAMP
35917-41G00
|
$35.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT (M6)
09159-06096
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.5X9X34)
09180-06356
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:45)
09404-06429
|
$2.13 | ||
|
Unavailable |
|||
|
#12
BRACKET, LICENSE PLATE
35927-41G30
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT (6X12)
08316-1006A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (6.5X20X1.2)
09160-06077
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02142-0616A
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$17.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08316-1005A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
