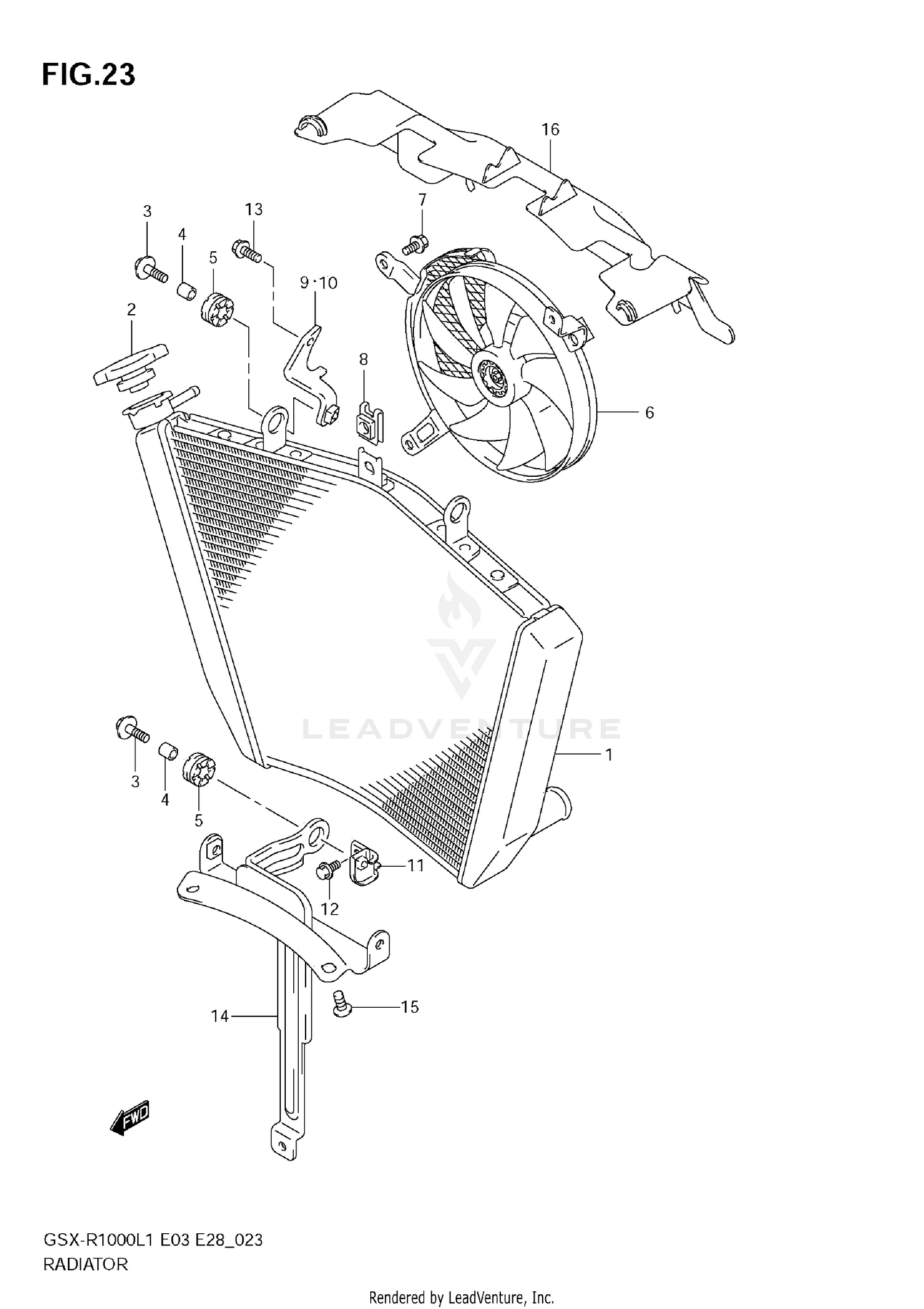

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-47H00
|
$1,095.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RADIATOR
17730-12C20
Superseded by 17730-08J00
|
$47.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X25)
09118-06097
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (6.5X10X12)
09180-06290
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10051
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
FAN ASSY, RADIATOR
17800-47H00
|
$671.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
17711-40F00
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,FAN ASSY
17712-40F00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, RADIATOR RH
17741-47H00
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, RADIATOR LH
17742-47H00
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, RADIATOR & OIL COOLER
17750-47H00
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0612A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT
01550-0616B
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, RADIATOR SUPPORT
17790-47H00
|
$36.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X10)
09103-06307
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIELD, RADIATOR HEAT
17771-47H00
|
$38.73 | ||
|
Available to order. Add to View Price |
|||
