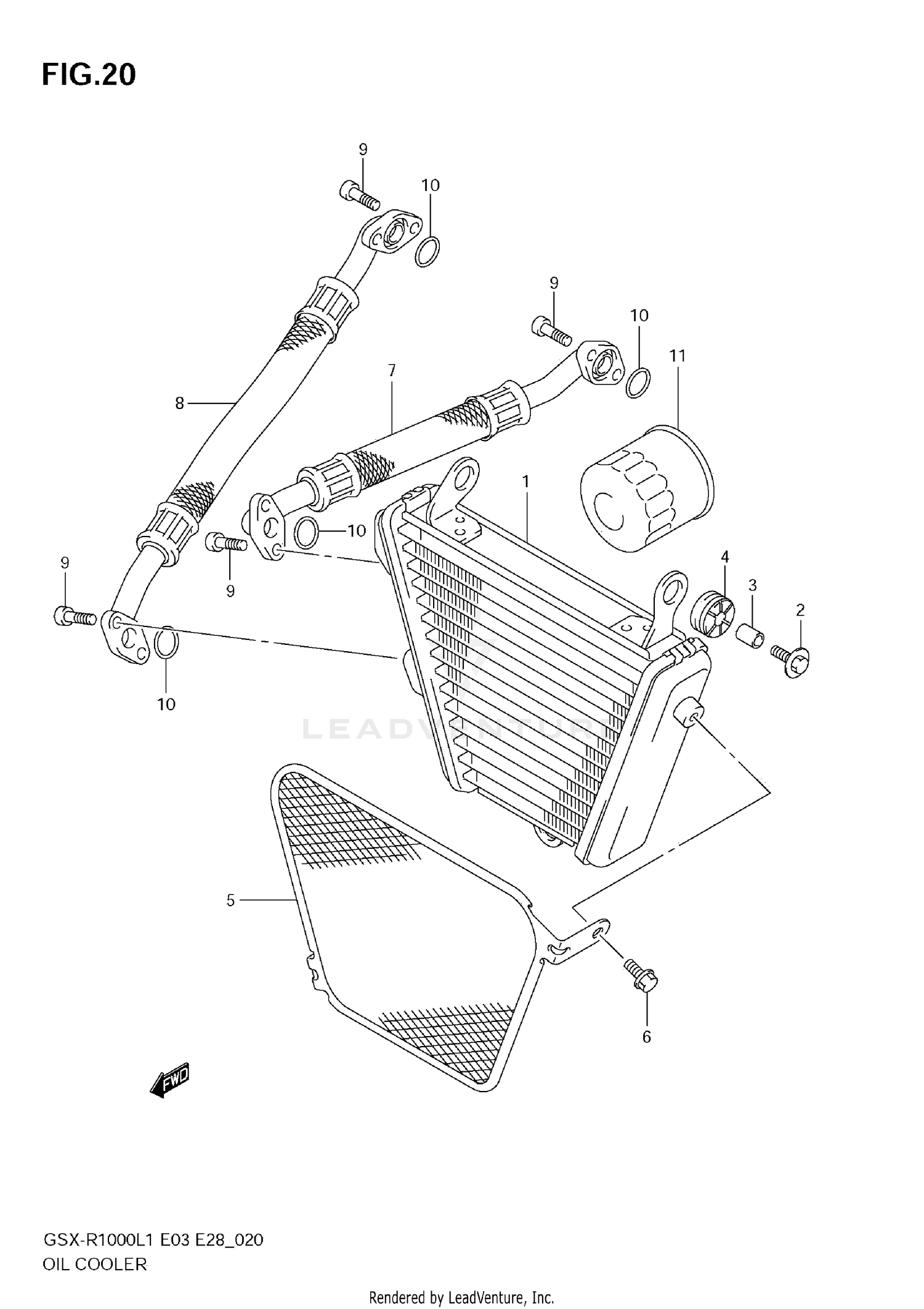

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-47H00
|
$922.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (6X25)
09118-06122
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER (6.5X10X12)
09180-06290
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09320-10051
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUARD, OIL COOLER
16650-47H00
Superseded by 16650-47H10
|
$108.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0610A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, OIL COOLER RH
16460-47H00
|
$175.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, OIL COOLER LH
16470-47H00
|
$171.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X16)
09106-06073
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:2.4,ID:16)
09280-15015
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#11
FILTER ASSY,ENGINE OIL (P1.0)
16510-07J00
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
