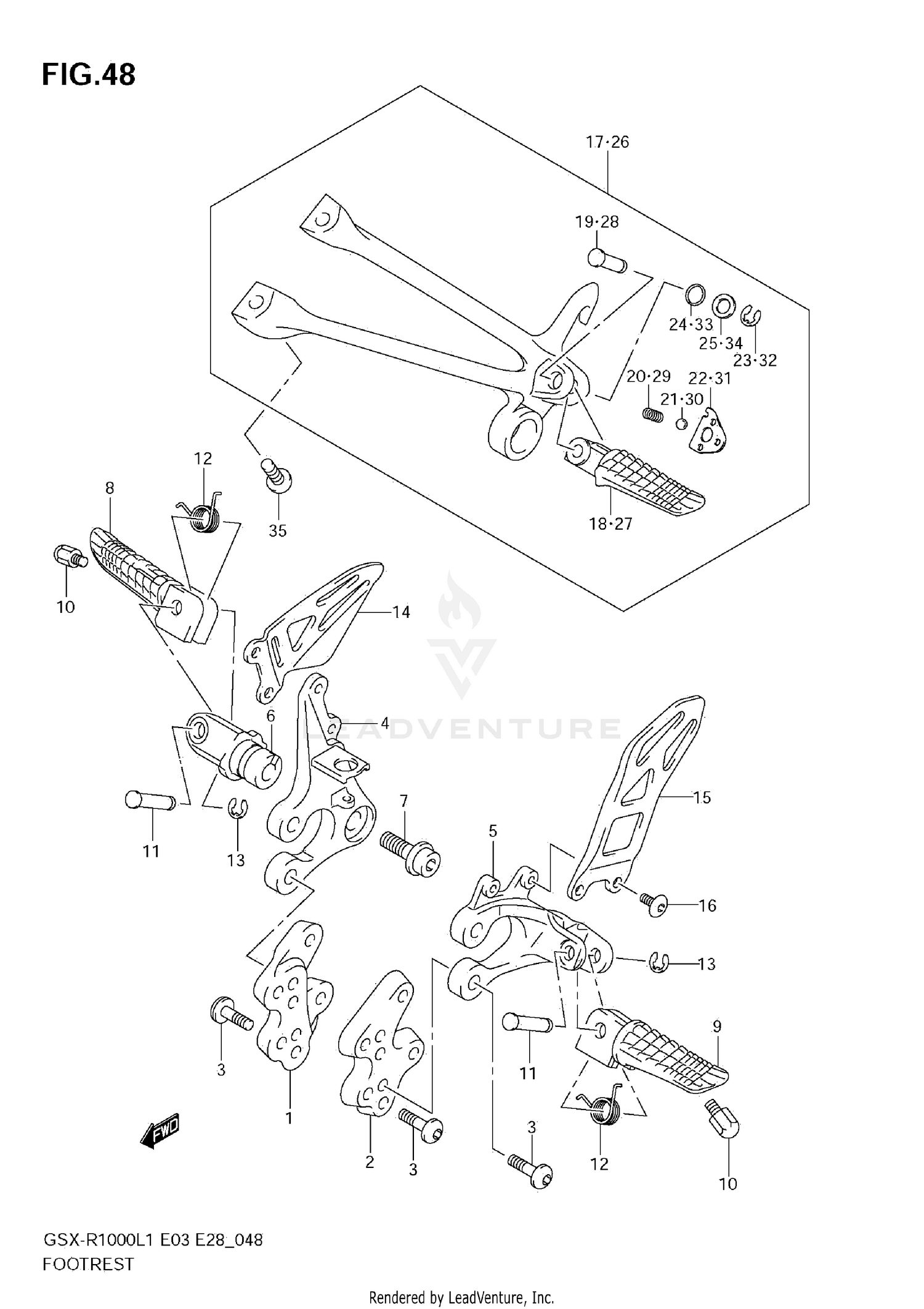

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT NO.1 RH
43541-47H00
|
$62.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT NO.1 LH
43551-47H00
|
$60.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X23)
09106-08186
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FRONT NO.2 RH
43511-47H00
|
$135.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, FRONT NO.2 LH
43521-47H00
Superseded by 43521-47H10
|
$129.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, FOOTREST RH
43531-41G10
|
$93.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (10X28)
09106-10064
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, FOOTREST RH
43516-37H00
|
$45.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, FOOTREST LH
43526-37H00
|
$44.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BANK SENSOR
43576-48B02
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
09208-08010
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09448-14037
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
E-RING
08332-1106A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FOOTREST RH
43571-47H00
|
$75.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST LH
43576-47H00
Superseded by 43576-47H10
|
$74.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,FOOTREST GUARD LH
43577-35F00
Superseded by 43577-35F10
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST ASSY, PILLION RH
43600-47H00
|
$272.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR,PILLION FOOTREST RH
43611-37H00
Superseded by 43611-37H20
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09208-08020
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-05005
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, RH
43816-47H00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-1106A
|
$1.52 | ||
|
Unavailable |
|||
|
#24
O RING (D:2.4,ID:6.9)
09280-08013
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
09160-08091
Superseded by 09160-08082
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST ASSY, PILLION LH
43700-47H00
|
$272.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
BAR,PILLION FOOTREST LH
43621-37H00
Superseded by 43621-37H20
|
$40.75 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN
09208-08020
|
$3.05 | ||
|
Unavailable |
|||
|
#29
SPRING
09440-05005
|
$1.45 | ||
|
Unavailable |
|||
|
#30
BALL
06111-07004
|
$1.30 | ||
|
Unavailable |
|||
|
#31
PLATE, LH
43826-47H00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
E-RING
08332-1106A
|
$1.52 | ||
|
Unavailable |
|||
|
#33
O RING (D:2.4,ID:6.9)
09280-08013
|
$2.25 | ||
|
Unavailable |
|||
|
#34
WASHER
09160-08091
Superseded by 09160-08082
|
$1.72 | ||
|
Unavailable |
|||
|
#35
BOLT (8X23)
09106-08186
|
$3.65 | ||
|
Unavailable |
|||
