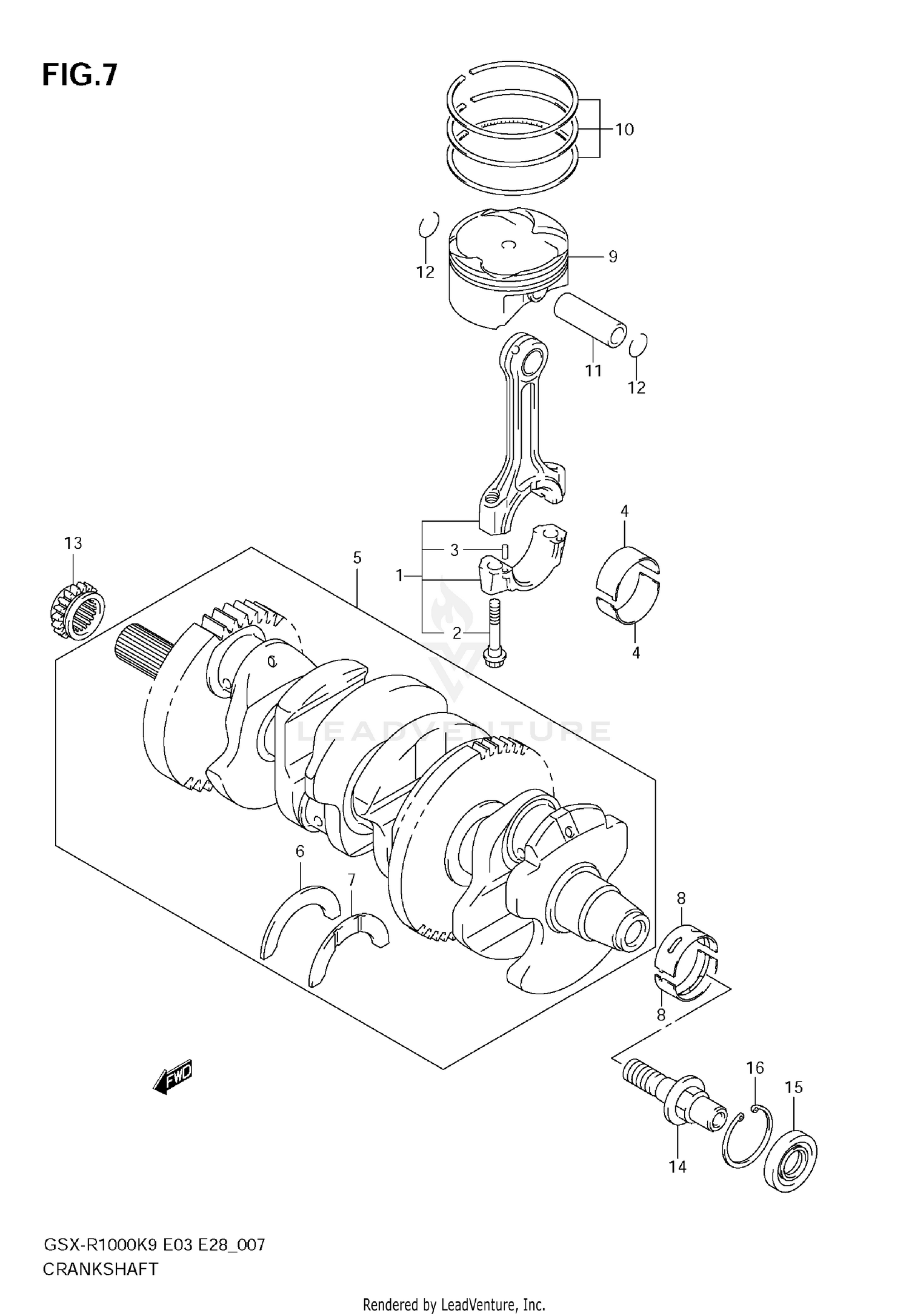

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-47H00
|
$269.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT,CONNECTING ROD
12163-24F10
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CONNROD
12165-27A50
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN
12164-47H00-0A0
Superseded by 12164-47H10-0A0
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN
12164-47H00-0B0
Superseded by 12164-47H10-0B0
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN
12164-47H00-0C0
Superseded by 12164-47H10-0C0
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN
12164-47H00-0D0
Superseded by 12164-47H10-0D0
|
$14.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT SET
12000-47850
|
$1,948.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST RH (GREEN)
12228-48B00-0E0
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BROWN)
12228-48B00-0B0
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (RED)
12228-48B00-0C0
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (YELLOW)
12228-48B00-0D0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (GREEN)
12228-48B00-0E0
|
$10.99 | ||
|
Unavailable |
|||
|
#7
BEARING, THRUST LH (BLUE)
12228-48B00-0F0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (ORANGE)
12228-48B00-0G0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BLACK)
12228-48B00-0H0
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-47H10-0A0
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-47H10-0B0
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-47H10-0C0
|
$21.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-47H10-0D0
|
$22.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLUE)
12229-47H10-0E0
|
$22.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON
12111-47H00-0F0
Superseded by 12111-47H10-0F0
|
$235.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON
12140-47H00
|
$116.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN,PISTON
12151-41G00
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09381-15001
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, CAM CHAIN
12731-47H00
|
$114.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, GENERATOR ROTOR
12224-47H00
|
$60.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, OIL LH
09282-14007
|
$45.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-4132A
Superseded by 08331-41329
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
