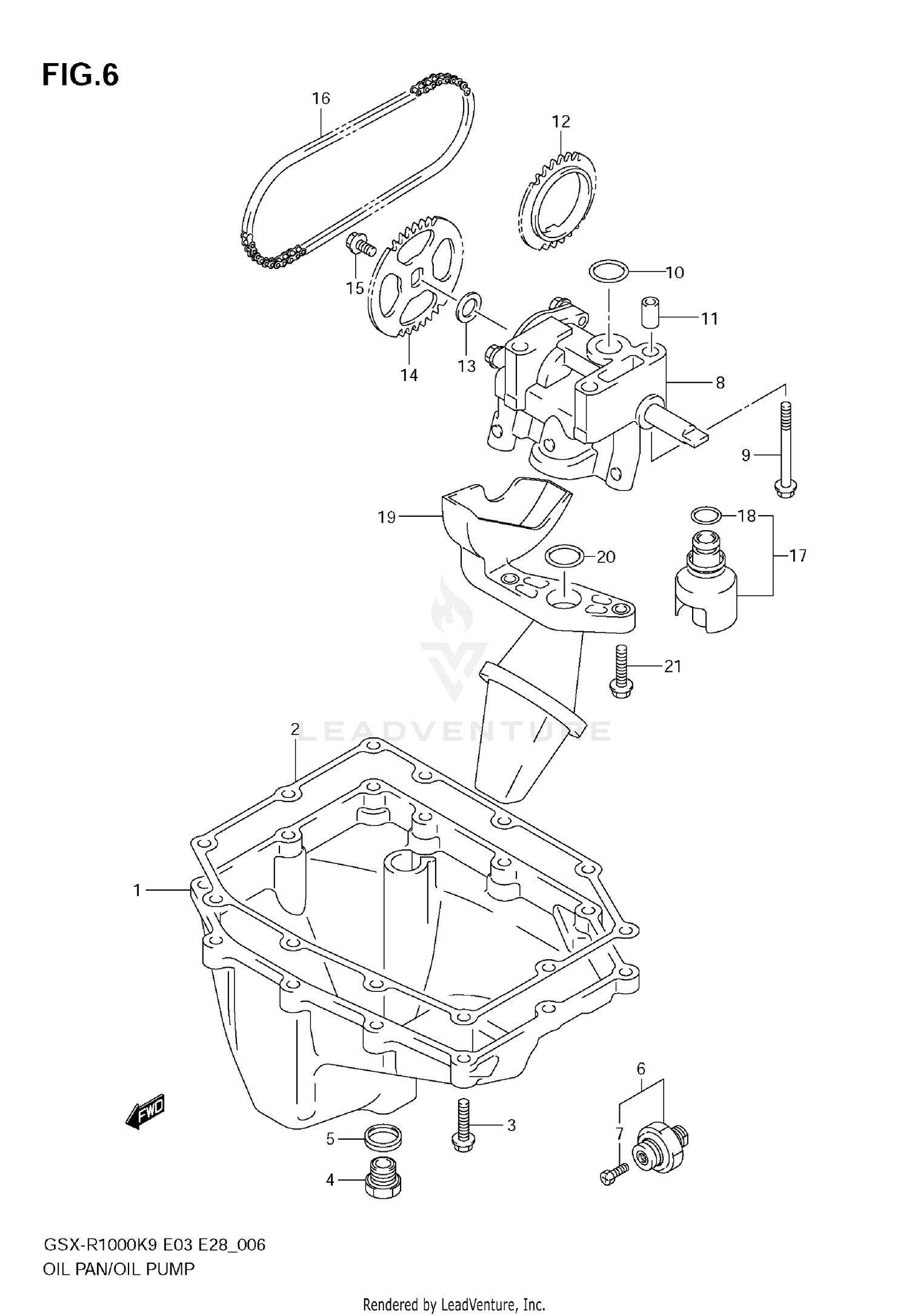

Oil Pan - Oil Pump Diagram

Item MSRP Qty
#1 PAN, OIL
11511-47H00
 $263.91
Available to order.
Add to View Price
#2 GASKET, OIL PAN
11489-47H00
 $23.82
Available to order.
Add to View Price
#3 BOLT
01547-0625A
 $2.37
Available to order.
Add to View Price
#4 PLUG, OIL DRAIN
09247-14036
 $7.26
Available to order.
Add to View Price
#5 GASKET (13.8X18.8X4.8)
09168-14002
 $2.66
Unavailable
#6 SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
 $25.14
Unavailable
#7 .BOLT,OIL PRESSURE SWITCH
37822-33D00
 $4.37
Available to order.
Add to View Price
#8 PUMP ASSY, OIL
16400-47H00
Superseded by 16400-47H10
 $284.21
Available to order.
Add to View Price
#9 .BOLT
01547-0650A
 $2.73
Available to order.
Add to View Price
#10 O-RING (D:2.4,ID:15.8)
09280-15007
 $2.00
Available to order.
Add to View Price
#11 PIN
04211-09149
 $1.93
Available to order.
Add to View Price
#12 SPROCKET, DRIVE
16321-01H00
 $76.89
Available to order.
Add to View Price
#13 WASHER
09181-10158
 $2.29
Available to order.
Add to View Price
#14 SPROCKET, DRIVEN
16331-47H00
 $28.71
Available to order.
Add to View Price
#15 BOLT (6X12)
09103-06285
 $2.29
Available to order.
Add to View Price
#16 CHAIN,OIL PUMP DRIVE
16310-47H00
 $36.41
Available to order.
Add to View Price
#17 VALVE ASSY, OIL RELIEF
16440-47H00
 $72.01
Available to order.
Add to View Price
#18 .O-RING (D:1.9,ID:13)
09280-13004
 $2.55
Available to order.
Add to View Price
#19 STRAINER, ENGINE OIL
16520-47H00
Superseded by 16520-47H01
 $37.08
Available to order.
Add to View Price
#20 O RING
09280-19008
 $6.47
Available to order.
Add to View Price
#21 BOLT (6X20)
01550-0620A
 $2.29
Available to order.
Add to View Price
