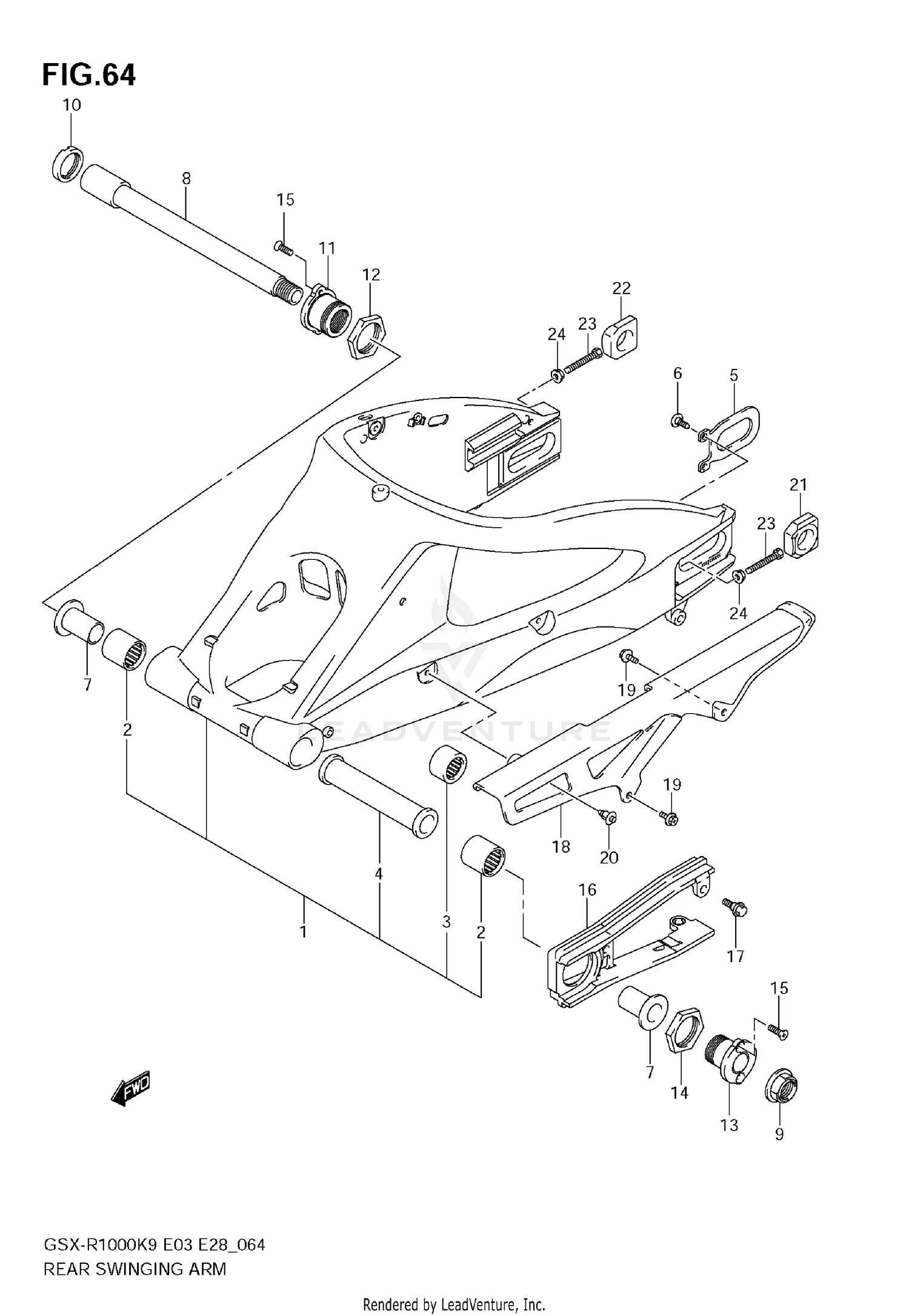

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASS
61000-47H00-YAP
Superseded by 61000-47H11-YAP
|
$2,279.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$32.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CUSHION ROD
09263-20070
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, CENTER
61281-41G00
|
$55.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,RR SWING ARM BRKT
61124-41G00
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
09125-06060
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
61251-41G00
|
$45.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-47H00
|
$125.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20006
|
$31.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, PIVOT
61214-42E00
Superseded by 61214-42E10
|
$42.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, RR SWGARM PIVOT, R
61212-47H00
|
$81.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, RR SWGARM PIVOT BOSS, R
61213-41G00
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOSS, RR SWGARM PIVOT, L
61214-47H00
|
$68.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, RR SWGARM PIVOT BOSS, L
61215-41G00
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BOSS
02122-0512B
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUFFER, CHAIN TOUCH DEFENSE
61273-47H00
Superseded by 61273-47H01
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
09111-06072
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, CHAIN NO.1
61311-21H00
|
$63.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X12)
63161-43E00
Superseded by 09111-06107
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER,CHAIN
61445-40F20
Superseded by 61445-40F00
|
$55.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
ADJUSTER,CHAIN
61446-40F10
Superseded by 61446-40F00
|
$55.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X50)
09100-08305
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08316-1008A
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
