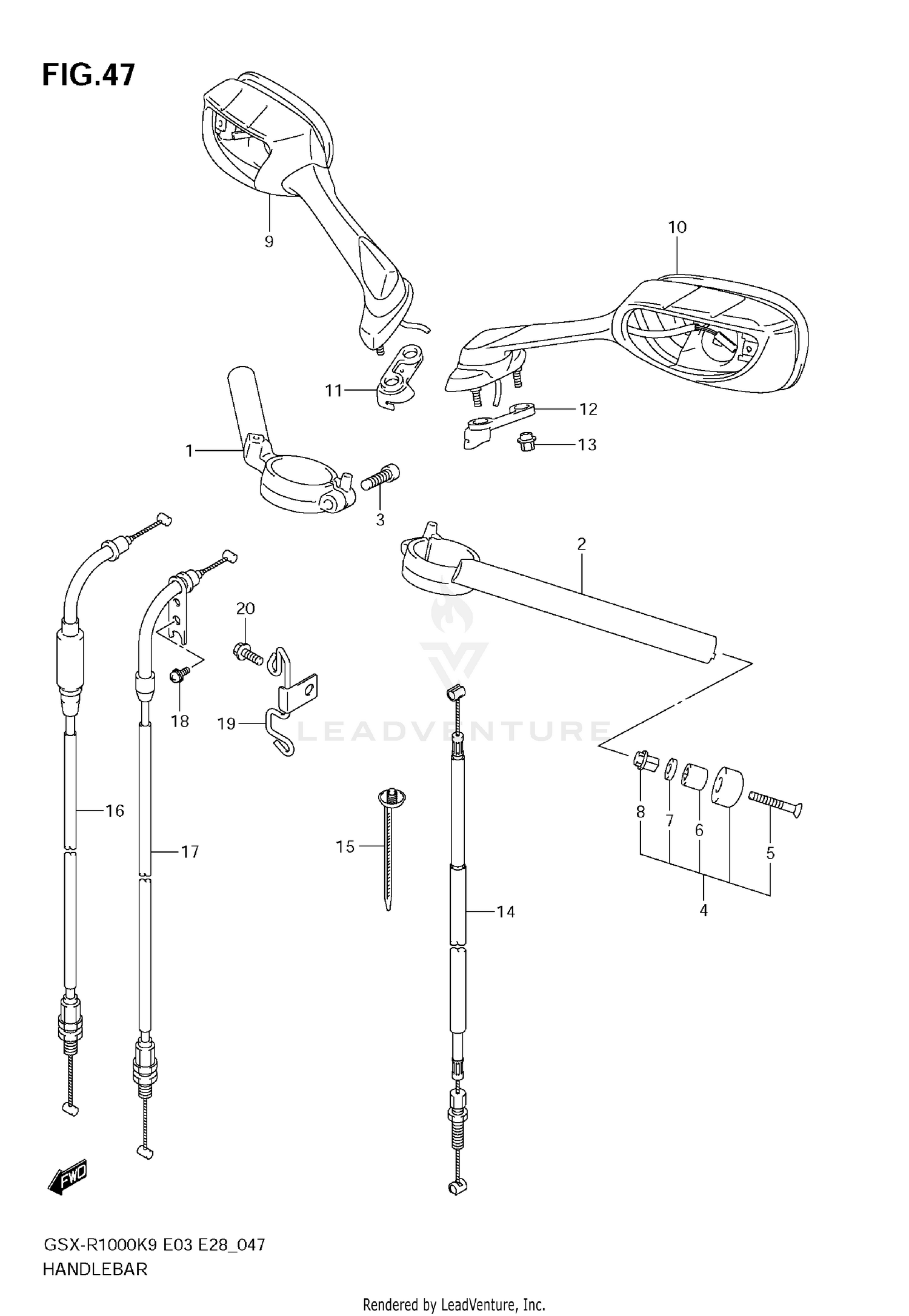

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR, R
56111-47H00
Superseded by 56111-47H01
|
$158.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANDLEBAR, LH
56151-47H00
|
$158.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09106-08185
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER SET,HANDLEBAR
56200-41822
Superseded by 56200-41823
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02122-0640B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06131
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
.EXPANDER,HANDLE BALANCER
56272-10G00
Superseded by 56272-10G01
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
56273-10G10
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR ASSY,REAR VIEW RH
56500-47H00
Superseded by 56500-47H01
|
$204.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
MIRROR ASSY,REAR VIEW LH
56600-47H00
Superseded by 56600-47H01
|
$204.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION, RH
94575-47H00
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, LH
94576-47H00
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,RR VIEW MIRROR
56619-41G01
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE ASSY, CLUTCH
58200-47H00
|
$47.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09407-17403
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE ASSY,THRO
58300-47H00
Superseded by 58300-47H01
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE ASSY,THRO
58300-47H10
Superseded by 58300-47H11
|
$43.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, CASE
09125-05042
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, THROTTLE CABLE
58620-47H00
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01547-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
