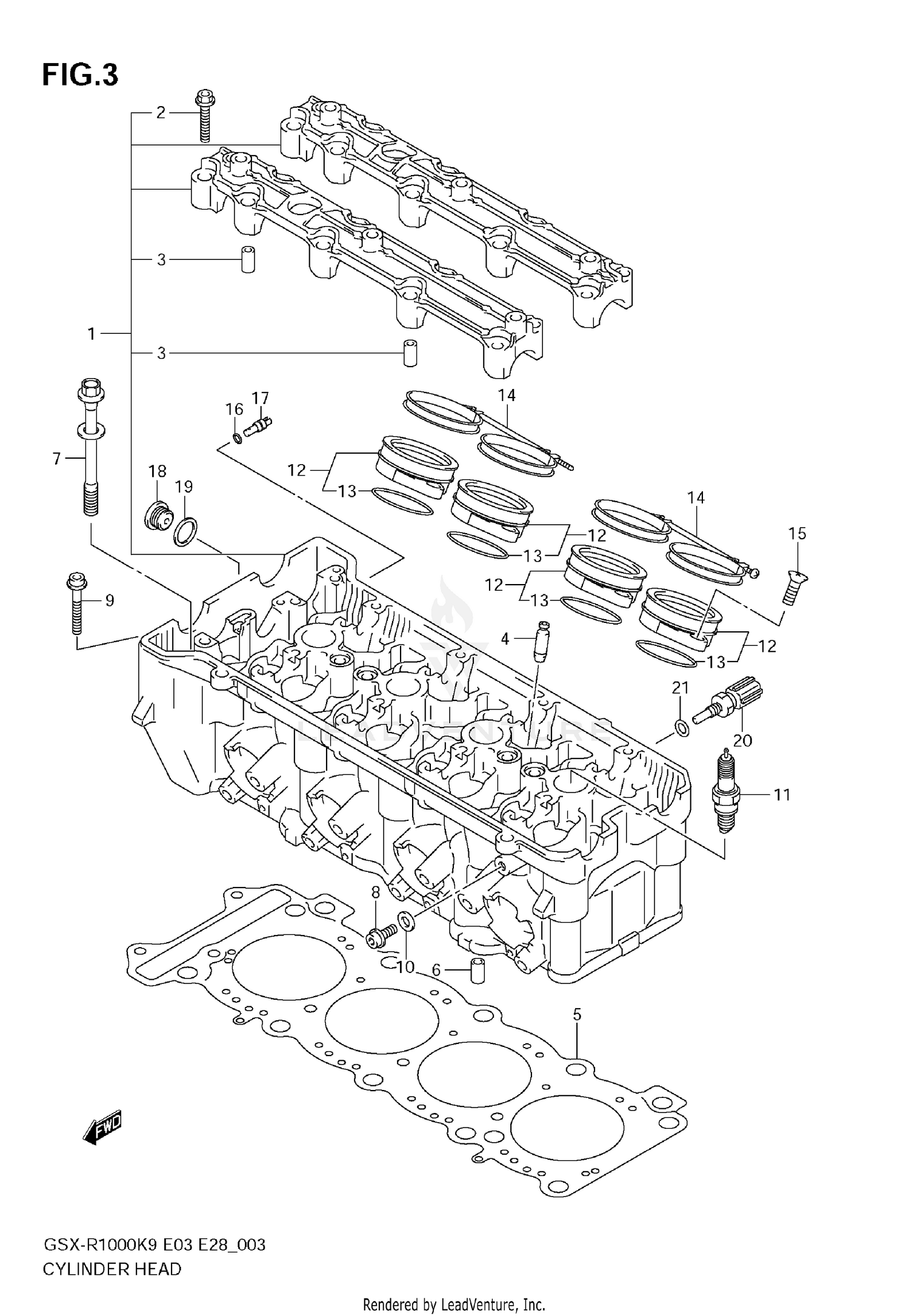

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-47H00
|
$1,743.25 | ||
|
Unavailable |
|||
|
#2
BOLT
09103-06266
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-08007
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE (OS 0.3)
11115-29G70
|
$38.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
11141-47H00
Superseded by 11141-47H01
|
$109.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-11169
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CYLINDER HEAD (L:105)
11117-30G00
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, OIL GALLERY
09103-06222
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CYLINDER HEAD
07120-0650A
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
09168-06023
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG,SPARK (CR9EIA-9)
09482-00558
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG,SPARK (IU27D)
09482-00557
|
$19.53 | ||
|
Unavailable |
|||
|
#11
PLUG,SPARK (CR8EIA-9)
09482-00556
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPARK PLUG (NGK,CR10EIA-9)
09482-00560
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG,SPARK (IU24D)
09482-00555
|
$21.13 | ||
|
Unavailable |
|||
|
#11
SPARK PLUG (DENSO,IU31D)
09482-00559
|
$20.12 | ||
|
Unavailable |
|||
|
#12
PIPE ASSY,INTAKE
13101-47H00
Superseded by 13101-47H01
|
$55.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
.O RING (D:2.4,ID:47.2)
09280-48010
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
13170-47H00
|
$33.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02122-0616B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (D:1.2,ID:4)
09280-04004
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, OIL
09493-32006
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG
09248-16012
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09168-16009
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR,TEMP
13650-49X00
|
$106.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
09168-12017
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
