2017 Suzuki GSX-R 1000R Air Intake Pipe (gsx-r1000rl7 E28) OEM Parts

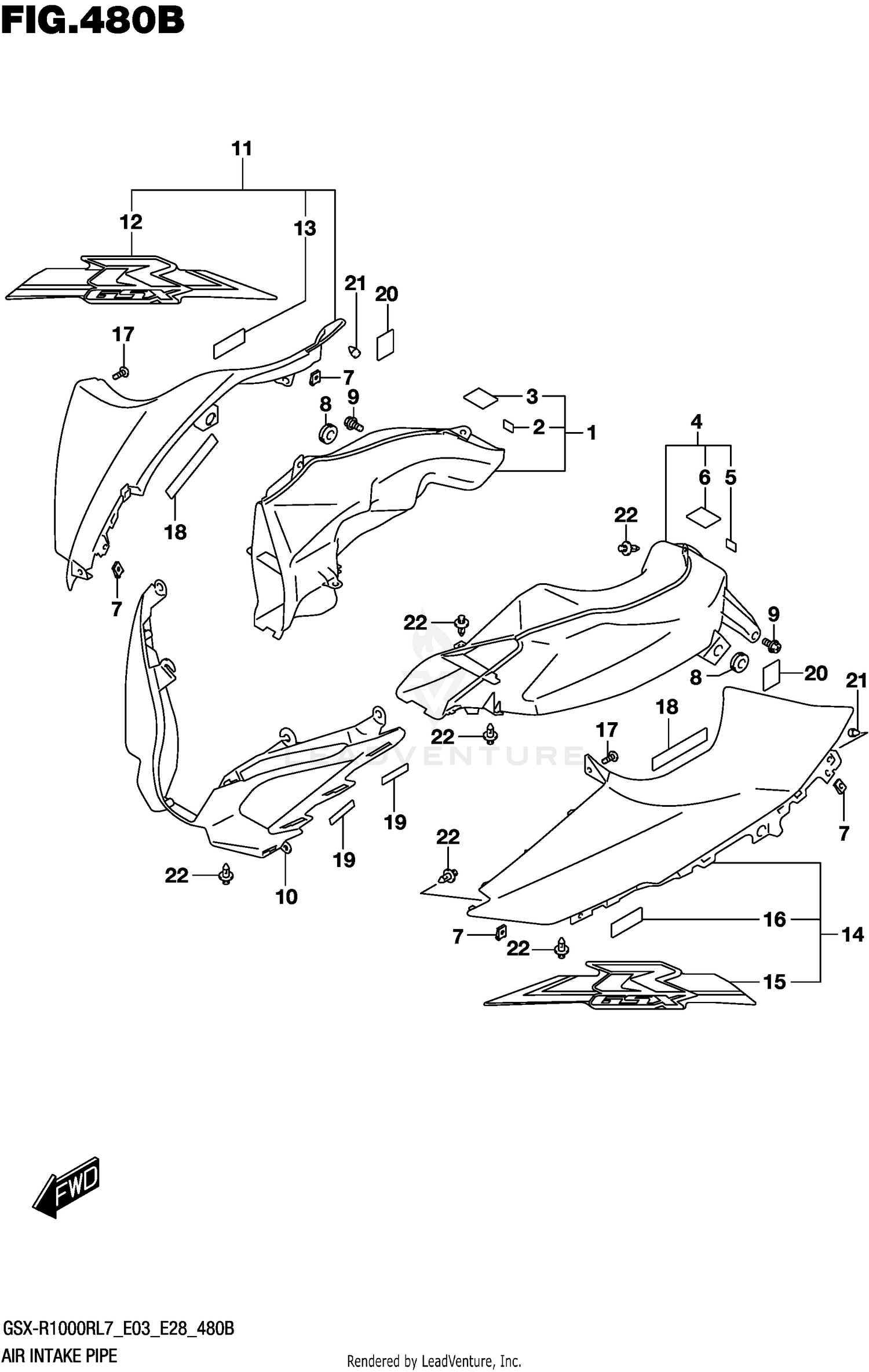

Air Intake Pipe (gsx-r1000rl7 E28) Diagram

Item	MSRP	Qty
#1 PIPE,AIR INTAKE,R 94420-17K00	$68.02
Available to order. Add to View Price
#2 .CUSHION, INTAKE PIPE NO.2 63115-37H00	$4.03
Available to order. Add to View Price
#3 .CUSHION, INATAKE PIPE 36930-60A10	$3.13
Available to order. Add to View Price
#4 PIPE,AIR INTAKE,L 94430-17K00	$68.02
Available to order. Add to View Price
#5 .CUSHION, INTAKE PIPE NO.2 63115-37H00	$4.03
Unavailable
#6 .CUSHION, INATAKE PIPE 36930-60A10	$3.13
Unavailable
#7 NUT (M5) 09148-05052	$3.60
Available to order. Add to View Price
#8 CUSHION (8X26X7) 09320-08028	$3.25
Available to order. Add to View Price
#9 BOLT (6X12) 09111-06106	$2.23
Available to order. Add to View Price
#10 COVER,INTAKE (BLUE) 94671-17K00-YSF	$83.62
Available to order. Add to View Price
#11 COVER, INTAKE RH (BLUE) 94670-17K10-YSF	$172.75
Available to order. Add to View Price
#12 .TAPE, INTAKE COVER RH 68275-17K10-BDJ	$24.98
Available to order. Add to View Price
#13 .PAD (8X20X2) 73415-70A00	$1.57
Unavailable
#14 COVER, INTAKE LH (BLUE) 94680-17K10-YSF	$176.00
Available to order. Add to View Price
#15 .TAPE, INTAKE COVER LH 68276-17K10-BDJ	$24.98
Available to order. Add to View Price
#16 .PAD (8X20X2) 73415-70A00	$1.57
Unavailable
#17 SCREW (5X12) 09132-05050	$1.88
Available to order. Add to View Price
#18 CUSHION, COVER INTAKE NO.1 36930-82010	$3.38
Available to order. Add to View Price
#19 CUSHION, COVER INTAKE CTR 94476-38C00	$2.67
Unavailable
#20 CUSHION, COVER SIDE 94633-31J00	$2.55
Available to order. Add to View Price
#21 CUSHION 09321-06013 Superseded by 09321-06036	$1.62
Available to order. Add to View Price
#22 CLIP 09409-06314 Superseded by 09409-06314-5PK	$2.83
Available to order. Add to View Price
