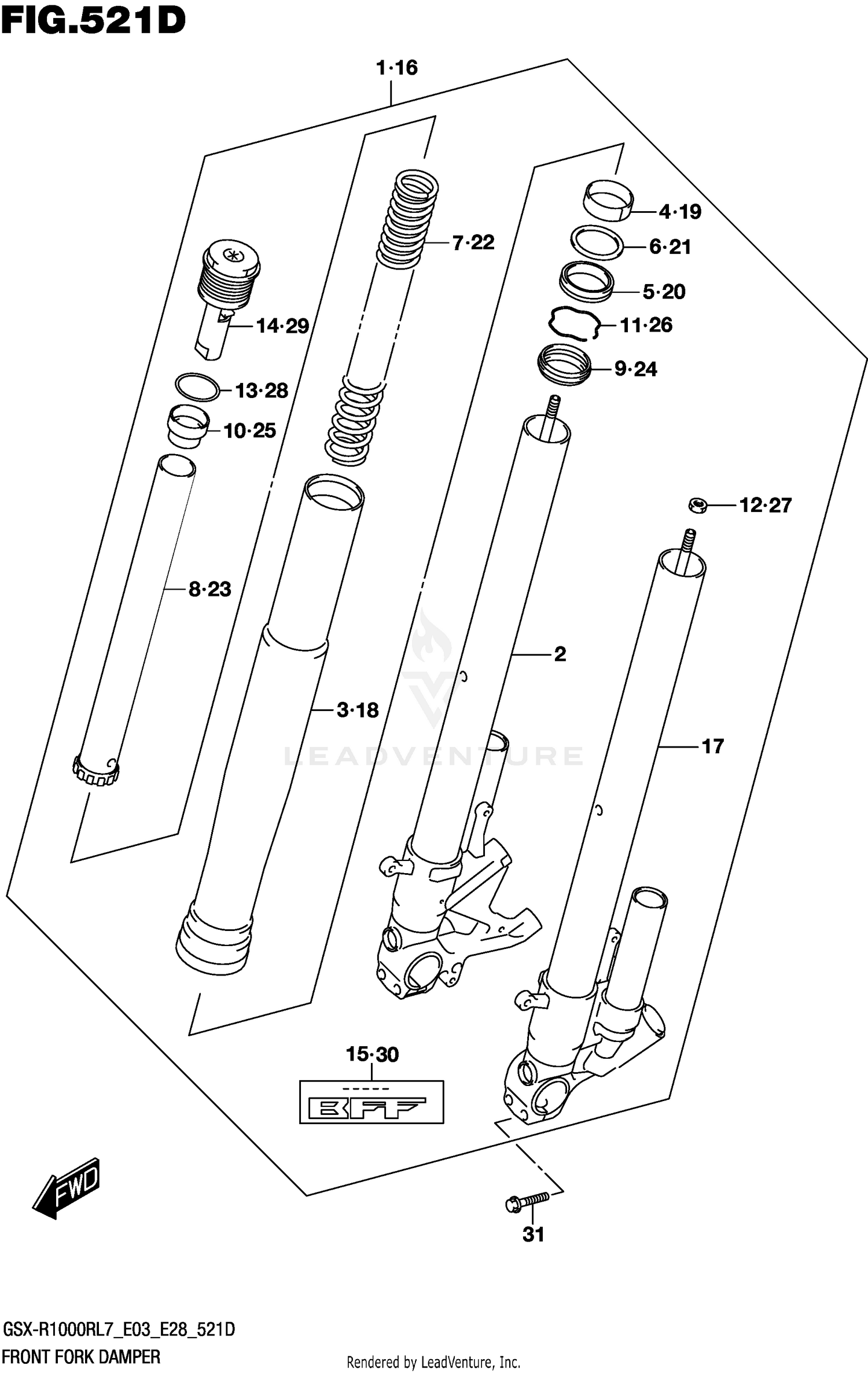

Front Fork Damper (gsx-r1000rzl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FRO
51103-17K20
Superseded by 51103-17K21
|
$3,935.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TUBE, INNER RH
51110-17K20
|
$3,511.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TUBE,OUTER
51131-17K20
|
$625.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BUSH,GUIDE
51152-47H00
|
$16.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL
51153-27G00
|
$27.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SPACER, SEAL
51168-29G00
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
51171-17K10
|
$129.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING COLLAR
51198-17K10
|
$123.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SEAL,DUST
51173-27G00
|
$31.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SPRING COLLAR
51175-17K10
|
$63.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
.RING,STOPPER
51556-38B00
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
.NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#13
.O-RING
51187-47H00
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT
51189-17K20
|
$279.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
.LABEL
68281-17K10
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER ASSY,FRO
51104-17K20
Superseded by 51104-17K21
|
$4,053.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
.TUBE, INNER LH
51120-17K20
|
$3,511.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
.TUBE,OUTER
51131-17K20
|
$625.37 | ||
|
Unavailable |
|||
|
#19
.BUSH,GUIDE
51152-47H00
|
$16.71 | ||
|
Unavailable |
|||
|
#20
.OIL SEAL
51153-27G00
|
$27.14 | ||
|
Unavailable |
|||
|
#21
.SPACER, SEAL
51168-29G00
|
$7.67 | ||
|
Unavailable |
|||
|
#22
.SPRING
51171-17K10
|
$129.25 | ||
|
Unavailable |
|||
|
#23
.SPRING COLLAR
51198-17K10
|
$123.05 | ||
|
Unavailable |
|||
|
#24
.SEAL,DUST
51173-27G00
|
$31.27 | ||
|
Unavailable |
|||
|
#25
.SPRING COLLAR
51175-17K10
|
$63.30 | ||
|
Unavailable |
|||
|
#26
.RING,STOPPER
51556-38B00
|
$8.50 | ||
|
Unavailable |
|||
|
#27
.NUT
51827-29G00
|
$8.62 | ||
|
Unavailable |
|||
|
#28
.O-RING
51187-47H00
|
$8.15 | ||
|
Unavailable |
|||
|
#29
.BOLT
51189-17K20
|
$279.58 | ||
|
Unavailable |
|||
|
#30
.LABEL
68281-17K10
|
$7.53 | ||
|
Unavailable |
|||
|
#31
BOLT
51321-36F00
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
