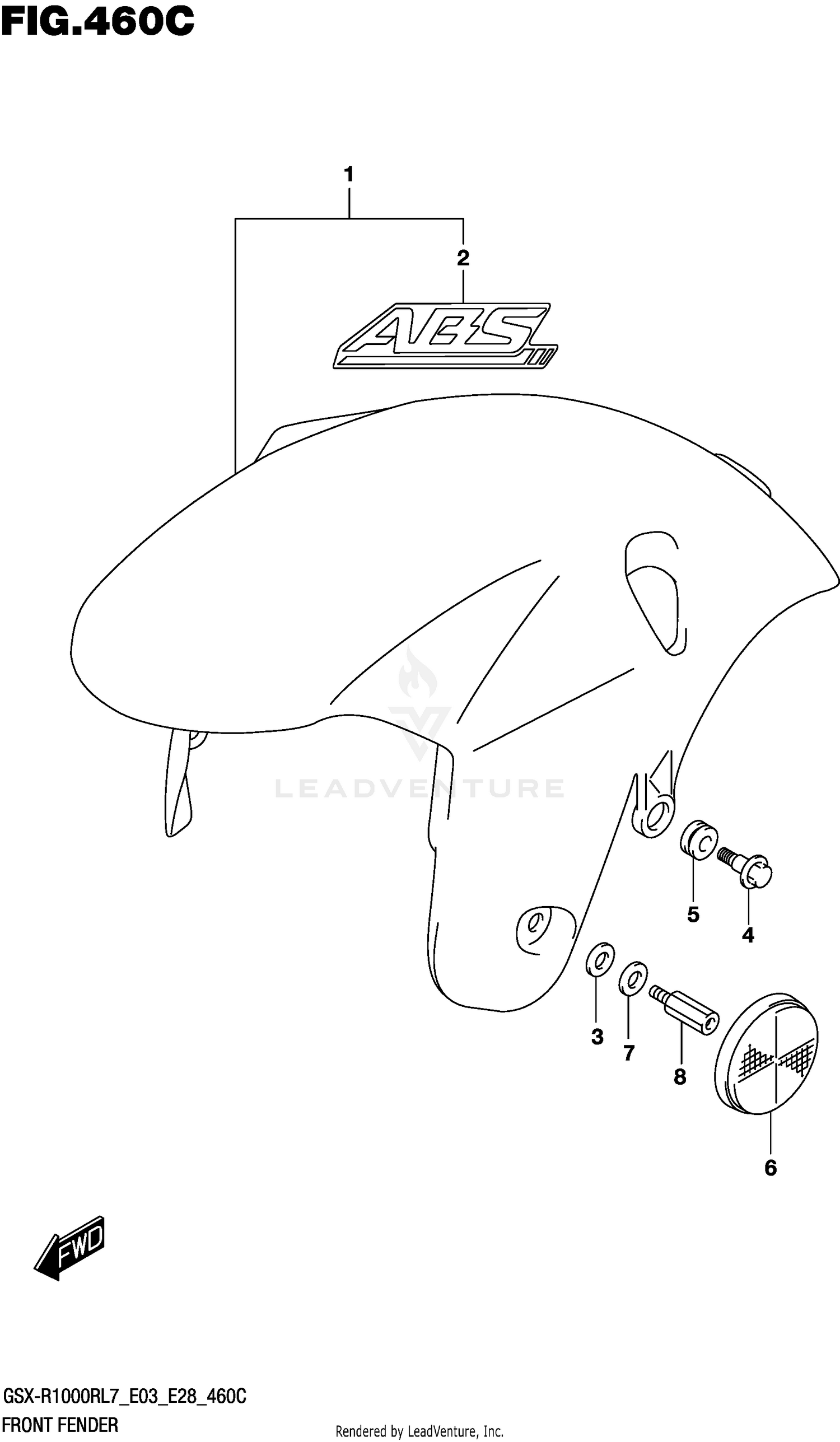

Front Fender (gsx-r1000rl7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,FRONT
53110-17K10-YSF
Superseded by 53110-17K11-YSF
|
$261.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,ABS (GRAY)
68151-44G00-1ZY
Superseded by 68151-44G01-1ZY
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (8.5X16X3.4)
53121-33E00
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X19)
09111-06092
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION (9X18X9.5)
09320-09016
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLEX REFLECTOR ASSY, FR SID
35950-14A11
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (8.5X18X1)
09160-08043
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
35952-17K00
Superseded by 35952-17K01
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
