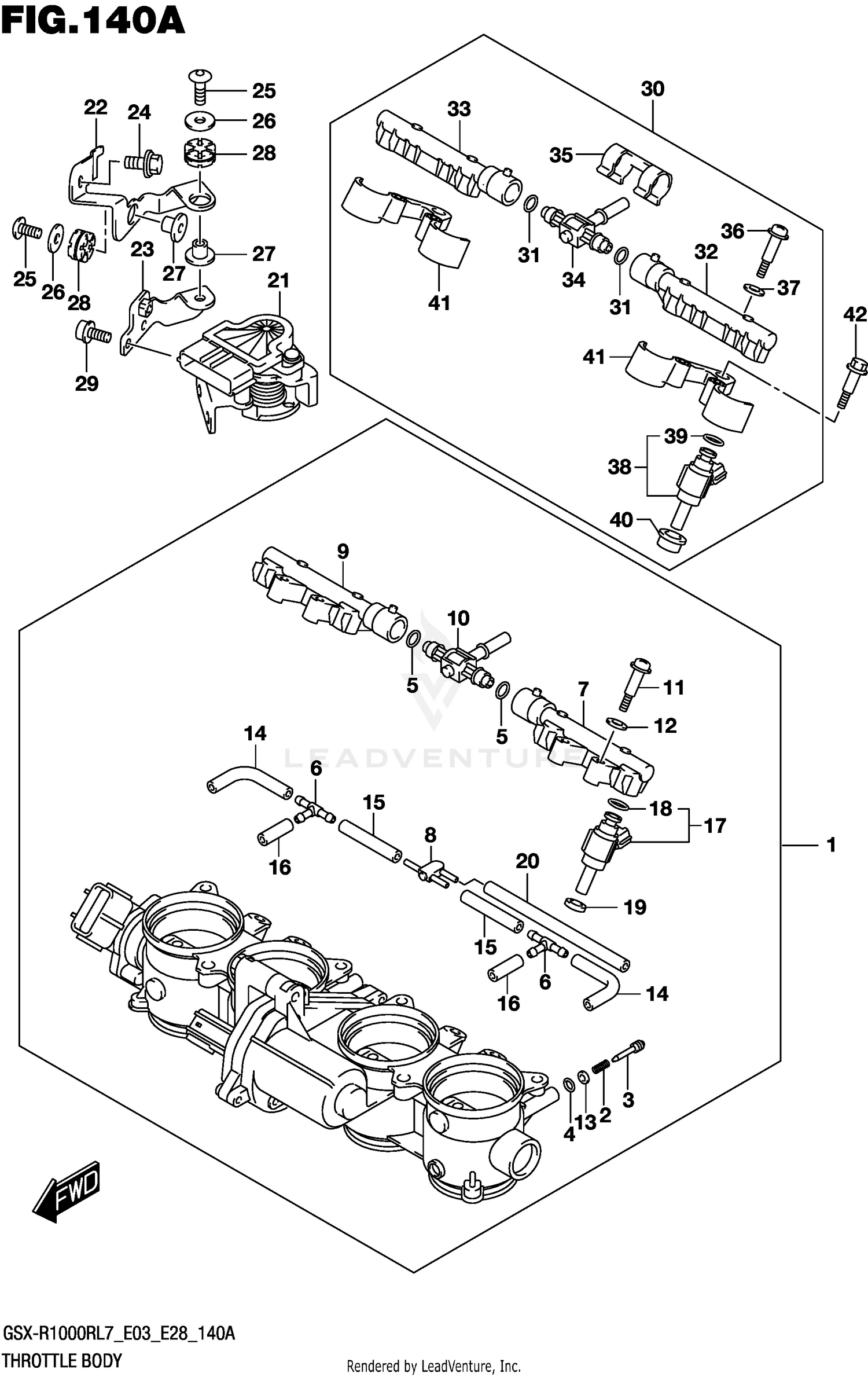

Throttle Body (gsx-r1000rl7 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13405-17K00
Superseded by 13405-17K02
|
$1,343.63 | ||
|
Unavailable |
|||
|
#2
SPRING,THROTTLE SCREW
13268-48700
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
13269-33E00
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
13295-29900
Superseded by 13295-29901
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
13374-32G00
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
.NIPPLE
13685-02FA0
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
.DELIVERY PIPE
13471-17K00
|
$66.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
.JOINT
13471-18H00
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
DELIVERY PIPE
13472-17K00
|
$66.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NIPPLE ASSY
13473-17K00
|
$67.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
13601-29G00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
PACKING
13602-29G00
Superseded by 13602-29G01
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
13606-47A00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (3.2X7.4X60)
13681-39F00-060
Superseded by 13681-39F01-060
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
.HOSE (L:425)
13683-10F60
Superseded by 13683-10F61
|
$16.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
.HOSE (L:425)
13683-10F60
Superseded by 13683-10F61
|
$16.13 | ||
|
Unavailable |
|||
|
#17
.INJECTOR ASSY
15710-04K00
|
$256.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O-RING
15717-58B00
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SEAL
15722-14J00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
.HOSE (L:425)
13683-10F60
Superseded by 13683-10F61
|
$16.13 | ||
|
Unavailable |
|||
|
#21
BODY ASSY,ACCELERATOR
13500-17K00
|
$315.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET,ACCEL SENSOR NO.1
13571-17K00
|
$12.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, ACCEL SENSOR NO.2
13572-17K00
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (6X12)
09116-06197
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
09139-06208
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (6.5X20X1.6)
09160-06088
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER (6.5X10X11.6)
09180-06319
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION
09320-10055
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
07120-0612B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
BODY ASSY,2ND INJECTOR
15900-17K00
|
$589.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
13374-32G00
|
$6.82 | ||
|
Unavailable |
|||
|
#32
.DELIVERY PIPE
13471-17K00
|
$66.80 | ||
|
Unavailable |
|||
|
#33
DELIVERY PIPE
13472-17K00
|
$66.80 | ||
|
Unavailable |
|||
|
#34
NIPPLE ASSY
13473-17K00
|
$67.32 | ||
|
Unavailable |
|||
|
#35
.CLIP
13474-17K00
|
$16.13 | ||
|
Available to order. Add to View Price |
|||
|
#36
.SCREW
13601-29G00
|
$3.80 | ||
|
Unavailable |
|||
|
#37
PACKING
13602-29G00
Superseded by 13602-29G01
|
$2.57 | ||
|
Unavailable |
|||
|
#38
.INJECTOR ASSY
15710-17K10
|
$232.05 | ||
|
Available to order. Add to View Price |
|||
|
#39
.O-RING
15717-58B00
|
$11.05 | ||
|
Unavailable |
|||
|
#40
.INSULATOR
15722-17K00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#41
.BRACKET,2ND INJECTOR
15910-17K00
|
$48.52 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
09111-06250
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
