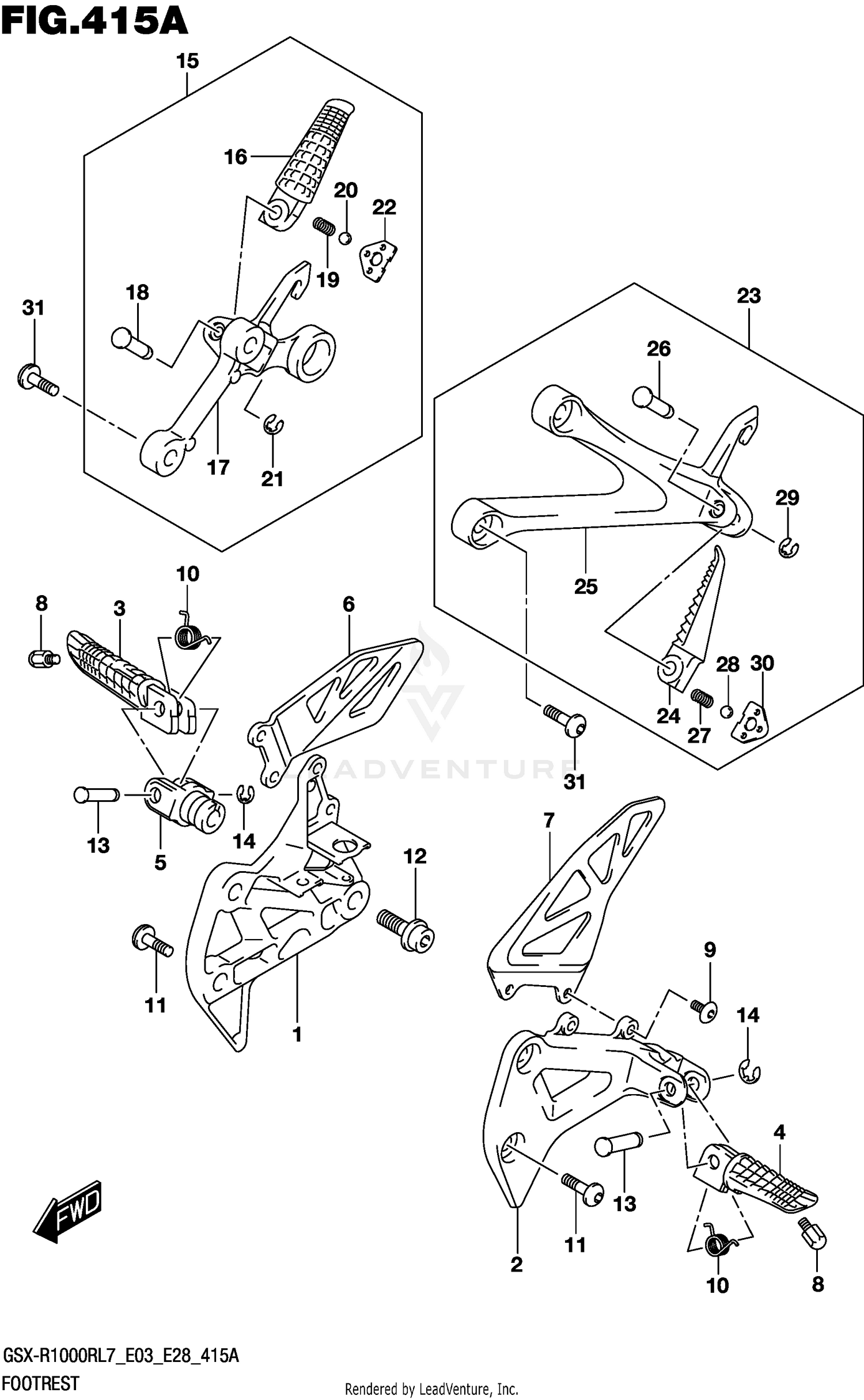

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET,FR FOOTREST,R
43511-17K00
|
$111.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET,FR FOOTREST,L
43521-17K00
|
$123.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAR,FRONT FOOTREST,R
43516-37H10
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAR,FRONT FOOTREST,L
43526-37H10
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER,FOOTREST
43531-41G20
|
$86.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD,FR FOOTREST,R
43571-17K00
|
$81.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD,FR FOOTREST,L
43576-17K00
|
$81.43 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,BANK SENSOR
43576-48B40
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,FOOTREST GUARD LH
43577-35F10
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FRONT FOOTREST
43581-47H00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X23)
09106-08186
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (10X28)
09106-10064
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
09208-08018
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
E-RING
08332-1106A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOTREST ASSY,PILLION,R
43600-17K00
|
$193.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
.BAR, PILLION FOOTREST RH
43611-37H30
|
$49.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BRACKET,PILLION FOOTREST,R
43811-17K00
|
$137.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
.PIN
09208-08020
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SPRING
09440-05005
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BALL
06111-07004
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
E-RING
08332-1106A
|
$1.52 | ||
|
Unavailable |
|||
|
#22
.PLATE,PILLION FOOTREST
43816-01H20
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
FOOTREST ASSY,PILLION,L
43700-17K00
|
$192.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
.BAR, PILLION FOOTREST LH
43621-37H30
|
$52.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
.BRACKET,PILLION FOOTREST,L
43821-17K00
|
$137.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
.PIN
09208-08020
|
$3.05 | ||
|
Unavailable |
|||
|
#27
.SPRING
09440-05005
|
$1.45 | ||
|
Unavailable |
|||
|
#28
.BALL
06111-07004
|
$1.30 | ||
|
Unavailable |
|||
|
#29
E-RING
08332-1106A
|
$1.52 | ||
|
Unavailable |
|||
|
#30
.PLATE,PILLION FOOTREST
43816-01H20
|
$6.22 | ||
|
Unavailable |
|||
|
#31
BOLT (8X23)
09106-08186
|
$3.65 | ||
|
Unavailable |
|||
