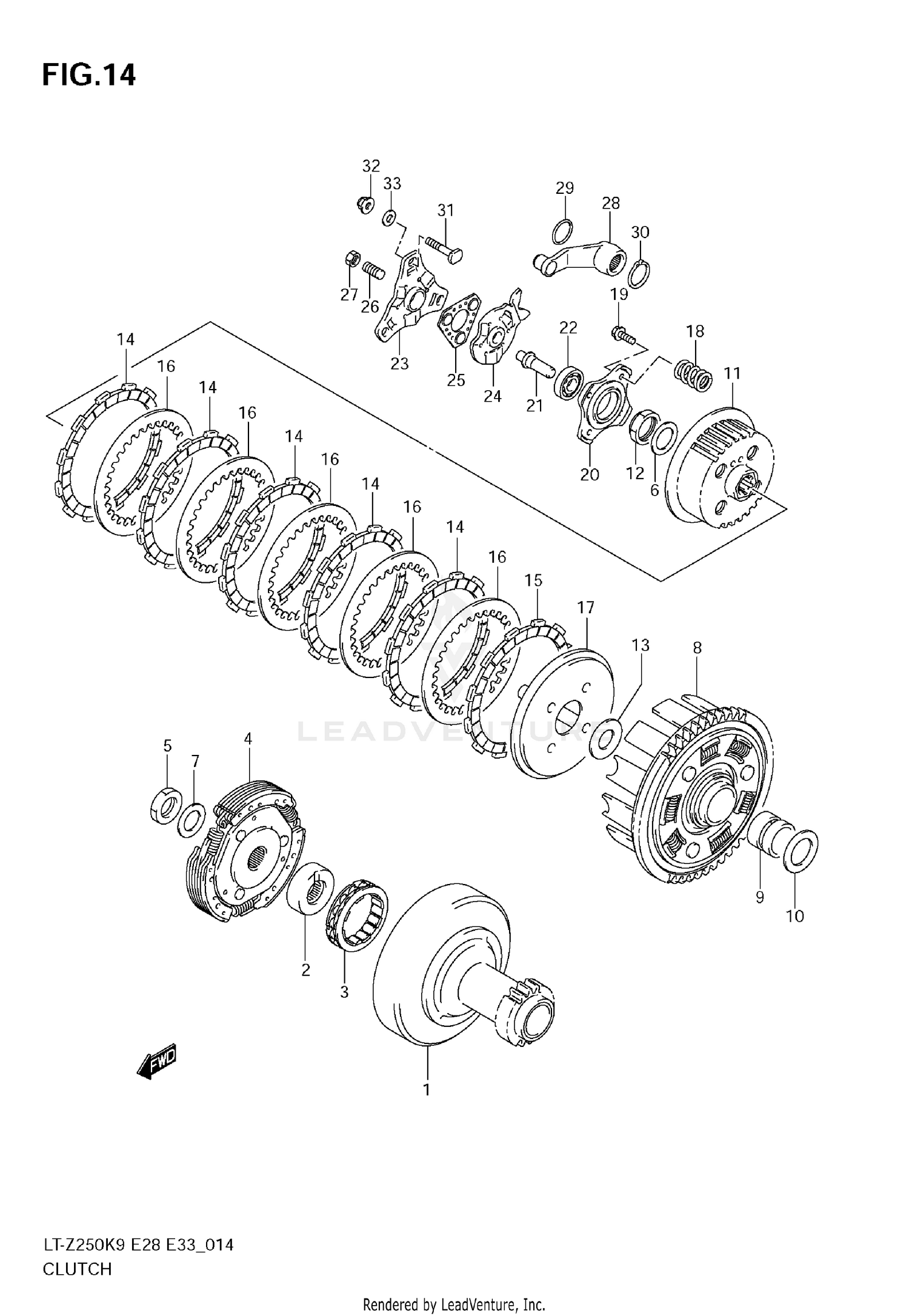

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (NT:21)
21110-21G00
|
$204.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, INNER
21631-19B11
|
$34.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH, ONE WAY
21273-19B10
|
$153.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSY
21500-05G10
|
$262.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09140-18012
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER (ID:20.1)
09164-20007
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER (ID:18.3)
09164-18007
Superseded by 09164-18001
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR ASSY, PRIMARY (NT:64)
21200-21G00
|
$245.50 | ||
|
Unavailable |
|||
|
#9
SPACER (22X28X23)
09180-22035
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (22X36X1.0)
09181-22251
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB, CLUTCH
21410-05G00
|
$114.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09140-20019
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
08211-20323
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DRIVE
21441-22A01
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DRIVE NO.2
21441-29B01
|
$25.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, DRIVEN (T:2.0)
21451-36200
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISC, PRESSURE
21462-24501
|
$50.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
09440-19017
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-0620B
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, RELEASE
21465-24500
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIECE, PUSH
23121-05G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (12X28X8)
09262-12001
|
$19.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUIDE, BALL OUTER
23231-05G21
|
$18.76 | ||
|
Unavailable |
|||
|
#24
GUIDE, BALL INNER
23211-05G21
|
$37.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALL, RELEASE
23250-31003
|
$26.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, ADJUSTER
09134-08009
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, ADJUSTER
09140-08021
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
ARM, RELEASE
23220-05G20
|
$88.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, CLUTCH RLSE ARM
08211-10243
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP, CL RLSE ARM
08331-3114A
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
09119-06103
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
08313-2006B
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, BOLT
09168-06023
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
