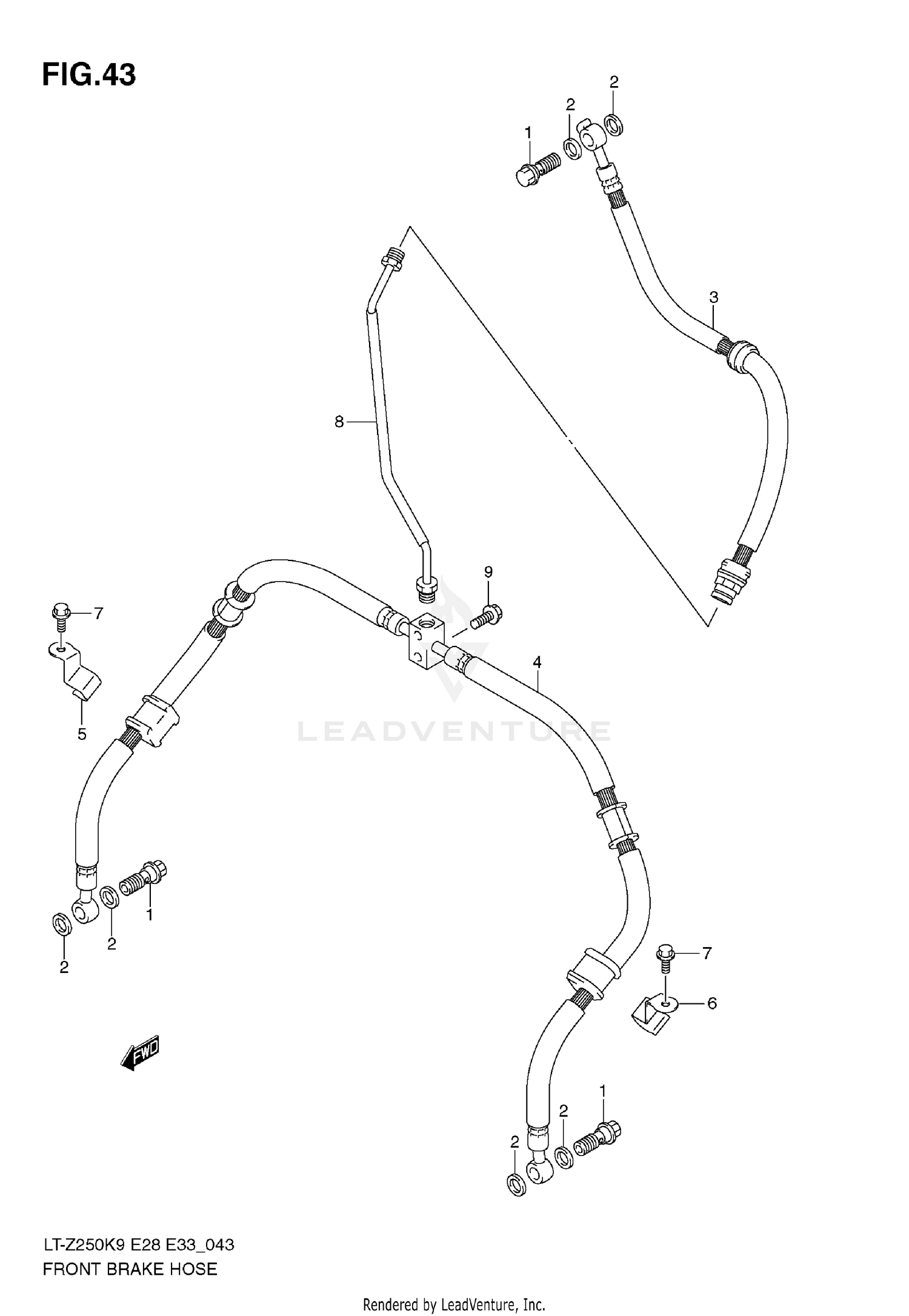

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT
09360-10062
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
.WASHER (10X15X1.5)
09161-10009
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, FRONT BRAKE NO.1
59480-21G10
|
$67.32 | ||
|
Unavailable |
|||
|
#4
HOSE
59240-21G10
Superseded by 59240-21G11
|
$137.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, HOSE NO.2 RH
59261-21G00
|
$10.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, HOSE NO.2 LH
59271-21G00
|
$6.58 | ||
|
Unavailable |
|||
|
#7
BOLT
01547-0610A
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FRONT BRAKE
59250-21G00
|
$10.91 | ||
|
Unavailable |
|||
|
#9
BOLT
01547-0616A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
