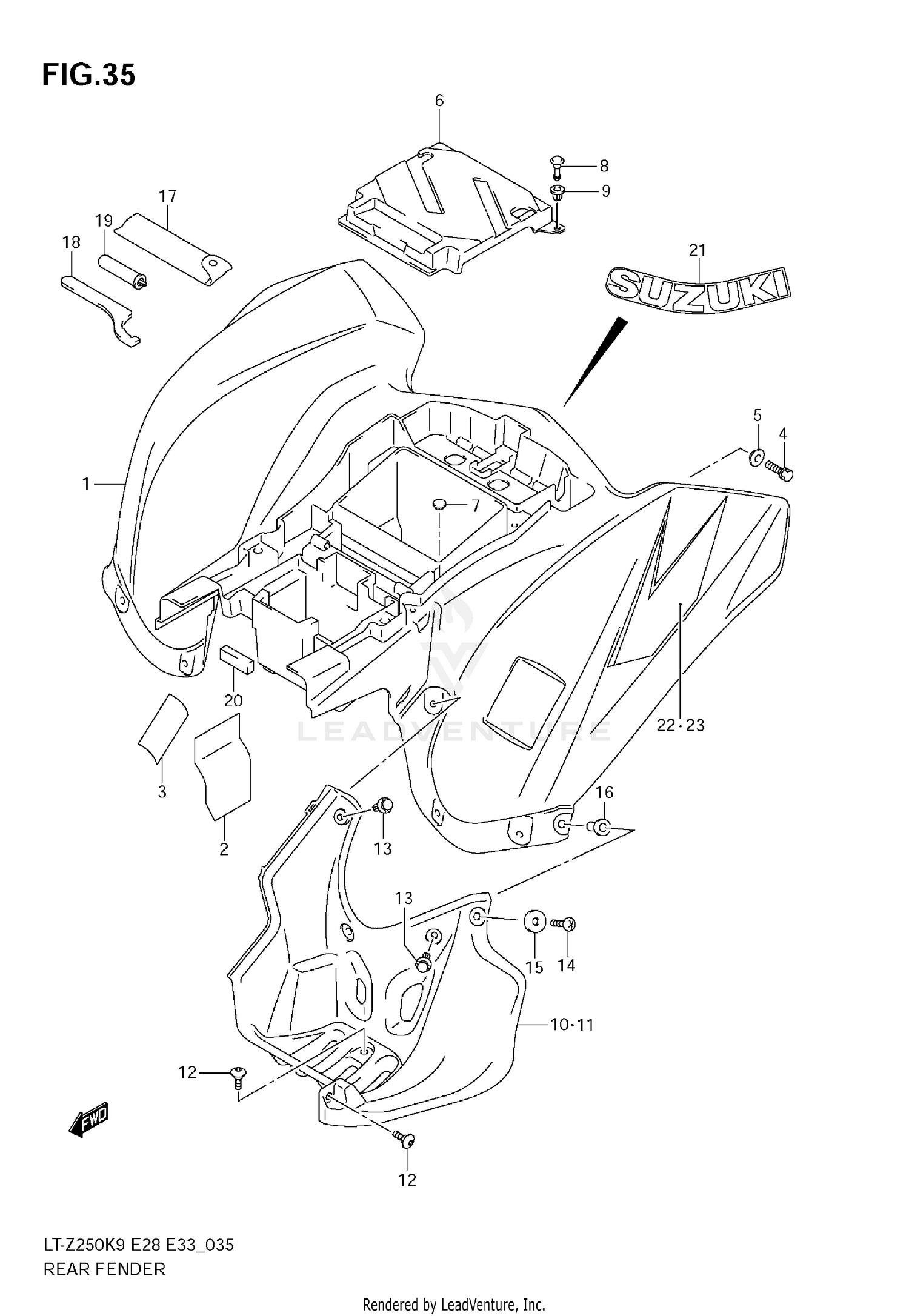

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (YELLOW)
63111-21G01-YU1
|
$788.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, REAR (WHITE)
63111-21G01-30H
|
$593.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIELD, REAR FENDER SIDE
63261-21G00
|
$15.46 | ||
|
Unavailable |
|||
|
#3
SHIELD, REAR FENDER FRONT
63262-21G00
|
$8.62 | ||
|
Unavailable |
|||
|
#4
BOLT, SIDE
01570-0620B
|
|||
|
Unavailable |
|||
|
#5
WASHER
09169-06045
Superseded by 09169-06055
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, REAR FENDER
63121-05G10
|
$44.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP(OD:16)
09250-08007
Superseded by 09250-08020
|
$1.52 | ||
|
Unavailable |
|||
|
#8
CLIP
09409-08329
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
09409-08330
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUD GUARD, FOOTREST RH (BLACK)
63331-21G00-291
|
$93.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUD GUARD, FOOTREST LH (BLACK)
63341-21G00-291
|
$95.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, LOWER
09139-06158
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
09409-08335
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02142-0520B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-05046
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-05019
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOOL ASSY
09800-21044
Superseded by 09800-21093
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, WRENCH
09822-00004
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
GAUGE ASSY, AIR PRESSUR
96200-18A02
|
$55.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR (20X50X11)
33652-03G00
Superseded by 33652-31F00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM
68721-29F00-GY8
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM
68721-29F00-8YM
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE, RH
68175-21G30-GTJ
|
$32.64 | ||
|
Unavailable |
|||
|
#22
TAPE, RH
68175-21G30-GTK
|
$31.99 | ||
|
Unavailable |
|||
|
#23
TAPE, LH
68176-21G30-GTJ
|
$42.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
TAPE, LH
68176-21G30-GTK
|
$32.64 | ||
|
Unavailable |
|||
