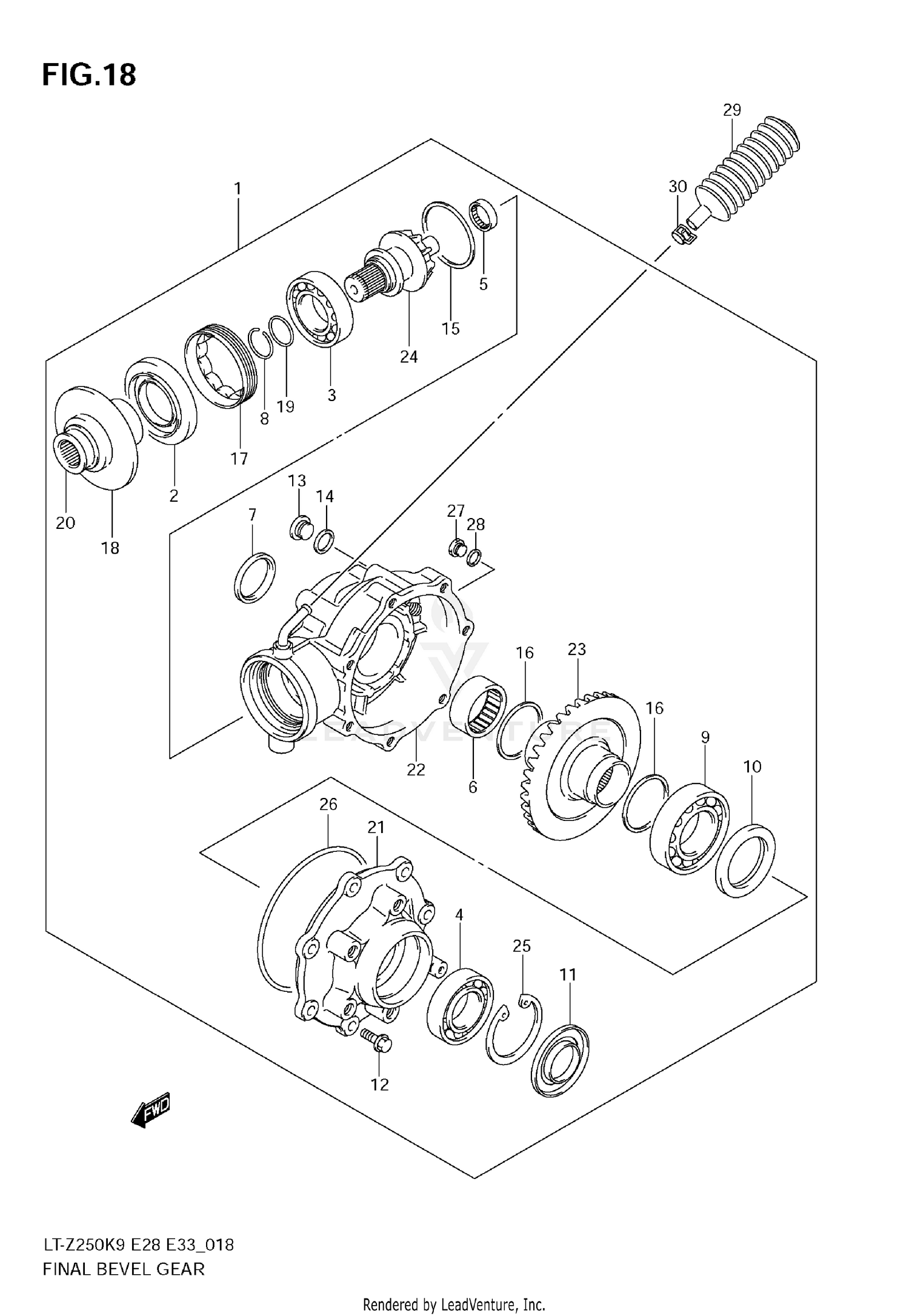

Final Bevel Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY, REAR FINAL GEAR
27400-05G10
|
$1,431.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL (35X69X8)
27406-05GA0
|
$27.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (30X62X16)
27405-05GF0
|
$68.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (30X62X16)
27405-05GF0
|
$68.48 | ||
|
Unavailable |
|||
|
#5
BEARING (15X23X16)
27405-05GB0
|
$46.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (45X52X20)
27405-05GC0
|
$64.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (45X55X7)
27406-05GB0
|
$28.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
C RING (24X1.0)
27403-05GA1
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (45X75X16)
27405-05GD0
|
$85.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (42X62X7)
27406-05GC0
|
$27.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (30X62X7)
27406-05GG0
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
27401-05GC0
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
27409-05GA0
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
27407-05GA0
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM SET, FINAL DRIVE
27407-05810
|
$77.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM SET, FINAL DRIVEN
27407-05820
|
$215.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEARING
27312-05GA0
|
$74.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, OUTPUT OIL SEAL
27592-05GA0
|
$32.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING (D:2.0,ID:25.5)
27406-05GE0
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT, JOINT
27591-05GA1
|
$96.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
CASE, FINAL GEAR LH
27461-05GA1
|
$215.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
CASE, FINAL GEAR RH
27450-05GA1
|
$527.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, FINAL DRIVEN BEVEL
27321-05GA0
|
$301.03 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, FINAL DRIVEN BEVEL
27311-05GA0
|
$225.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
27403-05GB0
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING (D:3.5,ID:130)
27406-05GF0
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, OIL CHECK
27401-05GB0
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, OIL CHECK
27407-05GD0
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#29
CASE,BREATHER
27491-38F00
Superseded by 27491-38F10
|
$20.53 | ||
|
Unavailable |
|||
|
#30
CLAMP, BREATHER CASE
09401-08411
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
