2009 Suzuki QUADSPORT Z250 Rear Combination OEM Parts

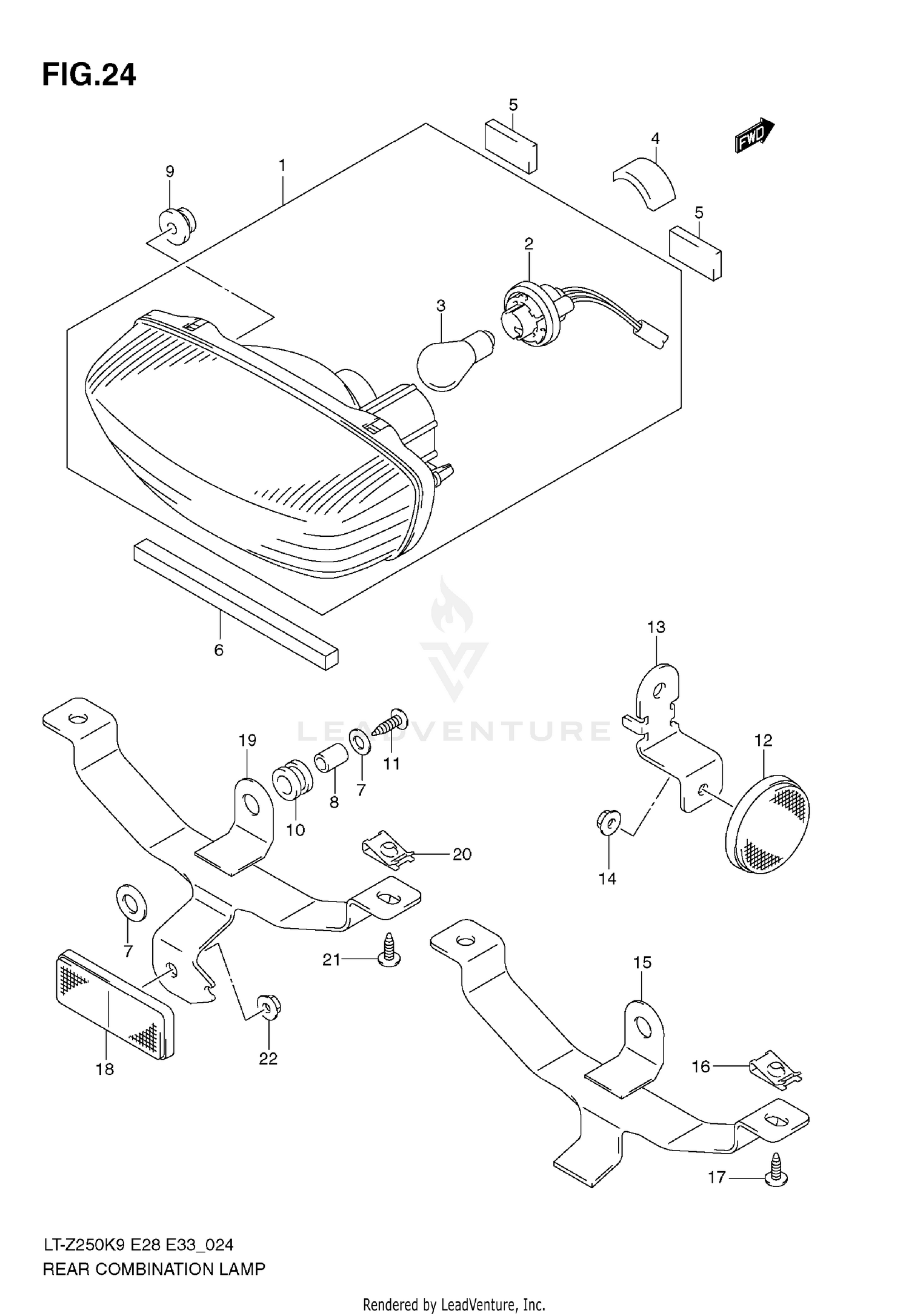

Rear Combination Diagram

Item	MSRP	Qty
#1 LAMP ASSY, REAR COMB 35710-03G30	$55.05
Available to order. Add to View Price
#2 SOCKET & CORD ASSY 35718-03G30	$29.23
Available to order. Add to View Price
#3 BULB (12V,21/5W) 09471-12128	$7.20
Available to order. Add to View Price
#4 PROTECTOR (50X50X5) 33652-20C00	$3.32
Available to order. Add to View Price
#5 PROTECTOR (50X50X5) 33652-20C00	$3.32
Unavailable
#6 CUSHION (10X100X10) 33652-21G20	$3.87
Available to order. Add to View Price
#7 WASHER (5.5X16X1.2) 09160-05037	$1.57
Available to order. Add to View Price
#8 SPACER (5.5X8X10.5) 09180-05048	$2.15
Available to order. Add to View Price
#9 CUSHION 09320-06023	$2.65
Available to order. Add to View Price
#10 CUSHION (8X18X10) 09320-08501	$3.45
Available to order. Add to View Price
#11 SCREW 03541-0525B	$2.45
Available to order. Add to View Price
#12 REFLECTOR ASSY,RR SIDE 35970-14A20	$16.77
Available to order. Add to View Price
#13 BRACKET, REAR SIDE RR RH 35975-07G00
Unavailable
#14 NUT 08316-1005B	$2.65
Available to order. Add to View Price
#15 BRACKET, REAR COMB 35974-21G10	$9.35
Available to order. Add to View Price
#16 NUT 09148-05020	$2.00
Available to order. Add to View Price
#17 SCREW 03541-0516B	$1.88
Available to order. Add to View Price
#18 REFLECTOR ASSY,RR 35970-07F01	$23.17
Available to order. Add to View Price
#19 BRACKET, REAR COMB 35974-21G00
Unavailable
#20 NUT, BRACKET 09148-05020	$2.00
Unavailable
#21 SCREW 03541-0516B	$1.88
Unavailable
#22 NUT 08316-1005B	$2.65
Unavailable
