2009 Suzuki QUADSPORT Z250 Front Wheel OEM Parts

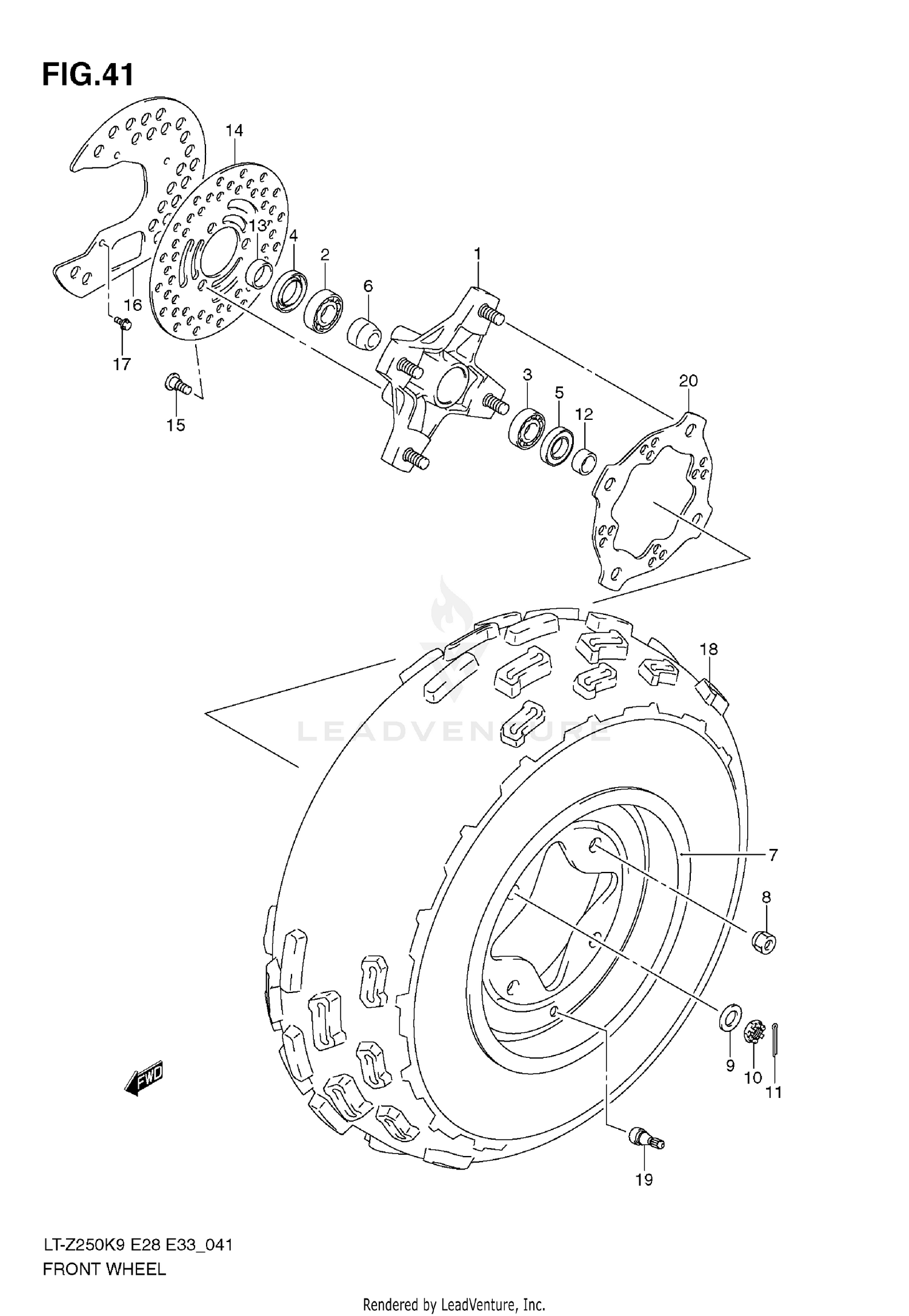

Front Wheel Diagram

Item	MSRP	Qty
#1 HUB, FRONT WHEEL 54110-07G00-019	$266.33
Available to order. Add to View Price
#2 BEARING 08120-60047 Superseded by 08120-6004B	$17.35
Available to order. Add to View Price
#3 BEARING (15X35X11) 09262-15024	$26.55
Available to order. Add to View Price
#4 DUST SEAL INNER 09284-26002	$11.68
Available to order. Add to View Price
#5 DUST SEAL OUTER 09284-21001	$13.68
Available to order. Add to View Price
#6 SPACER, FRONT HUB BEARING 54731-07G01 Superseded by 54731-07G10	$16.25
Available to order. Add to View Price
#7 RIM, FRONT WHEEL (10X5.5AT) 55310-07G10	$524.15
Available to order. Add to View Price
#8 NUT 09159-10114	$5.67
Available to order. Add to View Price
#9 WASHER 09160-15052	$3.45
Available to order. Add to View Price
#10 NUT, HUB 08314-4014A	$4.02
Available to order. Add to View Price
#11 PIN, COTTER 04111-3025A	$1.45
Available to order. Add to View Price
#12 SPACER, FRONT AXLE 09180-15068	$5.23
Available to order. Add to View Price
#13 SPACER, FR AXLE NO.2 09180-20119	$7.82
Available to order. Add to View Price
#14 DISC, FRONT BRAKE 59211-07G00	$172.02
Available to order. Add to View Price
#15 BOLT, BRAKE DISC 09106-08160	$3.82
Available to order. Add to View Price
#16 COVER, FRONT DISC 59231-07G20	$49.28
Available to order. Add to View Price
#17 BOLT 09103-06285	$2.08
Available to order. Add to View Price
#18 TIRE,FRONT 55110-21G10 Superseded by 55110-21G20	$433.82
Available to order. Add to View Price
#19 VALVE ASSY,WHEEL RIM (TR412) 43130-24A00	$9.82
Available to order. Add to View Price
#20 PLATE, FRONT HUB 54138-07G10	$17.25
Available to order. Add to View Price
