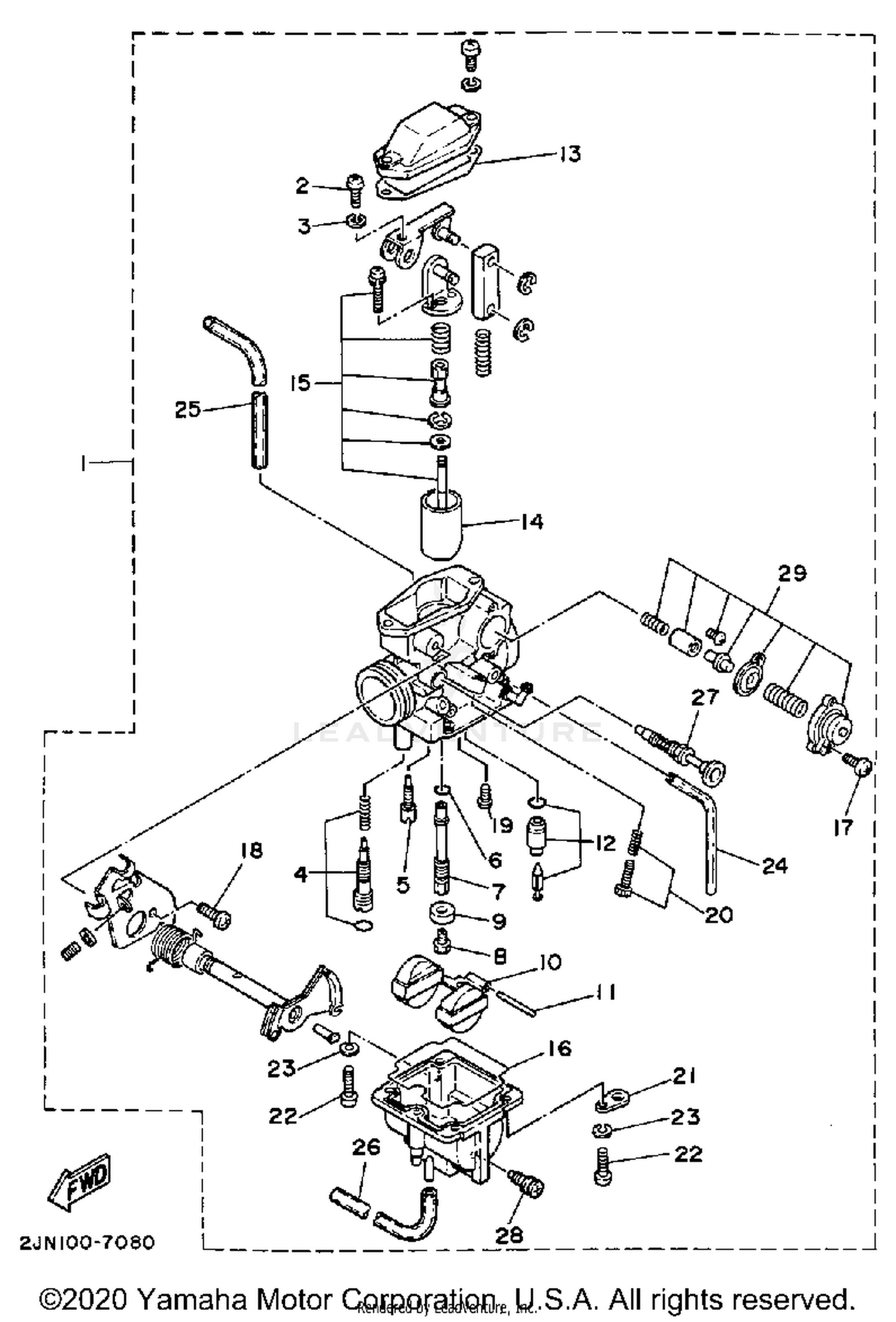

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
2JN-14301-00-00
|
$377.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-04016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
PILOT SCREW SET (30X-14105-00
51Y-14105-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, PILOT (40)
2JN-14342-23-00
|
$14.26 | ||
|
Unavailable |
|||
|
#6
GASKET
360-24512-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE, MAIN
2JN-14341-00-00
|
$27.71 | ||
|
Unavailable |
|||
|
#8
JET, MAIN (#140)
288-14343-70-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BAFFLE
1KH-14153-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT
2JN-14385-00-00
Superseded by 25N-14385-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, FLOAT
6E5-14386-01-00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEEDLE VALVE SET
2JN-14107-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
2JN-14198-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, THROTTLE 1
2JN-14312-40-00
|
$41.88 | ||
|
Unavailable |
|||
|
#15
NEEDLE SET
2JN-1490J-00-00
|
$23.86 | ||
|
Unavailable |
|||
|
#16
GASKET, FLOAT CHAMBER
5Y1-14384-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-04010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98580-04010-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
SCREW,BIND
98901-04006-00
Superseded by 98980-04006-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
THROTTLE SCREW SET
3WP-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
5Y1-14146-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Unavailable |
|||
|
#24
PIPE
2JN-14197-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#25
PIPE
56R-14196-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE
5Y1-14396-00-00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUNGER, STARTER
2JN-14371-00-00
|
$41.56 | ||
|
Unavailable |
|||
|
#28
PLUG, SCREW
5Y1-14115-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DIAPHRAGM SET 1
5Y1-1490A-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
