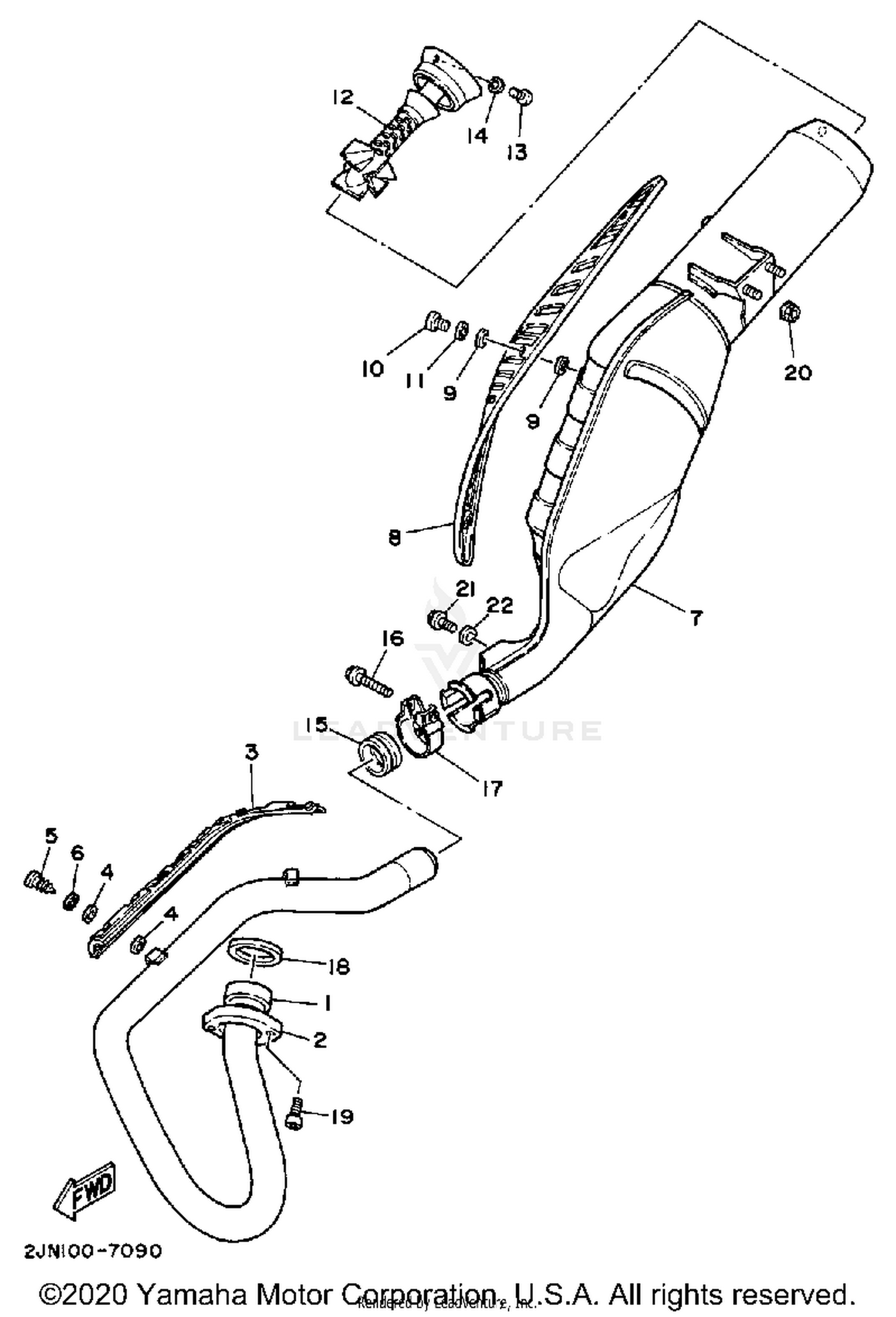

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, RING
2JN-14612-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#2
NUT, RING
2JN-14612-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#3
PROTECTOR, EXHAUST PIPE
54G-14628-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#5
SCREW, TAPPING
90164-06017-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-06090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER L
2JN-14711-00-00
|
$308.99 | ||
|
Unavailable |
|||
|
#8
PROTECTER, MUFF 2
2JN-14728-00-00
|
$89.55 | ||
|
Unavailable |
|||
|
#9
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#10
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, WAVE
90206-06090-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
PIPE, OUTLET
2JN-14752-00-00
|
$52.66 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, MUFFLER
1T1-14714-02-00
Superseded by 4EL-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95816-08045-00
Superseded by 95817-08045-00
|
$3.69 | ||
|
Unavailable |
|||
|
#18
GASKET, EXHAUST PIPE
90430-38054-00
Superseded by 3GD-14613-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-081H4-00
Superseded by 90201-08326-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
