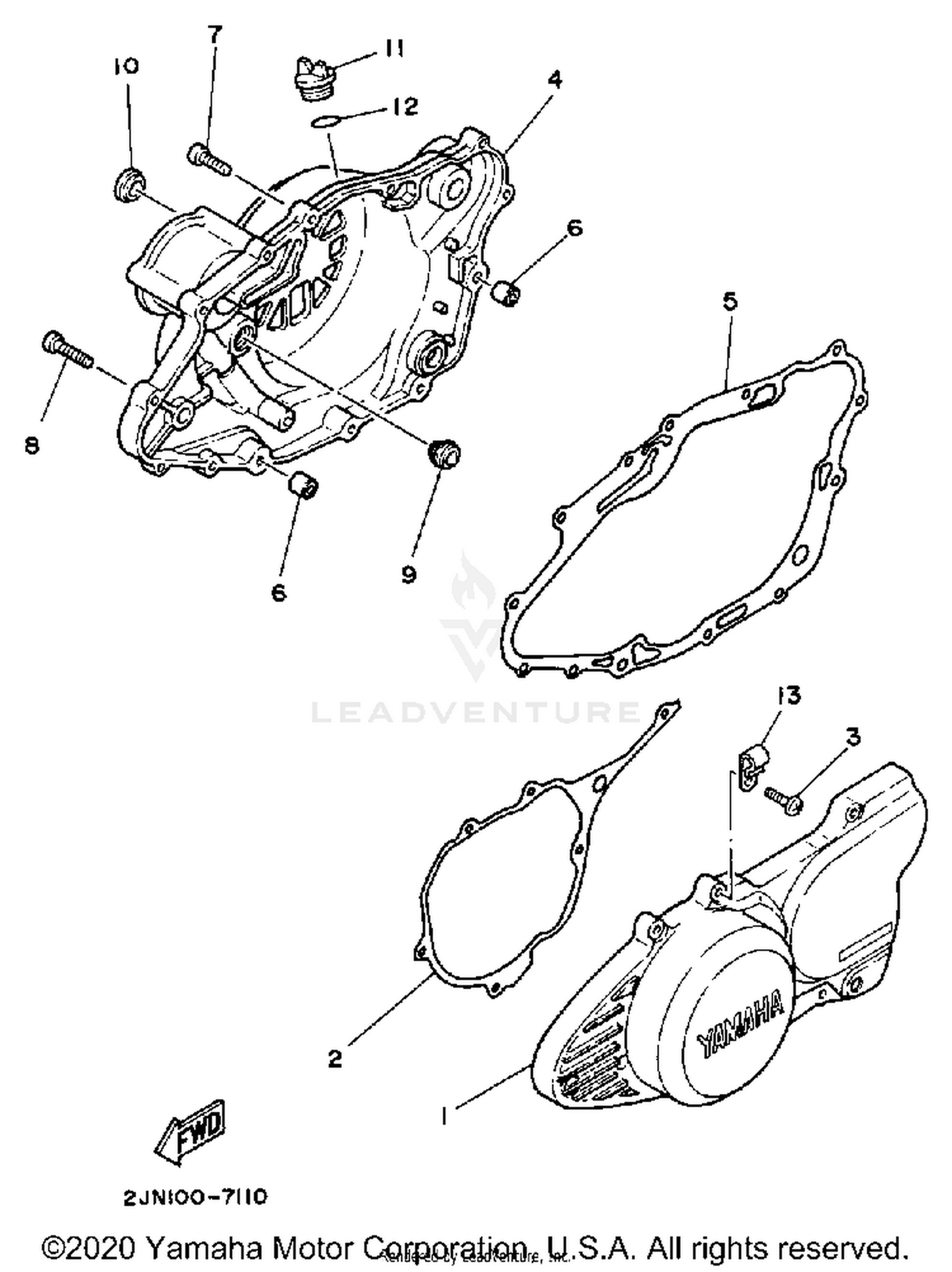

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
2JN-15411-00-00
|
$96.98 | ||
|
Unavailable |
|||
|
#2
GASKET, CRCS COVER
3Y6-15451-00-00
Superseded by 3Y6-15451-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CRANKCASE R
2JN-15421-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#5
GASKET, CRCS CVR 2
2JN-15461-00-00
Superseded by 2JN-15461-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.69 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.69 | ||
|
Unavailable |
|||
|
#9
OIL SEAL (S7-14-25-5.5-1-HS)
93101-14092-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GAUGE, LEVEL
3Y1-15361-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, OIL
1RG-15363-00-00
Superseded by 3Y1-15363-10-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-19123-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-08028-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
