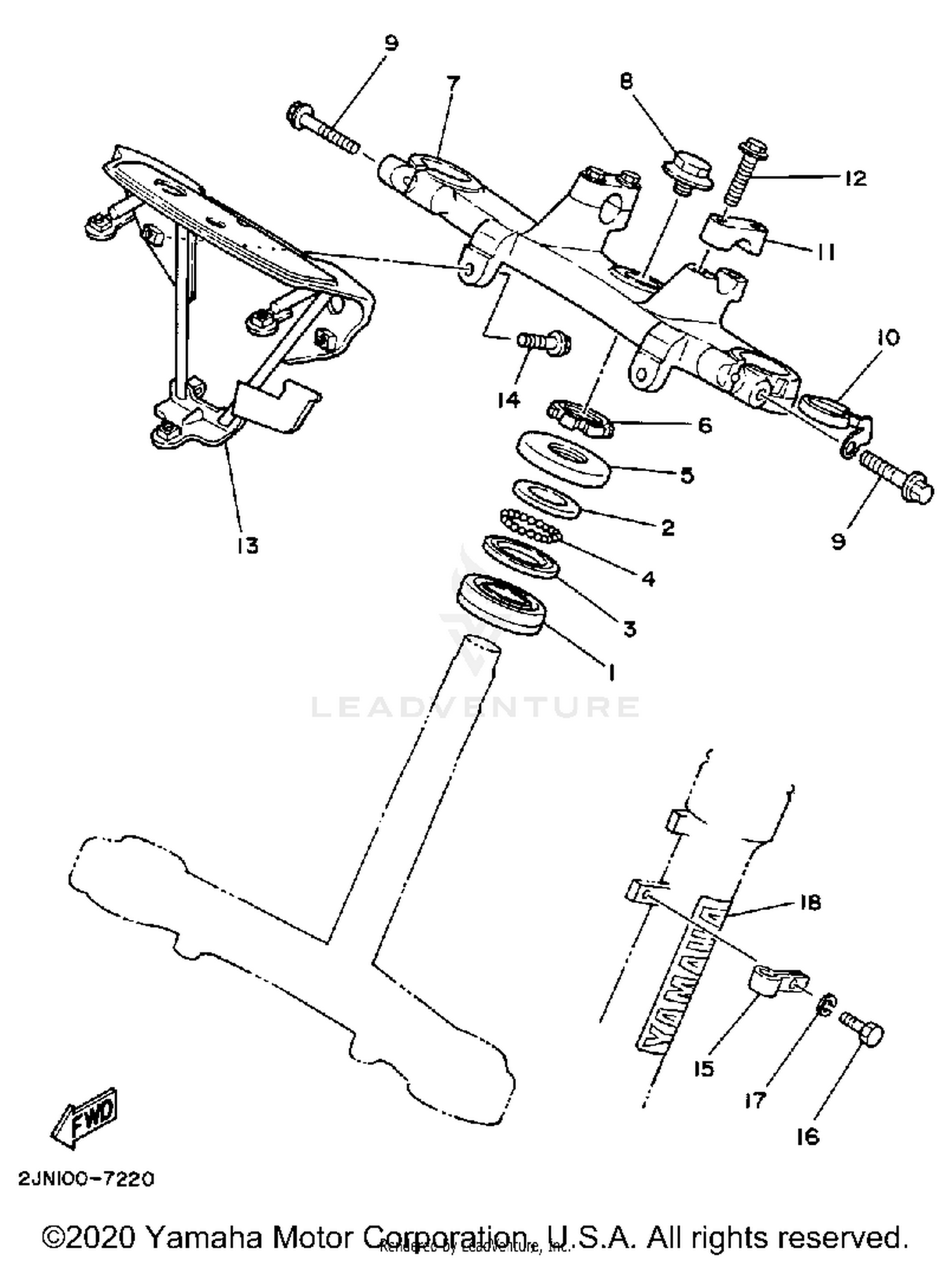

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93332-00008-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, BALL 1
22F-23411-01-00
Superseded by BP2-23411-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 2
22F-23412-01-00
Superseded by BP2-23412-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, BALL RACE 2
10V-23416-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CROWN, HANDLE
54G-23435-00-98
|
$193.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
90105-14102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, CABLE
54G-23389-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#11
HOLDER, HANDLE UPR (1E6-23441-0
1E6-23441-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, HEADLIGHT
1RL-23174-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CABLE 2
3Y1-23319-00-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM
1LR-23108-00-00
|
$12.49 | ||
|
Unavailable |
|||
