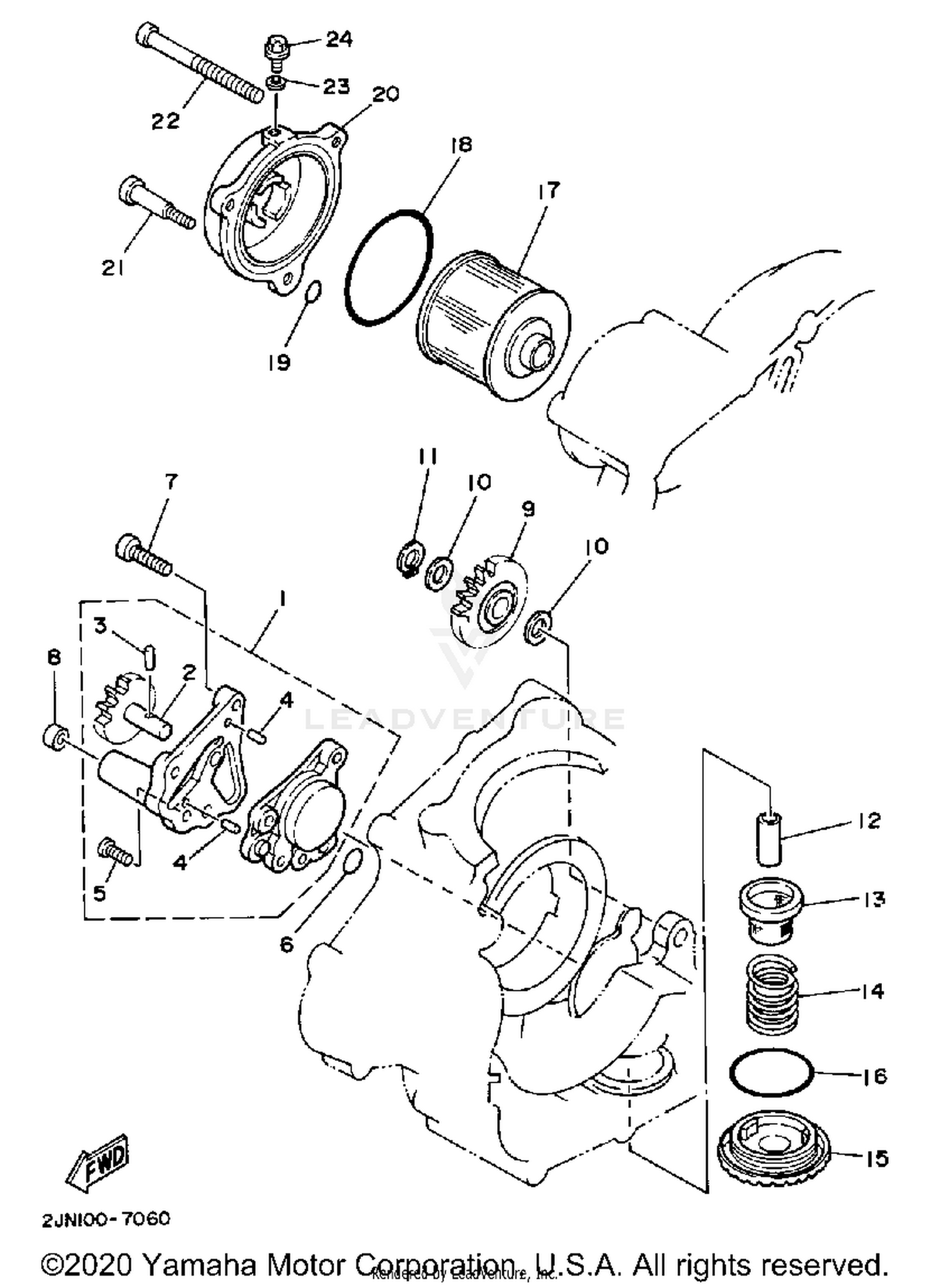

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
2JN-13300-00-00
|
$84.22 | ||
|
Unavailable |
|||
|
#2
DRIVEN GEAR ASSEMBLY
1RG-13360-00-00
|
$15.34 | ||
|
Unavailable |
|||
|
#3
PIN, PLUNGER
93603-12030-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-07073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-06156-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, OIL PUMP IDLE
1RG-13341-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-10400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, OIL 1
2XK-13416-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STRAINER, OIL
2JN-13411-00-00
Superseded by 51Y-13411-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
90501-18576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, DRAIN
3Y1-15351-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-40745-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ELEMENT ASSY, OIL CLEANER
4X7-13440-90-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-64297-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-07135-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, OIL ELEMENT
2JN-13447-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#21
BOLT
90109-06419-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98506-06090-00
Superseded by 98507-06090-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
90430-05126-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
90149-05110-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
