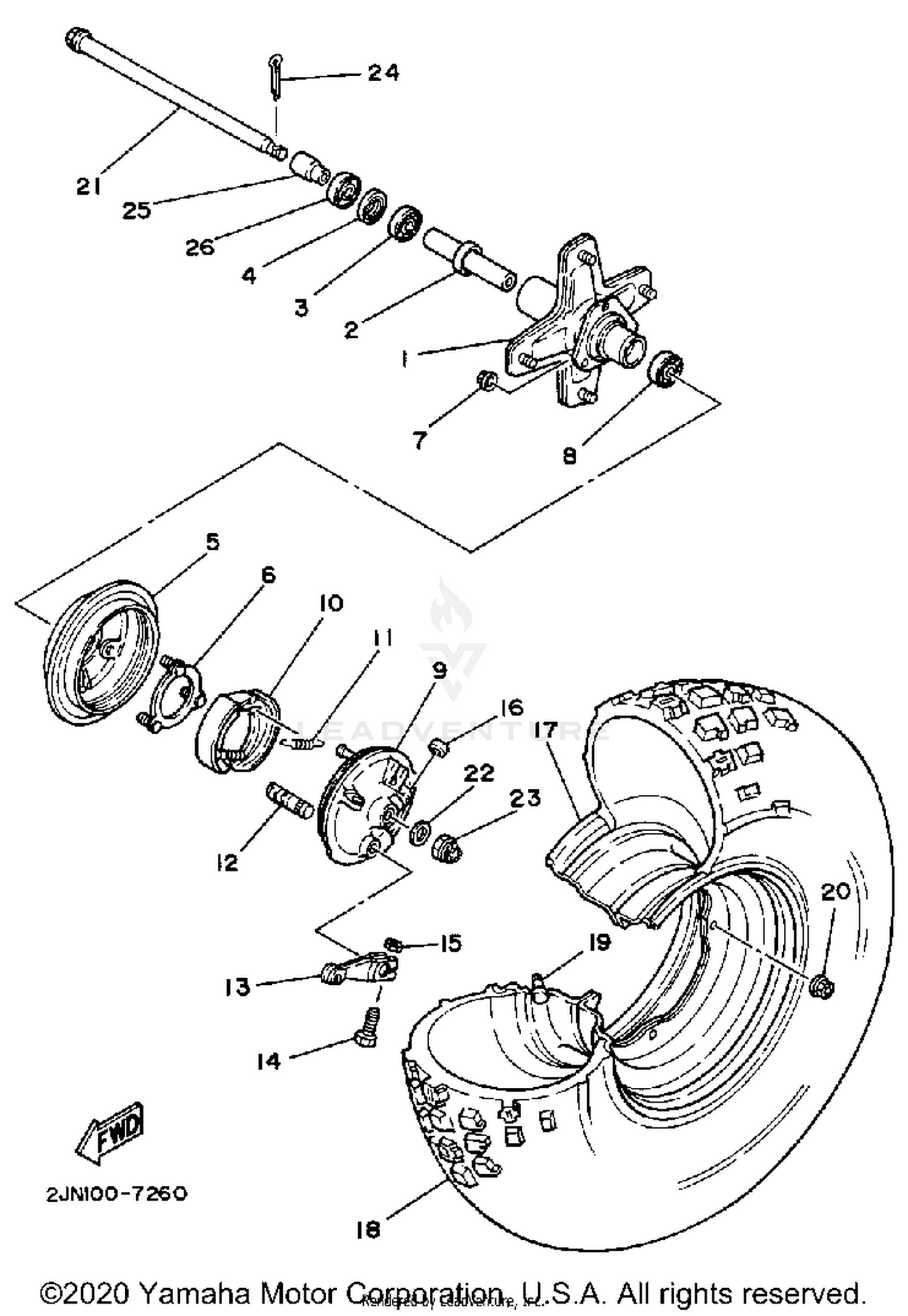

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
54G-25111-00-91
|
$130.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
29U-25117-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#3
BEARING (B6203DU)
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-23252-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, BRAKE
2JX-2511E-00-35
|
$235.99 | ||
|
Unavailable |
|||
|
#6
RING 1
54G-25185-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6203DU)
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#9
PLATE, BRAKE SHOE
2JN-25121-00-35
|
$55.99 | ||
|
Unavailable |
|||
|
#10
BRAKE SHOE KIT
2JN-W2535-00-00
Superseded by 3LS-W253E-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
3Y1-25155-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-18067-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT WHEEL COMP.
38W-25180-10-35
|
$321.99 | ||
|
Unavailable |
|||
|
#18
DUN 25X8-12 KT646M
94108-121R4-00
|
$131.99 | ||
|
Unavailable |
|||
|
#19
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08410-00
|
$8.49 | ||
|
Unavailable |
|||
|
#21
AXLE, WHEEL
54G-25181-01-00
|
$70.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-15785-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR 54G
90387-172L6-00
|
$5.99 | ||
|
Unavailable |
|||
|
#26
COVER, HUB DUST
5V6-25118-00-00
|
$8.49 | ||
|
Unavailable |
|||
