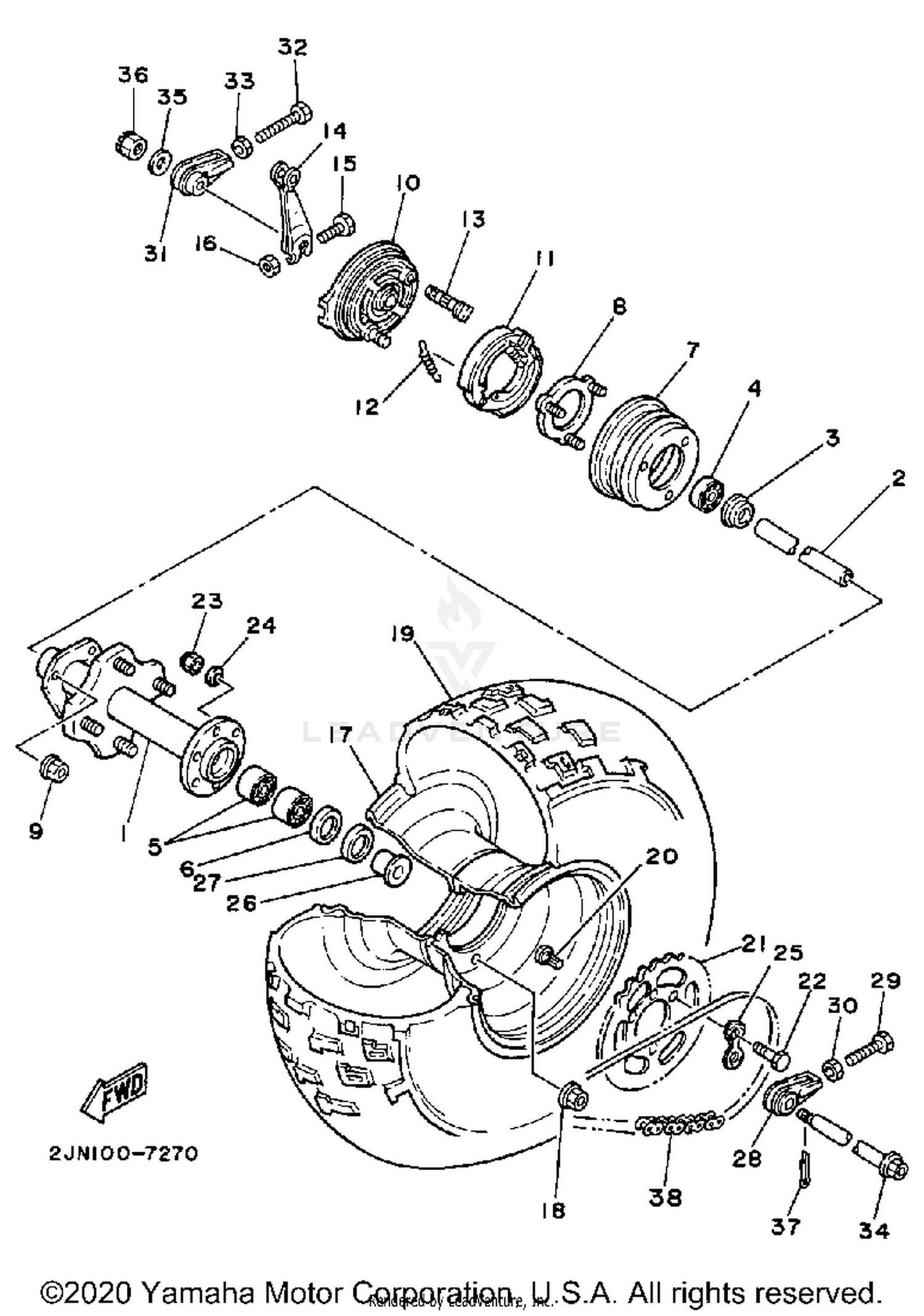

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
2JN-25311-00-91
|
$157.99 | ||
|
Unavailable |
|||
|
#2
COLLAR 54G
90387-173L2-00
|
$15.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER
146-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (B6203DU)
93306-20310-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (B6203DU)
93306-20310-00
|
$36.99 | ||
|
Unavailable |
|||
|
#6
OIL SEAL (FPJ 25-44-8 TS)
93102-25311-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DRUM, BRAKE
5V7-2511E-00-00
Superseded by 5V7-2511E-00-35
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DRUM, BRAKE
5V7-2511E-00-00
Superseded by 5V7-2511E-00-35
|
$221.99 | ||
|
Unavailable |
|||
|
#9
NUT
90179-08410-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, BRAKE SHOE
2JX-25321-01-35
Superseded by 2JX-25321-02-35
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
2JN-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-15260-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, CAMSHAFT
5R0-25355-00-00
Superseded by 5R0-25355-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90101-06278-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
WHEEL, REAR
2HT-25390-00-35
|
$156.99 | ||
|
Unavailable |
|||
|
#18
NUT
90179-08410-00
|
$8.99 | ||
|
Unavailable |
|||
|
#19
DUN 23X11-9 KT647M (2.30, 12.00
94111-091R5-00
|
$226.99 | ||
|
Unavailable |
|||
|
#20
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPROCKET, DRVN 37T
2JN-25437-51-00
|
$36.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90101-10670-00
|
$2.95 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-10060-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08759-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
1G8-25412-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-177R8-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
COVER, HUB DUST
36R-25367-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 2
12R-25389-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#29
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
PULLER, CHAIN 2
2JN-25389-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#32
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#34
AXLE, WHEEL
2JN-25381-00-00
|
$35.94 | ||
|
Unavailable |
|||
|
#35
WASHER, PLATE
90201-160F6-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CASTLE
90171-16024-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DID 520 DS CHAIN
94585-20076-00
|
$104.99 | ||
|
Unavailable |
|||
