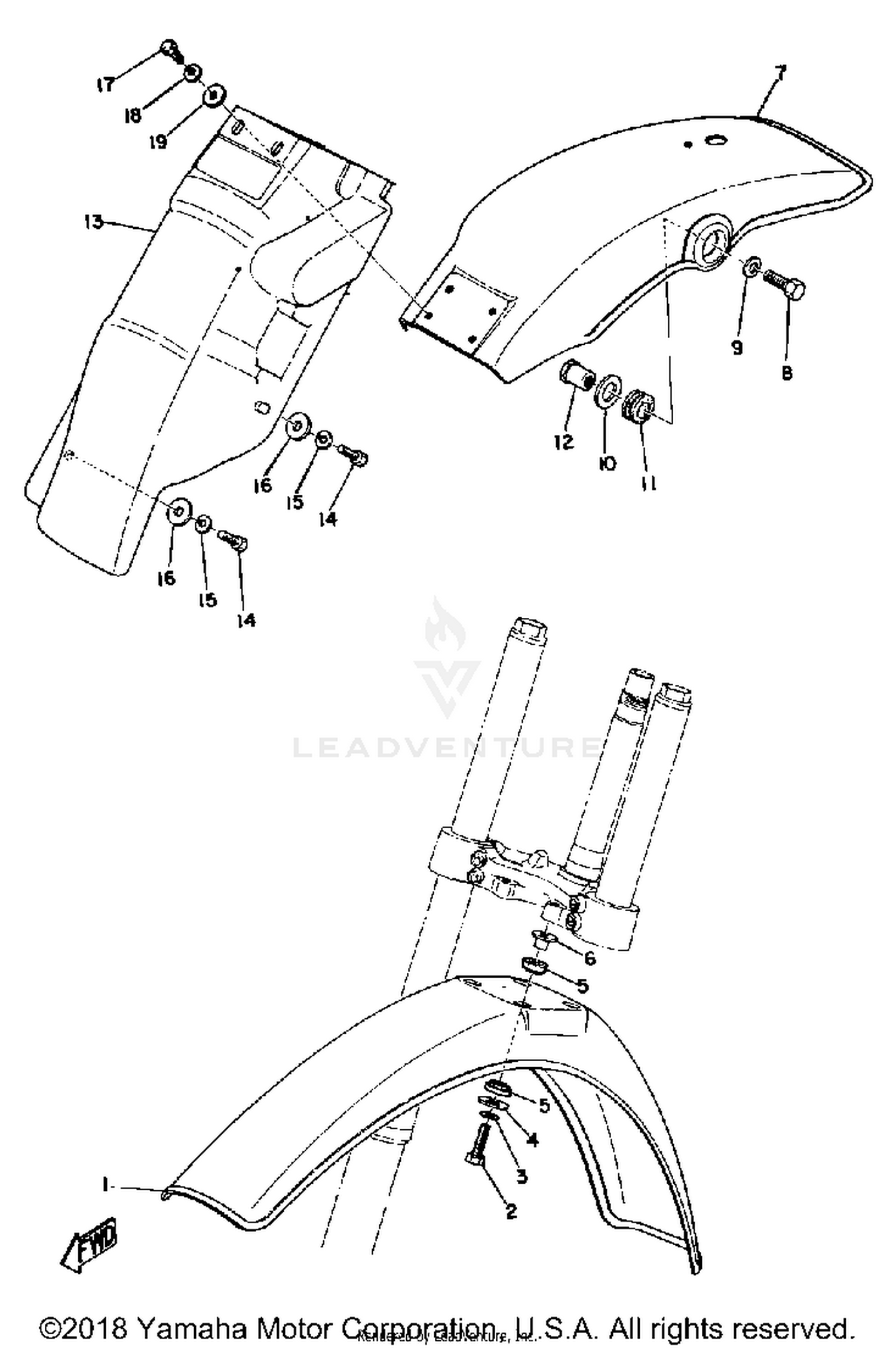

Front Fender - Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
403-21511-01-20
|
$102.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER 1
322-21541-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
437-21610-00-20
|
$58.07 | ||
|
Unavailable |
|||
|
#8
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-15239-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
DAMPER 2
168-21639-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPEC''L SHAPE
90179-08069-00
|
$3.55 | ||
|
Unavailable |
|||
|
#13
GUARD, MUD
437-21620-00-00
|
$19.72 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#17
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
FENDER, FRONT
401-21511-01-20
|
$65.99 | ||
|
Unavailable |
|||
|
#19
HIGH MNT FNDR ASSEMBLY
ACC-11110-21-00
|
$14.50 | ||
|
Unavailable |
|||
