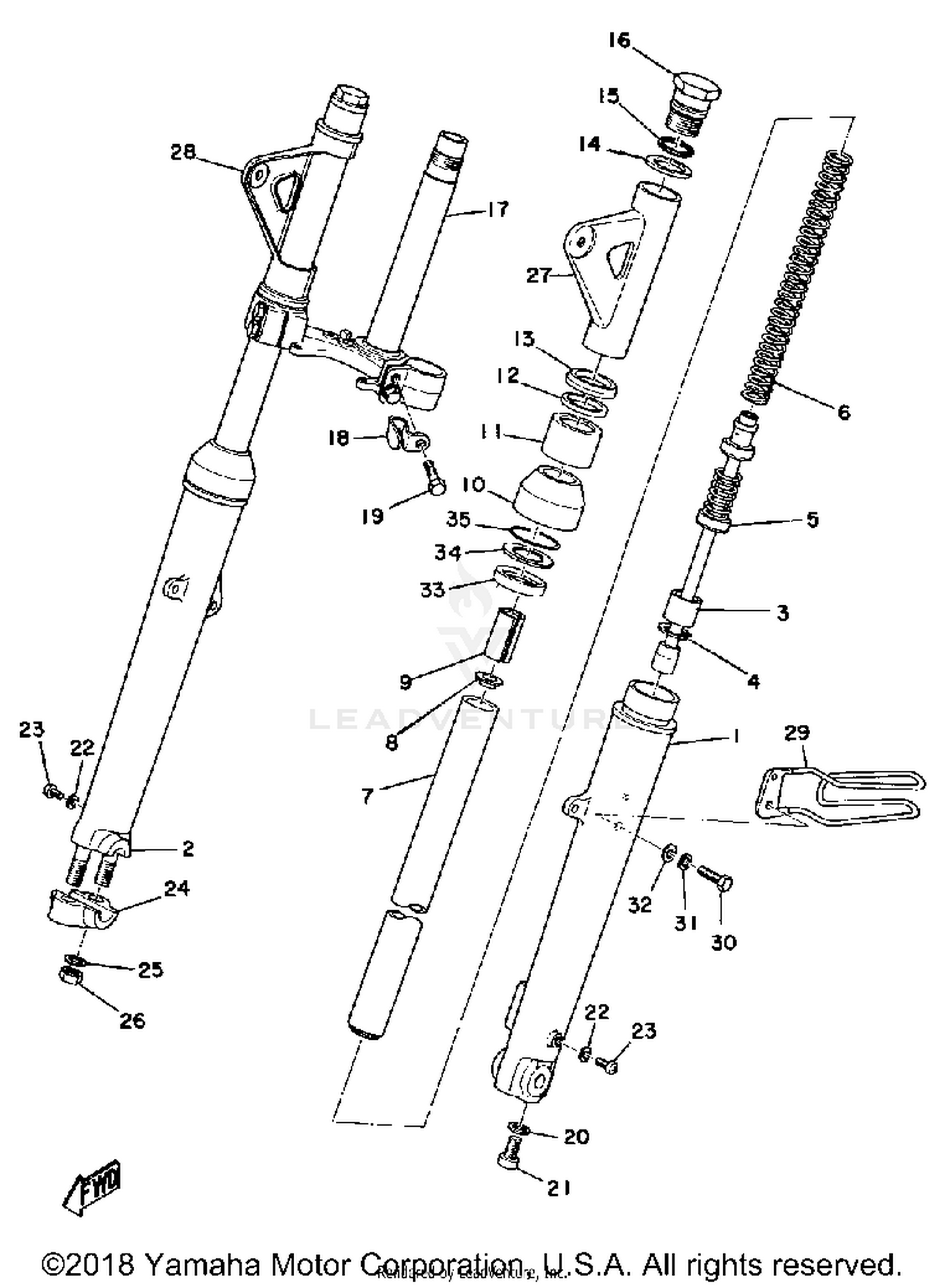

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, OUTER 1
315-23126-50-00
|
$115.99 | ||
|
Unavailable |
|||
|
#1
FRONT FORK ASSEMBLY
443-23101-01-00
|
$358.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
315-23136-50-00
|
$122.99 | ||
|
Unavailable |
|||
|
#3
PISTON, FRONT FORK
315-23171-50-00
|
$5.64 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
535-23183-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#5
CYLINDER, FRTFRK
443-23170-01-00
|
$48.12 | ||
|
Unavailable |
|||
|
#6
SPRING, FRONT FORK
318-23141-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#7
TUBE, INNER 1
315-23124-50-00
|
$88.72 | ||
|
Unavailable |
|||
|
#8
SEAT, SPRING UPPER
248-23142-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#9
SPACER
443-23118-01-00
|
$2.77 | ||
|
Unavailable |
|||
|
#10
SEAL, DUST
248-23144-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, OUTER 1
248-23122-01-00
|
$5.64 | ||
|
Unavailable |
|||
|
#12
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
GUIDE, COVER LOWER
248-23116-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
GUIDE, COVER UPPER
248-23115-01-00
|
$4.80 | ||
|
Unavailable |
|||
|
#15
PACKING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#17
UNDER BRACKET
460-23340-30-33
|
$112.99 | ||
|
Unavailable |
|||
|
#18
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, AXLE
315-23167-51-00
|
$101.99 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT (6L2)
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, UPPER 1
438-23121-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#28
COVER, UPPER 2
438-23131-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#29
HOLDER, CABLE 1
437-23318-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#30
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, OIL SEAL
315-23156-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#35
WASHER, OIL SEAL
315-23146-50-00
|
$2.97 | ||
|
Unavailable |
|||
