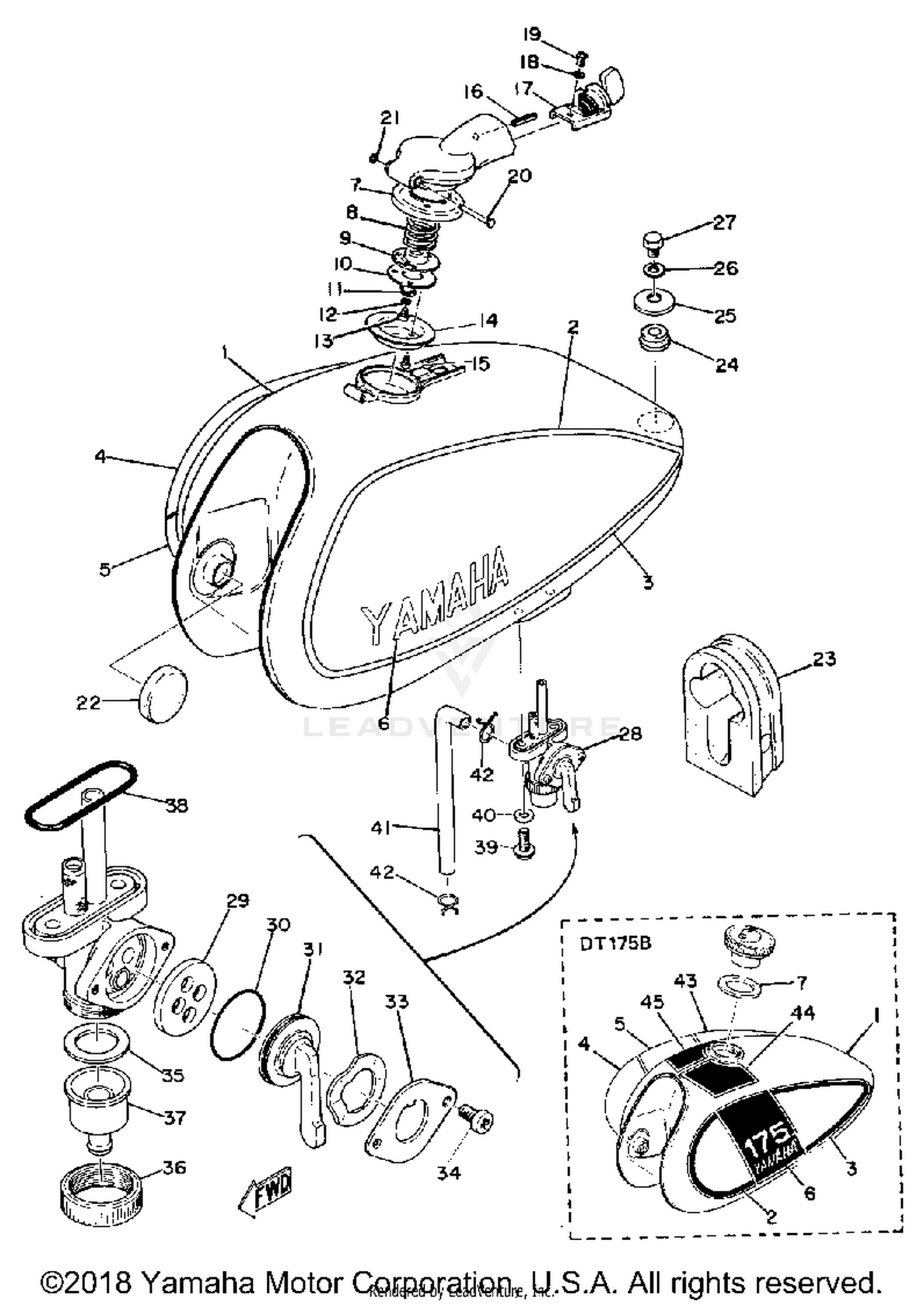

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP ASY.
3FR-24602-00-00
Superseded by 3FU-24650-12-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP ASSEMBLY
437-24653-00-00
|
$43.24 | ||
|
Unavailable |
|||
|
#1
FUEL TANK
443-24110-10-01
|
$267.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
443-24244-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
443-24244-30-00
|
$5.24 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 3
443-24246-00-00
|
$7.88 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 5
443-24248-30-00
|
$7.26 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 2
443-24245-00-00
|
$16.54 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 2
443-24245-30-00
|
$9.28 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
443-24247-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
443-24247-30-00
|
$4.56 | ||
|
Unavailable |
|||
|
#6
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAPHIC, FUEL TNK 3
443-24246-30-00
|
$3.96 | ||
|
Unavailable |
|||
|
#7
GASKET, CAP
437-24612-00-00
|
$9.14 | ||
|
Unavailable |
|||
|
#7
GASKET, CAP
498-24612-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#8
SPRING, CAP
437-24621-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#9
GASKET, PLATE 2
437-24616-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#10
GASKET
437-24683-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#11
STOPPER, PLATE
437-24639-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD (98501-03008-00
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,SPRING
91609-40018-00
Superseded by 91690-40018-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, SPECIAL SHAPE (308-24623-0
90249-03087-00
|
$4.40 | ||
|
Unavailable |
|||
|
#21
CIRCLIP, E-TYPE
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, LOCATING 3
401-24183-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#24
GROMMET
90480-25189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUEL COCK ASSEMBLY 1 (214-24500
498-24500-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
VALVE
214-24523-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
214-24513-00-00
|
$7.94 | ||
|
Unavailable |
|||
|
#31
LEVER, COCK
214-24524-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#32
WASHER, WAVE
214-24518-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
PLATE, LEVER FITTING
214-24525-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#34
SCREW, LEVER FITTING
214-24535-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET
214-24522-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
438-24531-00-00
|
$10.24 | ||
|
Unavailable |
|||
|
#37
CUP, FILTER
438-24521-00-00
|
$14.84 | ||
|
Unavailable |
|||
|
#38
GASKET
214-24512-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L100)
214-24311-00-00
Superseded by 90445-11293-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, SCISSOR
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GRAPHIC, FUEL TNK 6
443-24249-30-00
|
$3.96 | ||
|
Unavailable |
|||
|
#44
GRAPHIC, FUEL TNK 7
443-24254-30-00
|
$6.66 | ||
|
Unavailable |
|||
|
#45
GRAPHIC, FUEL TNK 8
443-24255-30-00
|
$6.26 | ||
|
Unavailable |
|||
