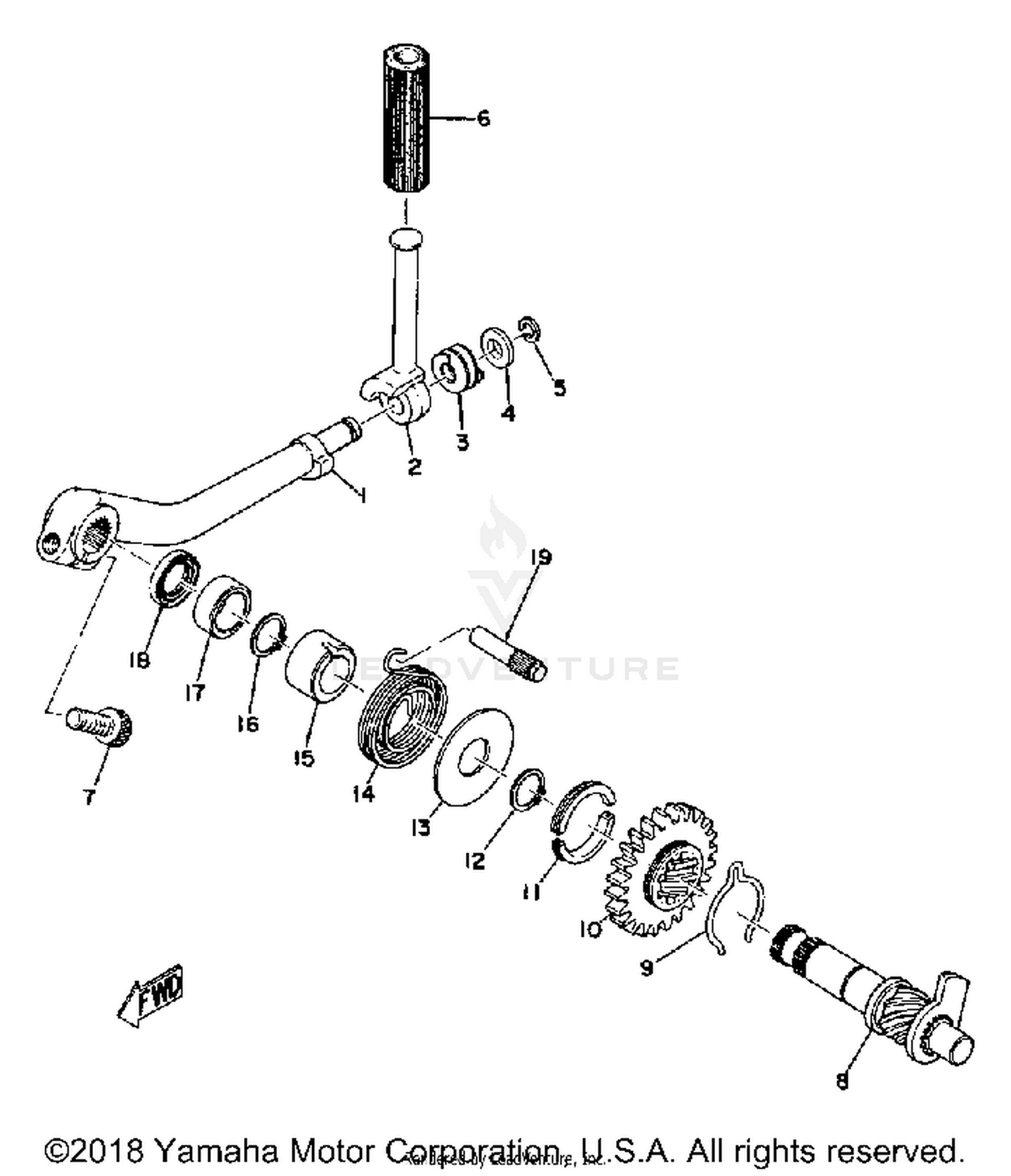

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK CRANK ASSEMBLY (437-15610-
1X0-15620-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, KICK
137-15612-01-00
|
$8.28 | ||
|
Unavailable |
|||
|
#3
SPRING, COMPRESSION
90504-18031-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,SPEC'L SHAPE
90209-10108-00
Superseded by 90209-10210-00
|
$2.35 | ||
|
Unavailable |
|||
|
#5
CIRCLIP, OUTER
93440-10028-00
|
$2.55 | ||
|
Unavailable |
|||
|
#6
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
KICK AXLE ASY
401-15660-01-00
Superseded by 401-15660-02-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90468-26048-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, KICK (27T)
315-15641-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, KICK GEAR
248-15654-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SPRING
401-15676-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-26041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
401-15666-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-17032-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
OIL SEAL
93101-17062-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, KICK SPRING
257-15668-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
