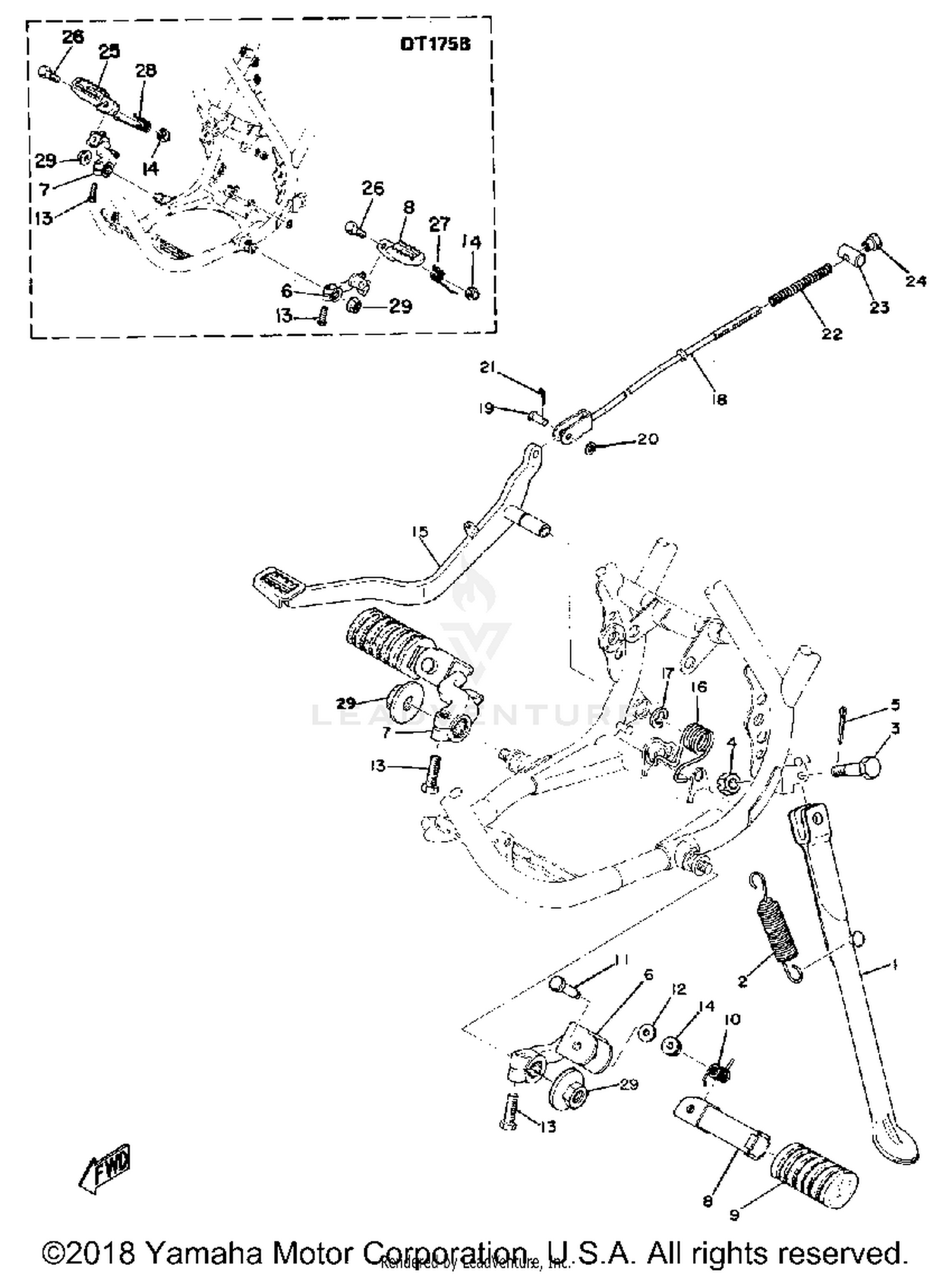

Stand - Footrest - Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
248-27311-01-00
|
$87.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-29004-00
Superseded by 90506-26270-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, COTTER (91490-20020-00)
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 1
437-27412-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, FOOTREST 1
437-27412-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, FOOTREST 2
437-27422-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, FOOTREST 2
437-27422-10-00
|
$61.99 | ||
|
Unavailable |
|||
|
#8
FOOTREST 2
214-27421-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST 1
434-27411-00-35
|
$67.99 | ||
|
Unavailable |
|||
|
#9
COVER, FOOTREST
214-27413-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
90243-08006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, KICK CRANK
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL, BRAKE
437-27211-00-33
|
$49.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-40165-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, BRAKE
248-27231-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPECIAL SHAPE
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FOOTREST 2
434-27421-00-35
|
$67.99 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-08250-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
SPRING, TORSION
90508-26138-00
|
$3.76 | ||
|
Unavailable |
|||
|
#28
SPRING, TORSION
90508-26139-00
|
$3.36 | ||
|
Unavailable |
|||
|
#29
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Unavailable |
|||
