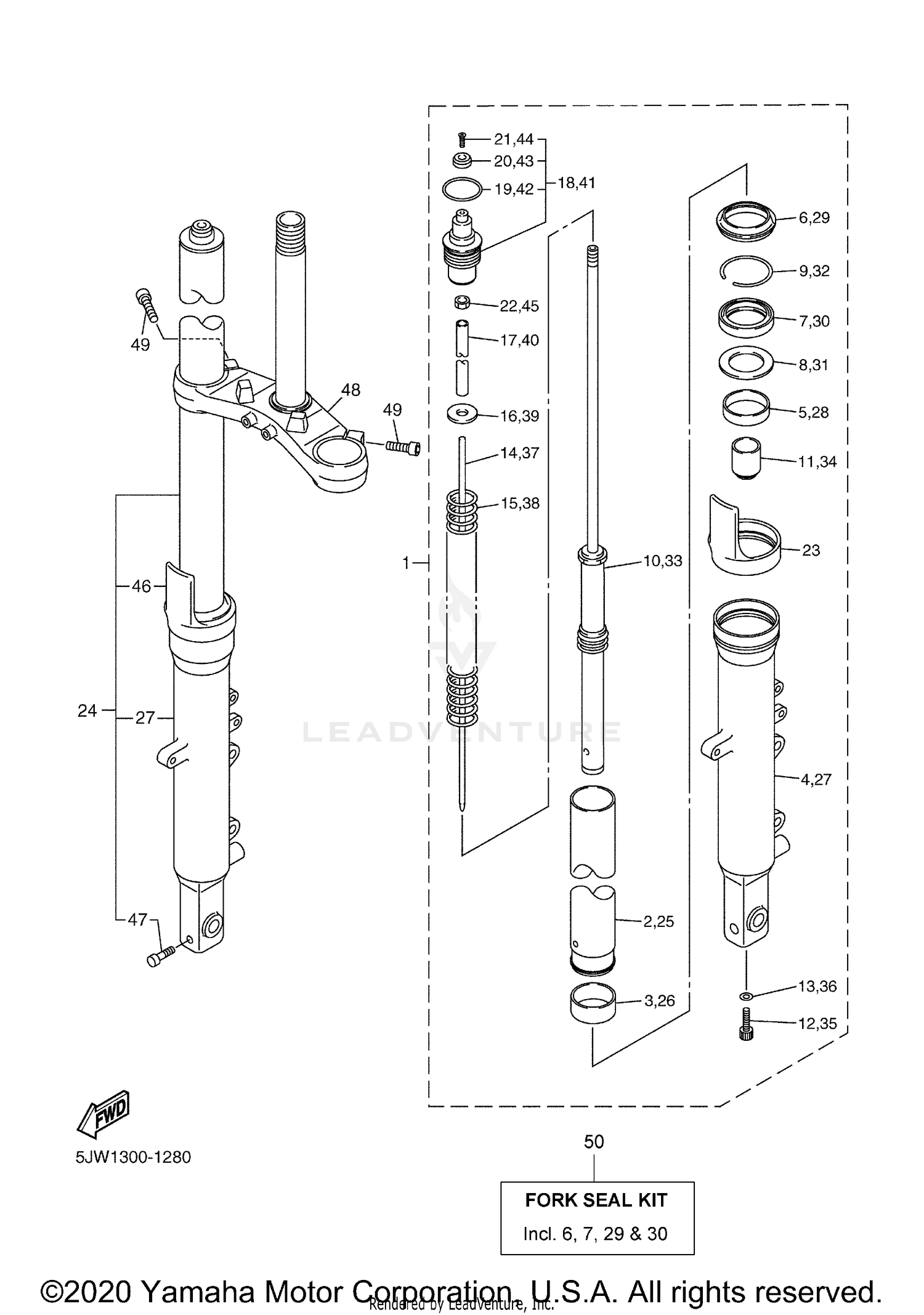

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5VS-23102-00-00
|
$695.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER TUBE COMP. 1
5JW-23110-00-00
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
METAL, SLIDE 2
4SV-23135-00-00
Superseded by 4SV-23135-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OUTER TUBE COMP. (L.H)
5VS-23106-00-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
4SV-23125-00-00
Superseded by 4SV-23125-10-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
4SV-23144-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
4SV-23145-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, COVER UPPER
4SV-23115-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SNAP
4SV-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
5JW-23170-00-00
|
$506.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, TAPER
5LV-23173-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, UNION
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUNGER
5JW-2318Y-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, FRONT FORK
5VS-23141-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-10321-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
5JW-23118-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, CAP
5JW-23111-01-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-40N50-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
KNOB (TEN)
5JW-2319W-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, OVAL HEAD
90142-03N01-00
Superseded by 98680-03008-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95307-10600-00
Superseded by 95337-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER
4SV-2331G-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRONT FORK ASSY (R.H)
5VS-23103-00-00
|
$1,161.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
INNER TUBE COMP. 1
5JW-23110-00-00
|
$294.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE 2
4SV-23135-00-00
Superseded by 4SV-23135-10-00
|
$19.99 | ||
|
Unavailable |
|||
|
#27
OUTER TUBE COMP. (R.H)
5VS-23107-00-00
|
$427.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
METAL, SLIDE 1
4SV-23125-00-00
Superseded by 4SV-23125-10-00
|
$19.49 | ||
|
Unavailable |
|||
|
#29
SEAL, DUST
4SV-23144-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
4SV-23145-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#31
GUIDE, COVER UPPER
4SV-23115-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
RING, SNAP
4SV-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
CYLINDER COMP., FRONT FORK
5JW-23170-00-00
|
$506.99 | ||
|
Unavailable |
|||
|
#34
SPINDLE, TAPER
5LV-23173-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-10N52-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
BOLT, UNION
90430-10171-00
|
$3.00 | ||
|
Unavailable |
|||
|
#37
PLUNGER
5JW-2318Y-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
SPRING, FRONT FORK
5VS-23141-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
90201-10321-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
SPACER
5JW-23118-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#41
BOLT, CAP
5JW-23111-01-00
|
$253.99 | ||
|
Unavailable |
|||
|
#42
O-RING
93210-40N50-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
KNOB (TEN)
5JW-2319W-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#44
SCREW, OVAL HEAD
90142-03N01-00
Superseded by 98680-03008-00
|
$0.45 | ||
|
Unavailable |
|||
|
#45
NUT
95307-10600-00
Superseded by 95337-10600-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
COVER
4SV-2331G-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#47
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
UNDER BRACKET COMP.
5JW-23340-00-00
|
$453.89 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, HEX. SOCKET HEAD
91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
FORK SEAL KIT
4SV-W003B-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
