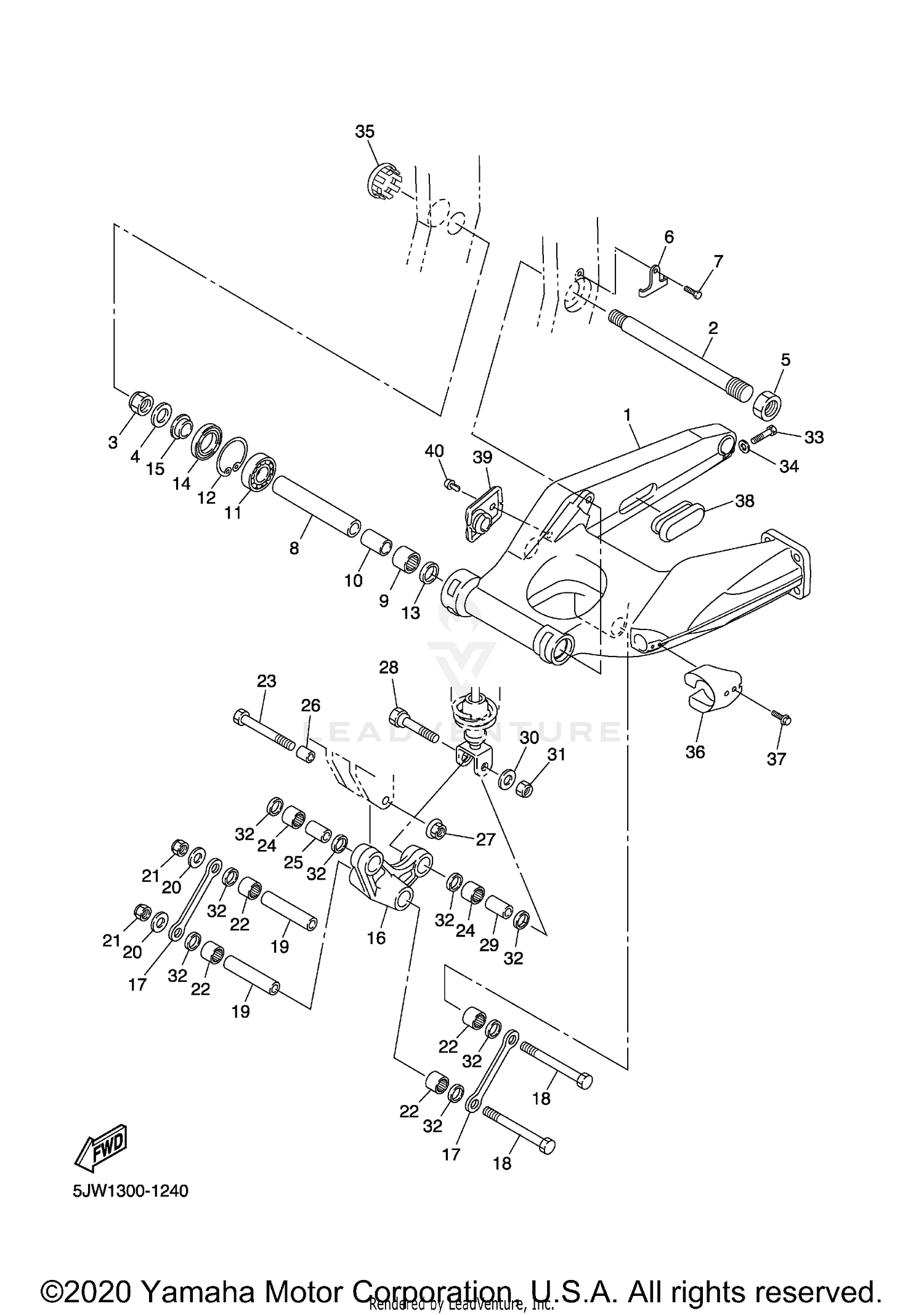

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
5VS-22110-01-00
|
$802.99 | ||
|
Unavailable |
|||
|
#2
SHAFT, PIVOT
5JW-22141-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-186H3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90170-28379-00
Superseded by 90170-28011-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
5JW-22128-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(3JP)
97027-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-20011-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93317-42592-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, WHEEL
5JW-25383-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30446-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-52500-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93102-25270-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-28023-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-207V6-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ARM, RELAY
5JW-2217A-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM 1
5JW-2217M-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-10658-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-122R5-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U
95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93317-31701-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-10011-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-31759-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-102R4-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-10009-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90109-10007-00
Superseded by 90109-10024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-127W0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
NUT, U
95617-10100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEXAGON
97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92904-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER
4BH-2219X-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, DUST
5JW-2217H-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, WITH WASHER
90119-05005-00
Superseded by 90119-05062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER
5JW-2219X-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, THRUST 2
5JW-22129-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#40
RIVET
90269-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
