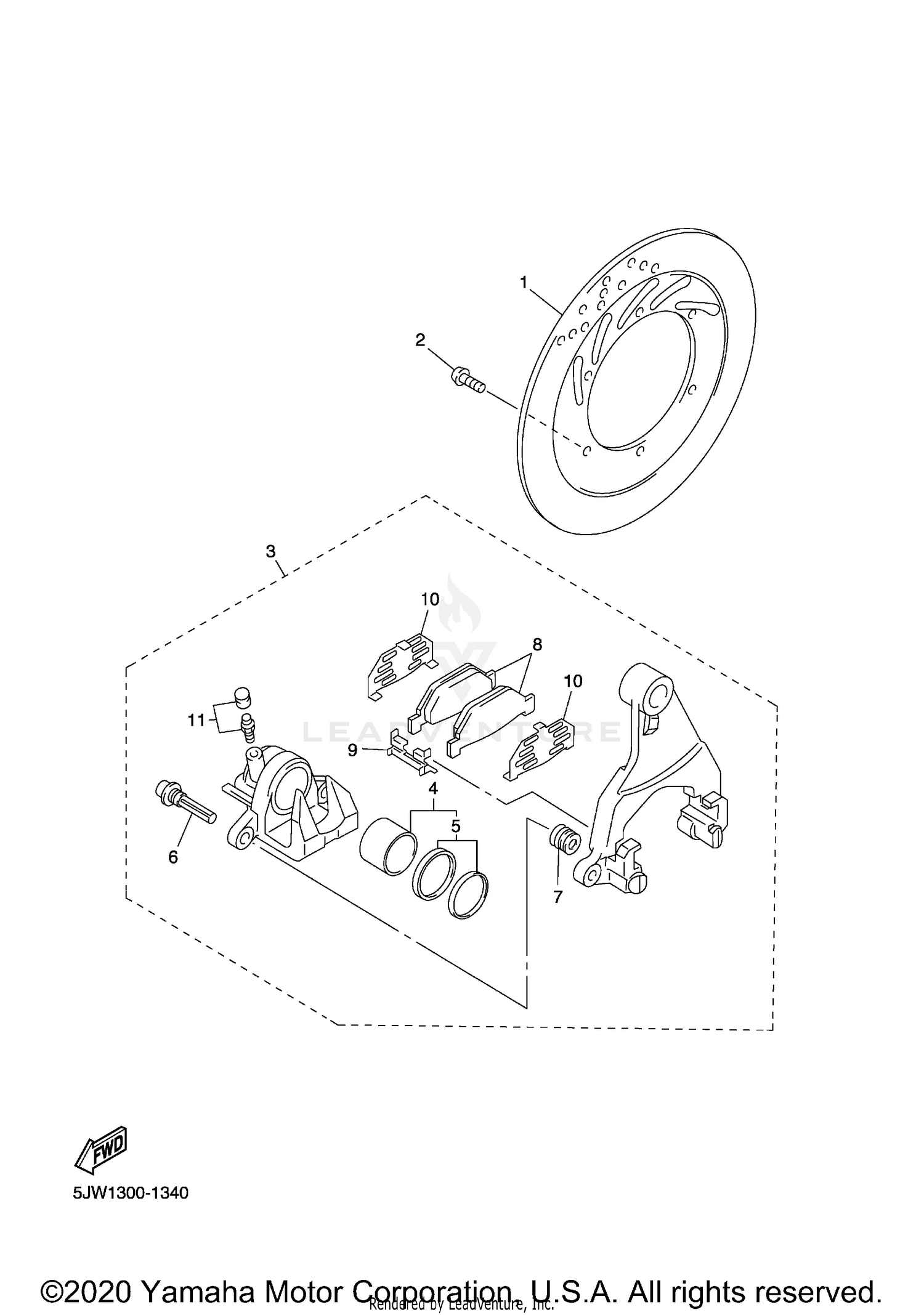

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5EL-2582W-00-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-064G6-00
Superseded by 90109-06254-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
5VS-2580W-00-00
Superseded by 5VS-2580W-01-00
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5JW-W0057-00-00
Superseded by 1D7-25802-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5JW-W0047-00-00
Superseded by 5JW-25803-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, SLIDE
5JW-25914-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
4TT-25937-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
5JW-W0046-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
5JW-25919-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
5JW-25827-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
5GM-W0048-01-00
Superseded by 5RU-W0048-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
