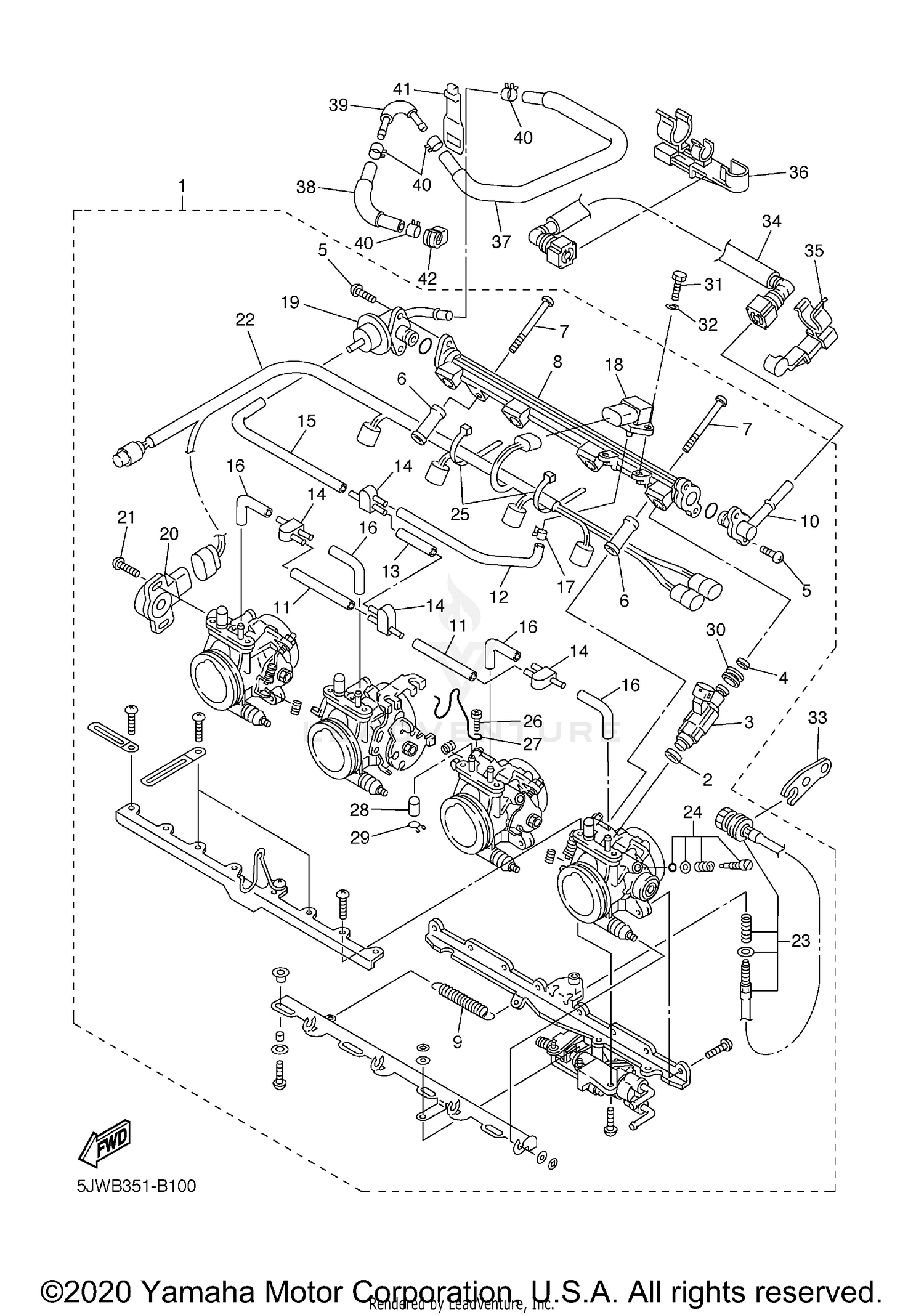

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
5JW-13750-31-00
Superseded by 5JW-13750-32-00
|
$2,130.99 | ||
|
Unavailable |
|||
|
#1
THROTTLE BODY ASSY
5JW-13750-40-00
|
$2,285.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
90430-09002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR ASSY
5FL-13761-00-00
|
$327.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5FL-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE
5JW-14148-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98507-06050-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE
5JW-13938-00-00
|
$223.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
5JW-14589-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, FUEL INJECTION 1
5JW-12881-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE 1
5JW-14348-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE
5JW-14349-00-00
|
$8.30 | ||
|
Unavailable |
|||
|
#13
PIPE
5JW-14396-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NIPPLE
3XV-14251-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE
5JW-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, FUEL 1
5JW-24311-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
5DM-14919-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, PRESSURE
5JW-82380-00-00
|
$342.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
REGULATOR, PRESSURE
5JW-13906-00-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
THROTTLE SENSOR ASSY
5PS-85885-00-00
Superseded by 3P6-85885-01-00
|
$285.99 | ||
|
Unavailable |
|||
|
#21
SCREW
8CC-14216-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, SUB LEAD
5JW-82509-10-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
THROTTLE SCREW SET
5JW-14103-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
AIR SCREW SET
5JW-14104-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
4KM-14137-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98507-05006-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, PIPE
5JW-14139-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#28
CAP
895-14169-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, PIPE
8A7-14139-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RUBBER, INJECTOR
5FL-13766-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY
5EB-14413-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#34
PIPE, FUEL 1
5JW-13971-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-16008-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-16005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE, FUEL 3
5JW-13973-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, FUEL 4
5JW-13974-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE, FUEL
5JW-14295-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
90467-12003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER 2
5JW-1479J-00-00
Superseded by 5JW-1479J-02-00
|
$4.45 | ||
|
Unavailable |
|||
|
#42
COVER, 1
5JW-1479H-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
