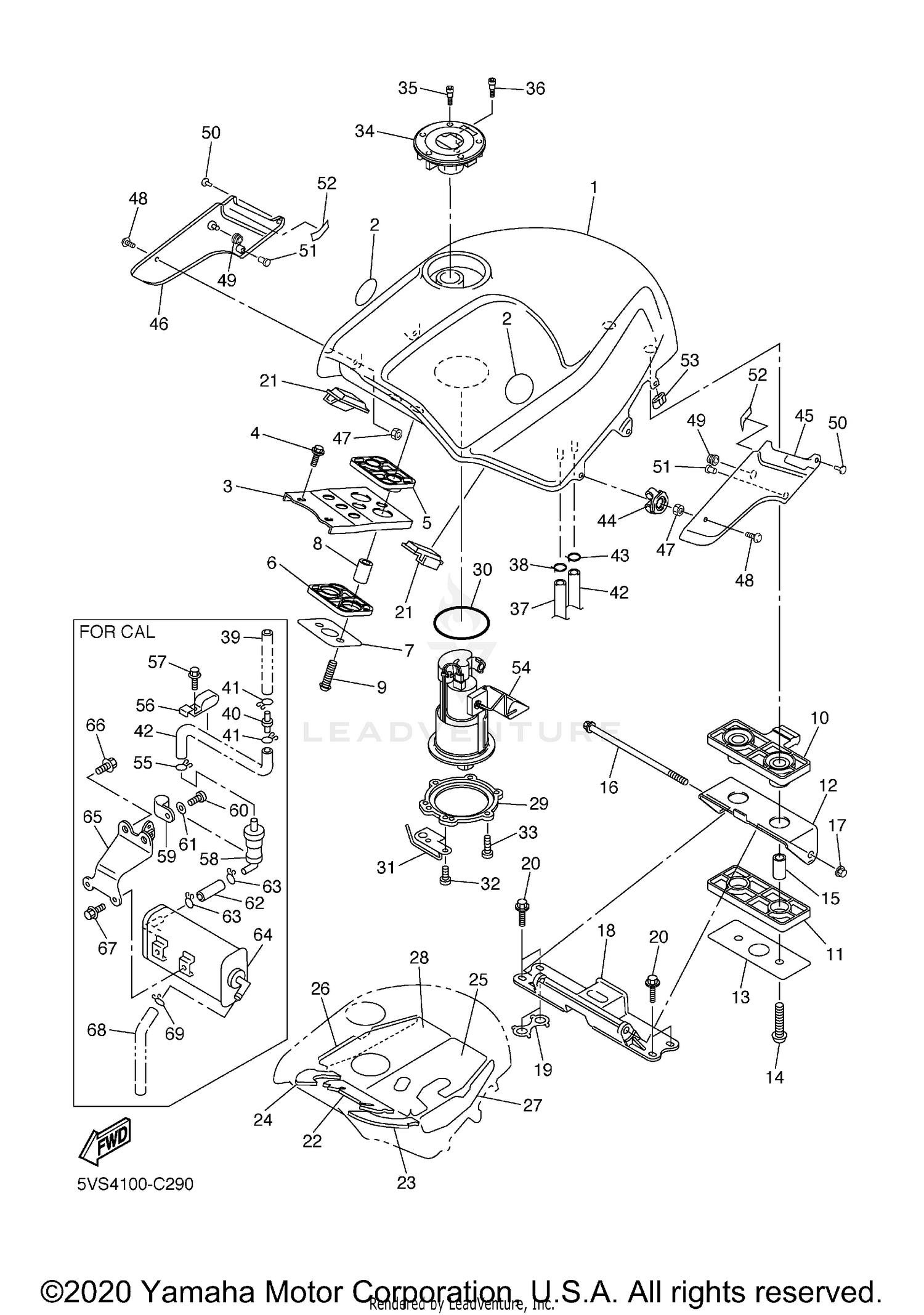

Fuel Tank Diagram

Item MSRP Qty
#1 FUEL TANK COMP.
5JW-YK241-50-P1
 $1,118.99
Unavailable
#2 EMBLEM
5JW-2413B-00-00
 $47.99
Available to order.
Add to View Price
#3 BRACKET, FUEL TANK 1
5JW-24191-00-00
 $25.99
Available to order.
Add to View Price
#4 BOLT, FLANGE
95814-06020-00
 $7.49
Available to order.
Add to View Price
#5 DAMPER, LOCATING 1
5JW-24181-00-00
 $10.49
Available to order.
Add to View Price
#6 DAMPER, LOCATING 2
5JW-24182-00-00
 $8.49
Available to order.
Add to View Price
#7 WASHER, SPECIAL
5JW-24187-00-00
 $5.49
Available to order.
Add to View Price
#8 COLLAR
90387-0813V-00
 $4.45
Available to order.
Add to View Price
#9 BOLT, BUTTON HEAD
92017-08035-00
 $6.49
Available to order.
Add to View Price
#10 DAMPER, LOCATING 3
5JW-24183-00-00
 $30.99
Unavailable
#11 DAMPER, LOCATING 4
5JW-24184-00-00
 $19.99
Available to order.
Add to View Price
#12 BRACKET, FUEL TANK 2
5JW-24192-01-00
 $26.99
Available to order.
Add to View Price
#13 WASHER, SPECIAL
5JW-24186-00-00
 $7.49
Available to order.
Add to View Price
#14 BOLT, BUTTON HEAD
92017-08035-00
 $6.49
Unavailable
#15 COLLAR
90387-0813V-00
 $4.45
Unavailable
#16 BOLT, FLANGE
95817-08160-00
 $13.99
Available to order.
Add to View Price
#17 NUT,FLANGE (JN5)
95707-08500-00
 $2.95
Available to order.
Add to View Price
#18 BRACKT, TANK FITTING
5JW-21348-00-00
 $107.99
Unavailable
#19 HOOK TANK FITTING
5JW-2411L-00-00
 $7.49
Available to order.
Add to View Price
#20 BOLT, WITH WASHER
90119-06172-00
 $9.49
Available to order.
Add to View Price
#21 DAMPER, LOCATING 3
4SV-24183-00-00
 $24.99
Available to order.
Add to View Price
#22 DAMPER, PLATE 3
5JW-2414K-00-00
 $9.49
Available to order.
Add to View Price
#23 DAMPER, PLATE 4
5JW-2414N-00-00
 $5.49
Available to order.
Add to View Price
#24 DAMPER, PLATE 5
5JW-2414P-00-00
 $5.49
Available to order.
Add to View Price
#25 DAMPER, PLATE 2
5JW-2414J-00-00
 $20.99
Available to order.
Add to View Price
#26 DAMPER, PLATE 4
5JW-2414N-10-00
 $11.99
Available to order.
Add to View Price
#27 DAMPER, PLATE 5
5JW-2414P-10-00
 $5.49
Available to order.
Add to View Price
#28 DAMPER, PLATE 6
5JW-2414R-00-00
 $22.99
Available to order.
Add to View Price
#29 BRACKET, FUEL PUMP
5PW-24491-00-00
 $94.99
Unavailable
#30 O-RING
5JW-24486-00-00
Superseded by 19B-24486-01-00
 $41.99
Available to order.
Add to View Price
#31 PROTECTOR, PIPE
5JW-24327-00-00
 $20.99
Unavailable
#32 SCREW, BIND
98907-05008-00
 $2.05
Available to order.
Add to View Price
#33 BOLT, BUTTON HEAD
92017-05014-00
 $4.00
Available to order.
Add to View Price
#34 CAP ASSY
5JJ-24602-00-00
Superseded by 39P-24602-00-00
 $247.99
Available to order.
Add to View Price
#35 BOLT, HEXAGON SOCKET HEAD
90110-05112-00
 $8.49
Available to order.
Add to View Price
#36 BOLT, HEX. SOCKET HEAD
91317-05010-00
 $2.40
Unavailable
#37 HOSE
90445-11018-00
 $13.99
Unavailable
#37 HOSE
90445-11035-00
 $20.99
Unavailable
#38 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Available to order.
Add to View Price
#39 HOSE
90445-11029-00
 $13.49
Unavailable
#40 JOINT
4XY-14568-00-00
 $6.49
Available to order.
Add to View Price
#41 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Unavailable
#42 HOSE
90445-11018-00
 $13.99
Unavailable
#42 PIPE 3
5JW-24313-10-00
 $68.99
Unavailable
#43 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Unavailable
#44 HOLDER
5JW-2419A-00-00
Superseded by 5JW-2419A-01-00
 $9.49
Unavailable
#45 COVER, SIDE 1
5JW-24129-00-00
 $38.99
Available to order.
Add to View Price
#46 COVER, SIDE 2
5JW-24139-00-00
 $33.99
Available to order.
Add to View Price
#47 NUT
90179-05523-00
 $7.49
Available to order.
Add to View Price
#48 SCREW
90149-05299-00
 $3.90
Available to order.
Add to View Price
#49 GROMMET
90480-13567-00
 $4.70
Available to order.
Add to View Price
#50 RIVET
90269-07077-00
 $7.49
Available to order.
Add to View Price
#51 PLUG
90338-08009-00
 $6.49
Available to order.
Add to View Price
#52 DAMPER
5DM-28371-00-00
 $7.49
Available to order.
Add to View Price
#53 DAMPER
15A-21717-00-00
 $6.49
Available to order.
Add to View Price
#54 FUEL PUMP COMP.
5JW-13907-10-00
Superseded by 5JW-13907-15-00
 $580.99
Unavailable
#55 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Unavailable
#56 CLAMP 1
5JW-24135-00-00
 $64.99
Unavailable
#57 BOLT, FLANGE
95027-06012-00
 $3.65
Available to order.
Add to View Price
#58 ROLL OVER VALVE ASSY
5RB-24180-00-00
 $114.99
Available to order.
Add to View Price
#59 CLAMP
90461-15100-00
Superseded by 90464-15014-00
 $3.10
Available to order.
Add to View Price
#60 SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
 $4.45
Available to order.
Add to View Price
#61 WASHER, PLATE
92907-05600-00
 $3.55
Available to order.
Add to View Price
#62 HOSE (L120)
90445-11763-00
Superseded by 90445-113E8-00
 $3.40
Available to order.
Add to View Price
#63 CLIP
90467-10008-00
Superseded by 90467-100A1-00
 $6.49
Unavailable
#64 CANISTER ASSY
5JW-24170-00-00
 $397.79
Unavailable
#65 BRACKET, CANISTOR
5VS-2419F-00-00
 $219.99
Unavailable
#66 BOLT, FLANGE
90105-060A6-00
Superseded by 95817-06016-00
 $2.60
Available to order.
Add to View Price
#67 BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
 $4.45
Available to order.
Add to View Price
#68 HOSE
90445-13005-00
 $8.99
Unavailable
#69 CLIP
90467-12052-00
 $8.49
Available to order.
Add to View Price
