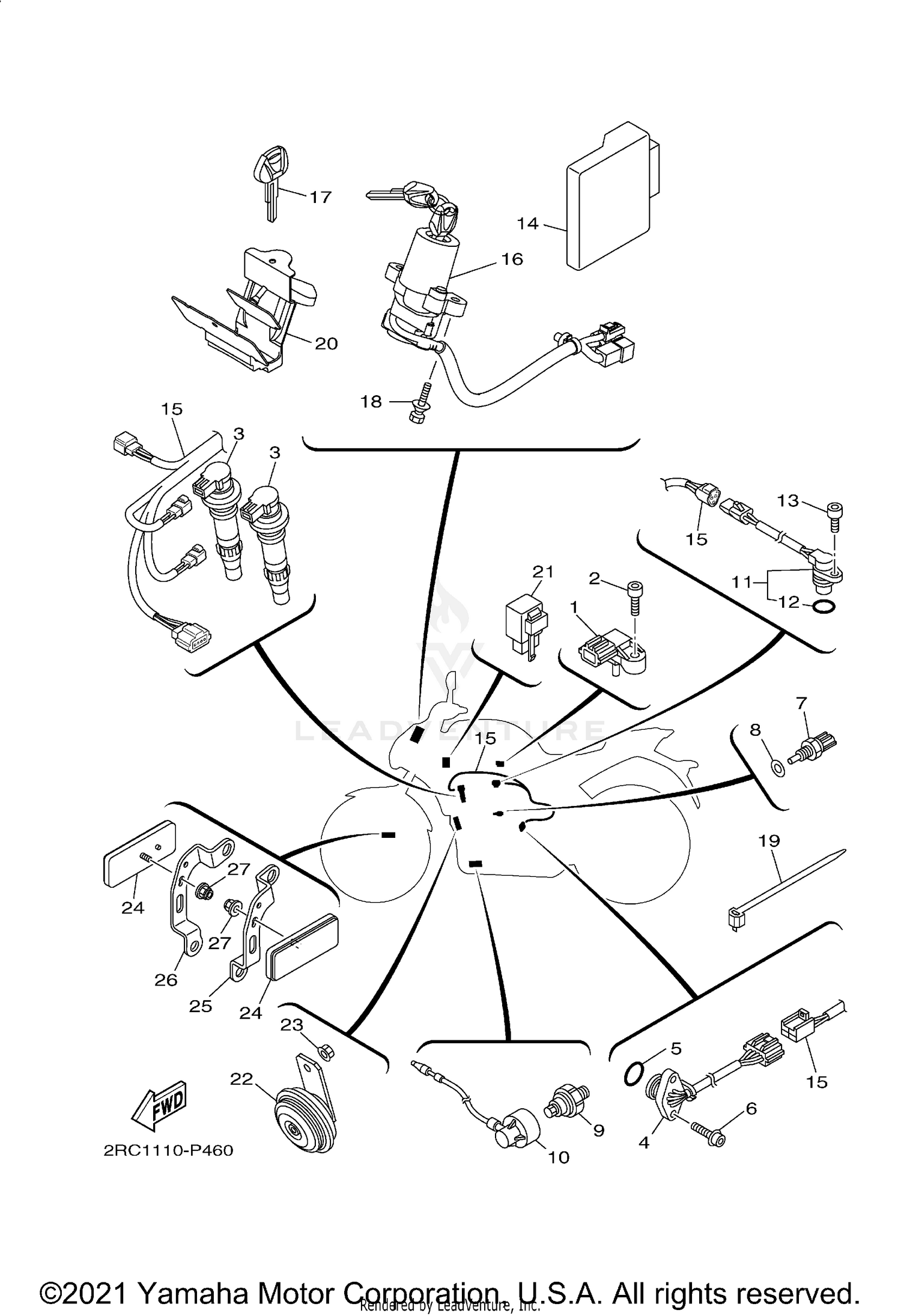

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SENSOR, PRESSURE
1WS-82380-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
1WS-82310-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
1WS-82540-00-00
Superseded by 1WS-82540-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL PRESSURE SWITCH ASSY
1WS-82504-00-00
Superseded by 1WS-82504-01-00
|
$67.99 | ||
|
Unavailable |
|||
|
#10
LEAD WIRE ASSY
1WS-81315-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR SPEED
1WS-83755-00-00
Superseded by 1WS-83755-01-00
|
$108.99 | ||
|
Unavailable |
|||
|
#12
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE CONTROL UNIT ASSY
2RC-8591A-00-00
Superseded by 2RC-8591A-01-00
|
$487.99 | ||
|
Unavailable |
|||
|
#15
WIRE, SUB LEAD
1WS-82309-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAIN SWITCH STEERING LOCK
2RC-82501-00-00
Superseded by 2RC-82501-01-00
|
$151.99 | ||
|
Unavailable |
|||
|
#17
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, SWITCH CORD
90465-13M24-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CONNECTER
2RC-81662-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FLASHER RELAY ASSY
5C4-83350-00-00
Superseded by 5C4-83350-01-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HORN
1WS-83371-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, REFLECTOR 1
1WS-85112-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, REFLECTOR 2
1WS-85122-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, WITH WASHER
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
