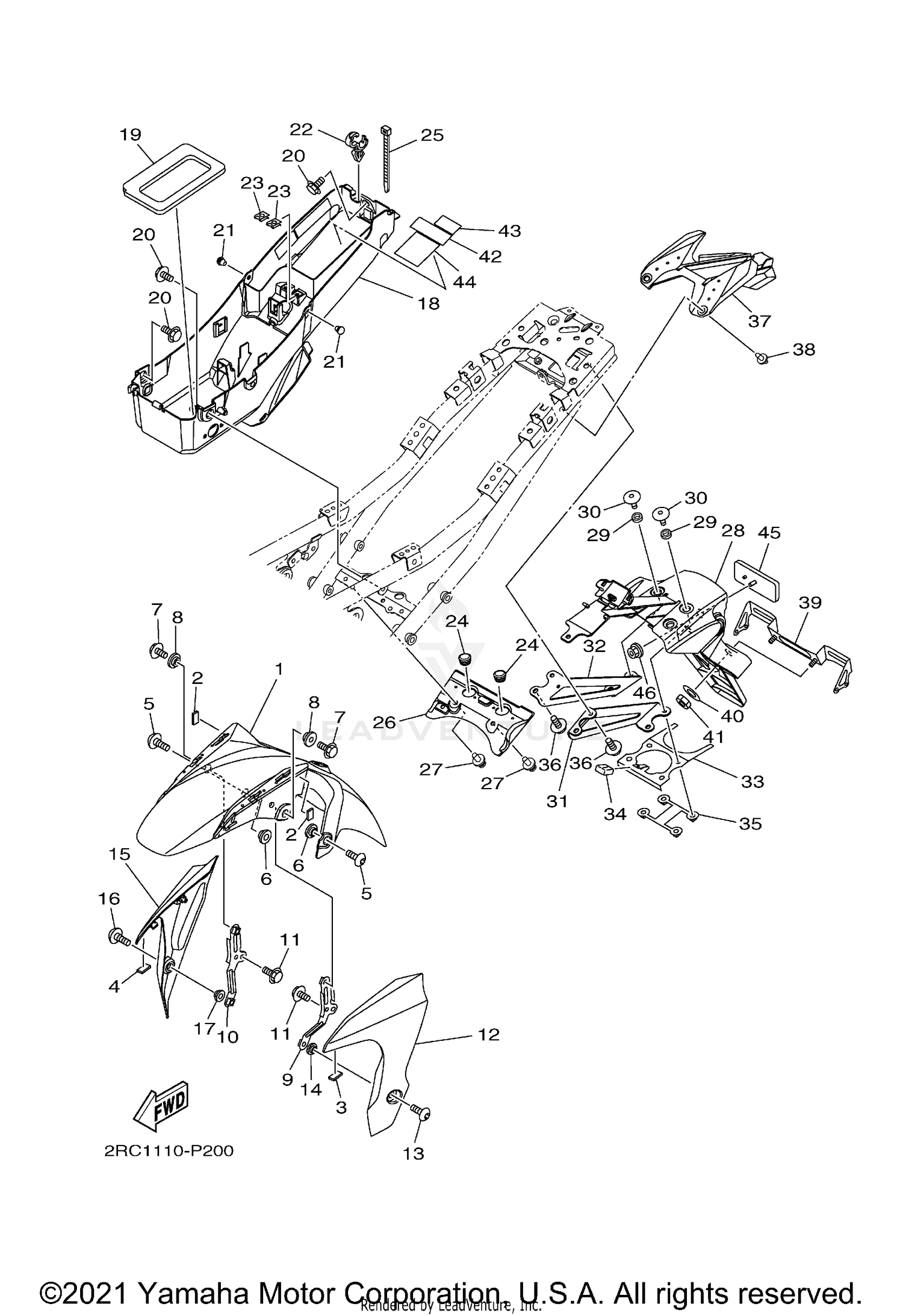

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1WS-21511-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE
90520-01002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, PLATE
90520-01002-00
|
$7.49 | ||
|
Unavailable |
|||
|
#4
DAMPER, PLATE
90520-01002-00
|
$7.49 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90111-06151-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-08079-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06241-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-06066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FENDER
1WS-21512-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FENDER
1WS-21612-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, FENDER 1
1WS-21513-00-P1
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, FENDER 1
1WS-21513-00-P2
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, FENDER 1
1WS-21513-00-P4
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06105-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06107-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FENDER 2
1WS-21514-00-P4
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FENDER 2
1WS-21514-00-P2
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FENDER 2
1WS-21514-00-P1
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06105-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-06107-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BOX, BATTERY 1
1WS-8212B-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER 2
1WS-21639-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-06202-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-18002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, spring
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-14100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUARD, FLAP
1WS-21642-00-00
Superseded by 1WS-21642-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-06002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GUARD, MUD
1WS-21629-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. SOCKET BUTTON
90111-06089-00
Superseded by 90111-06061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STAY 1
1WS-2164F-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
STAY 2
1WS-2164G-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, PLATE
1WS-21682-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER
1WS-21746-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET 6
1WS-2161G-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT,WASHER BASED
90105-06205-00
Superseded by 90105-06206-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, REAR FENDER 1
1WS-2163A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
RIVET
90269-07008-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET, LICENSE
2RC-84751-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
LABEL, CAUTION
3JJ-28446-A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
LABEL, CAUTION
3SA-24877-A0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#44
PLATE, ROUTING 2
4B5-21686-00-00
Superseded by 4B5-21686-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#45
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
