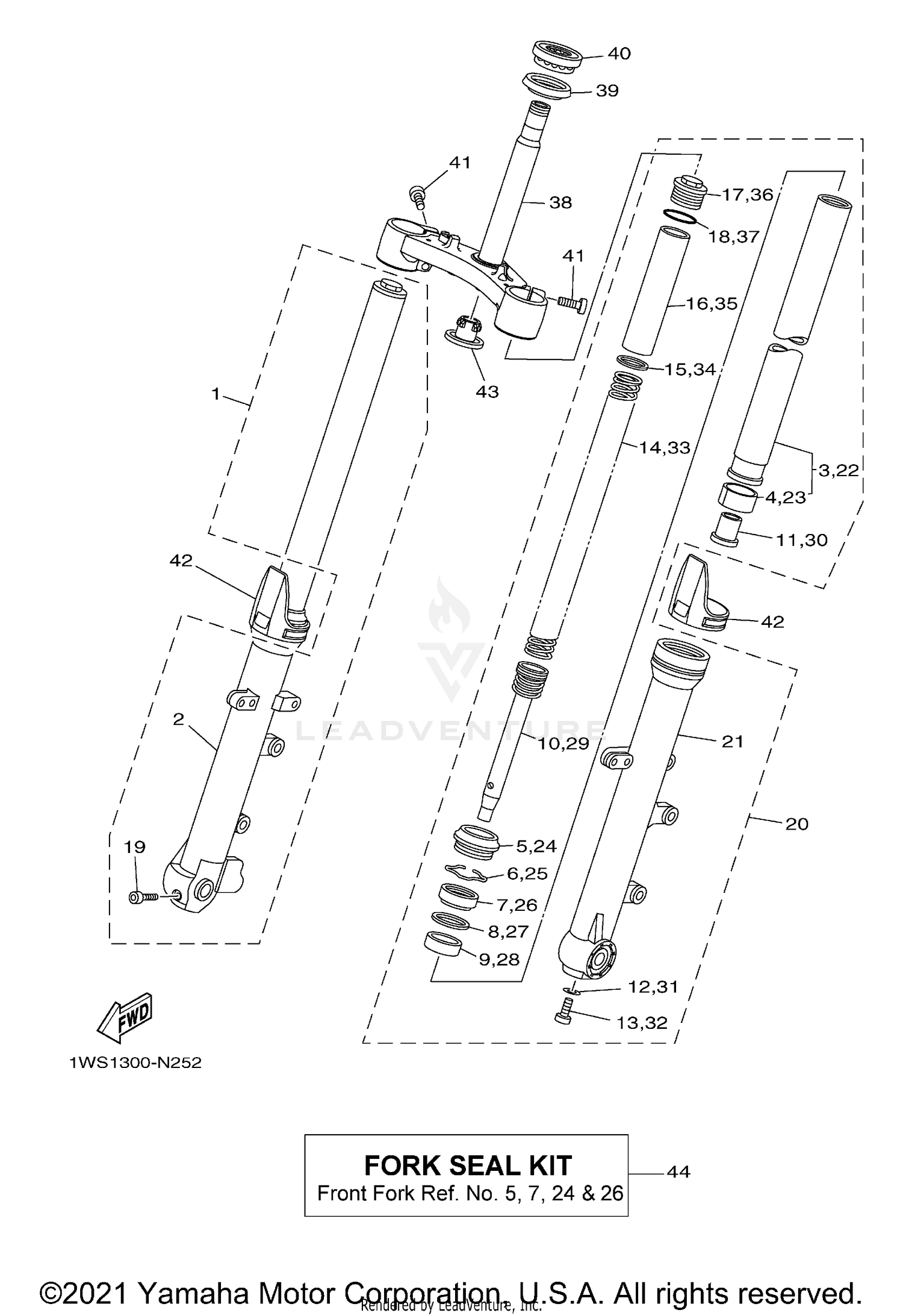

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (R.H
1WS-23103-00-00
Superseded by 1WS-23103-01-00
|
$438.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER 2
1WS-23136-00-00
Superseded by 1WS-23136-01-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP. 1
1WS-23110-00-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5BN-23171-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
1WS-23170-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, TAPER
4YR-23173-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
1WS-23141-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING UPPER
3EN-23149-50-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
3FW-23118-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
1D0-23111-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRONT FORK ASSY (L
1WS-23102-00-00
Superseded by 1WS-23102-03-00
|
$436.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, OUTER (L.H)
1WS-23126-00-00
Superseded by 1WS-23126-01-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
INNER TUBE COMP. 1
1WS-23110-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#23
PISTON, FRONT FORK
5BN-23171-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#24
SEAL, DUST
4EB-23144-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#25
CLIP, OIL SEAL
26H-23156-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
OIL SEAL
4EB-23145-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#27
WASHER, OIL SEAL
36Y-23146-10-00
|
$25.99 | ||
|
Unavailable |
|||
|
#28
METAL, SLIDE 1
4FM-23125-40-00
|
$31.99 | ||
|
Unavailable |
|||
|
#29
CYLINDER COMP., FRONT FORK
1WS-23170-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#30
SPINDLE, TAPER
4YR-23173-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#31
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
SPRING, FRONT FORK
1WS-23141-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#34
WASHER, SPRING UPPER
3EN-23149-50-00
|
$3.40 | ||
|
Unavailable |
|||
|
#35
SPACER
3FW-23118-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#36
BOLT, CAP
1D0-23111-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#37
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
UNDER BRACKET COMP.
1WS-23340-00-00
|
$350.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER
1WS-2331G-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, LOWER 1
4KM-23123-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
FORK SEAL KIT
4EB-W003B-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
