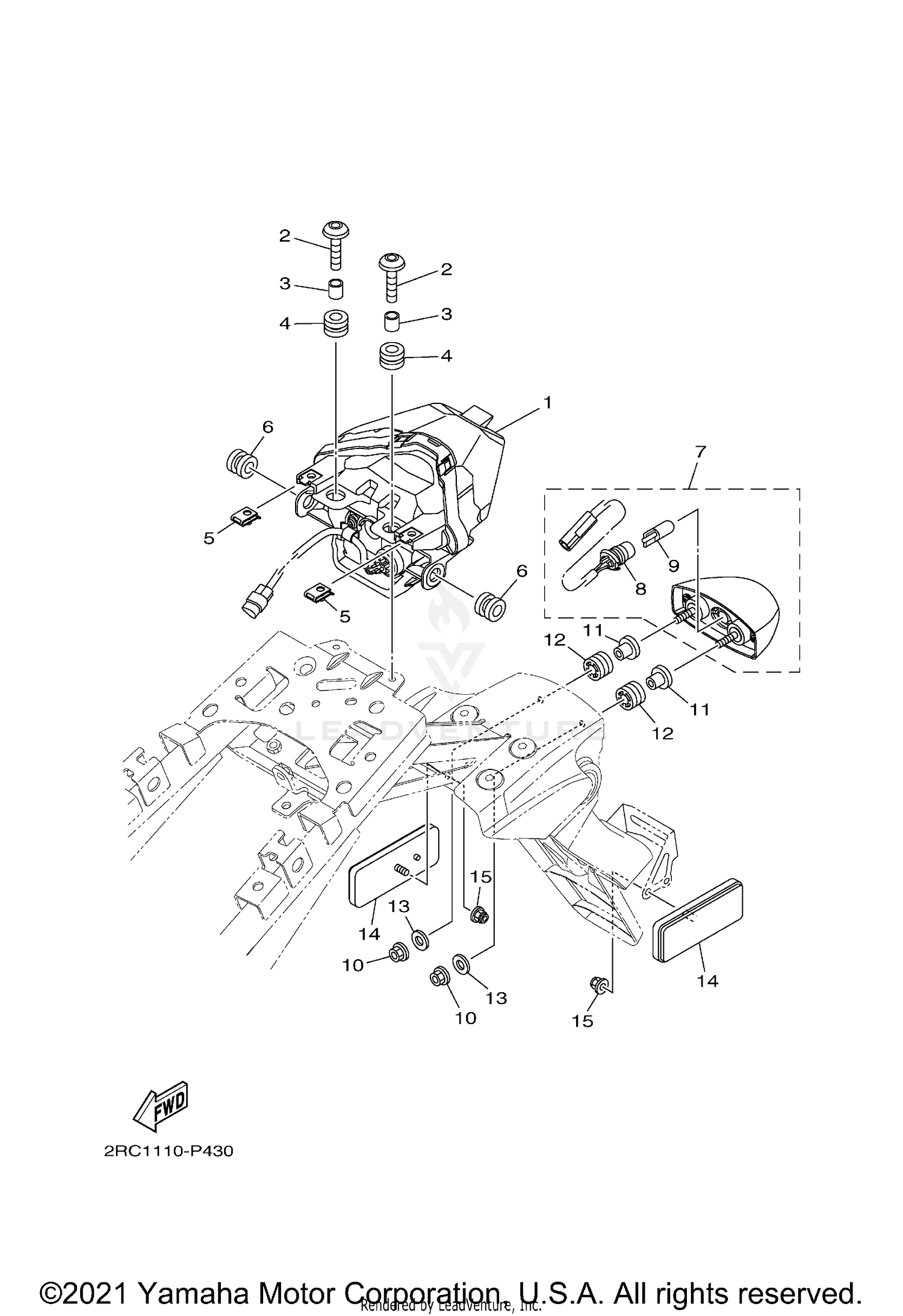

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
1WS-84710-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-067V1-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-13001-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-10003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LICENSE LIGHT ASSY
1WS-84740-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CORD, LICENSE LIGHT
1WS-84547-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V-5W)
1TP-84347-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-12023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WITH WASHER
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
